STDatasheet (PDF)

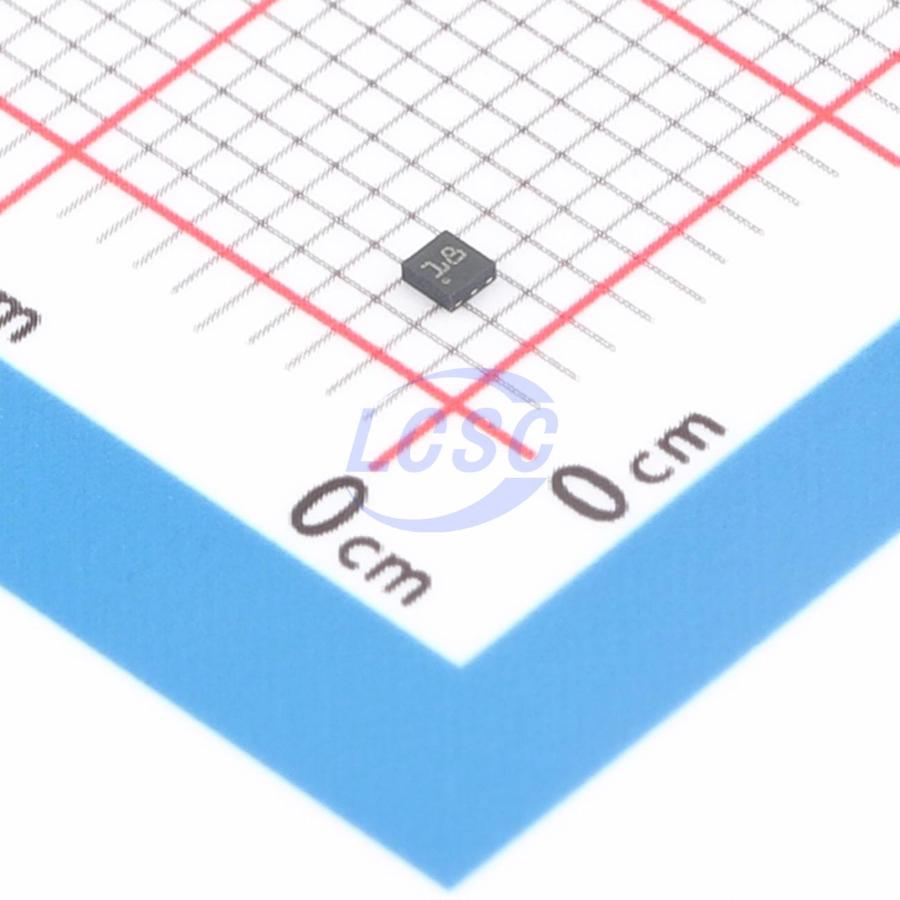

LDK120PU18R
1.8V Positive Fixed DFN-6L(1.2x1.3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-6L(1.2x1.3)ROHS3 CompliantActive
200 mA Low Quiescent Current Ultra-Low Noise LDO
- Manufacturer
- ST
- Manufacturer part #
- LDK120PU18R
- Store part #
- C5267928
- Package / case
- DFN-6L(1.2x1.3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C5267928
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.77 | ₹53.77 |
| 10+ | ₹52.54 | ₹525.40 |
| 30+ | ₹51.73 | ₹1,551.90 |
| 100+ | ₹50.91 | ₹5,091.00 |
1 × ₹53.77
₹53.77
excl. GST
₹63.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LDK120PU18R
₹53.77 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 100uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 200mA
- Output Type
- Fixed
- Features
- Enable control;Noise bypass terminal;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
The LDK120 low drop voltage regulator provides 200 mA of maximum current from an input supply voltage in the range of 1.9 V to 5.5 V, with a typical dropout voltage of 100 mV. It is stabilized with a ceramic capacitor on the output. The very low drop voltage, low quiescent current and low noise features make it suitable for low power battery-powered applications. An enable logic control function puts the LDK120 in shutdown mode allowing a total current consumption lower than 1 μA. The device also includes a short-circuit constant current limiting and thermal protection.
Applications
- Mobile phones
- Personal digital assistants (PDAs)
- Cordless phones and similar battery-powered systems
- Digital still cameras
Key features
- Input voltage from 1.9 to 5.5 V
- Very low dropout voltage (100 mV typ. at 100 mA load)
- Low quiescent current (max. 100 μA, 1 μA in OFF mode)
- Very low noise
- Output voltage tolerance: ± 2.0% @ 25 °C
- 200 mA guaranteed output current
- Wide range of fixed output voltages available on request: from 0.8 V to 3.5 V with 100 mV step
- Adjustable version: from 0.8 V to VIN - Vε drop
- Logic-controlled electronic shutdown
- Compatible with ceramic capacitor COUT = 1 μF
- Internal current and thermal limit
- Available in SOT23-5L, SOT323-5L and DFN6 (1.2×1.3 mm) packages
- Temperature range: -40 °C to 125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LDK130PU18R#C5267909ST · DFN-6(1.2x1.3) | ST | DFN-6(1.2x1.3) | 10 | ₹59.50 · 10 in stock | View |
