STDatasheet (PDF)

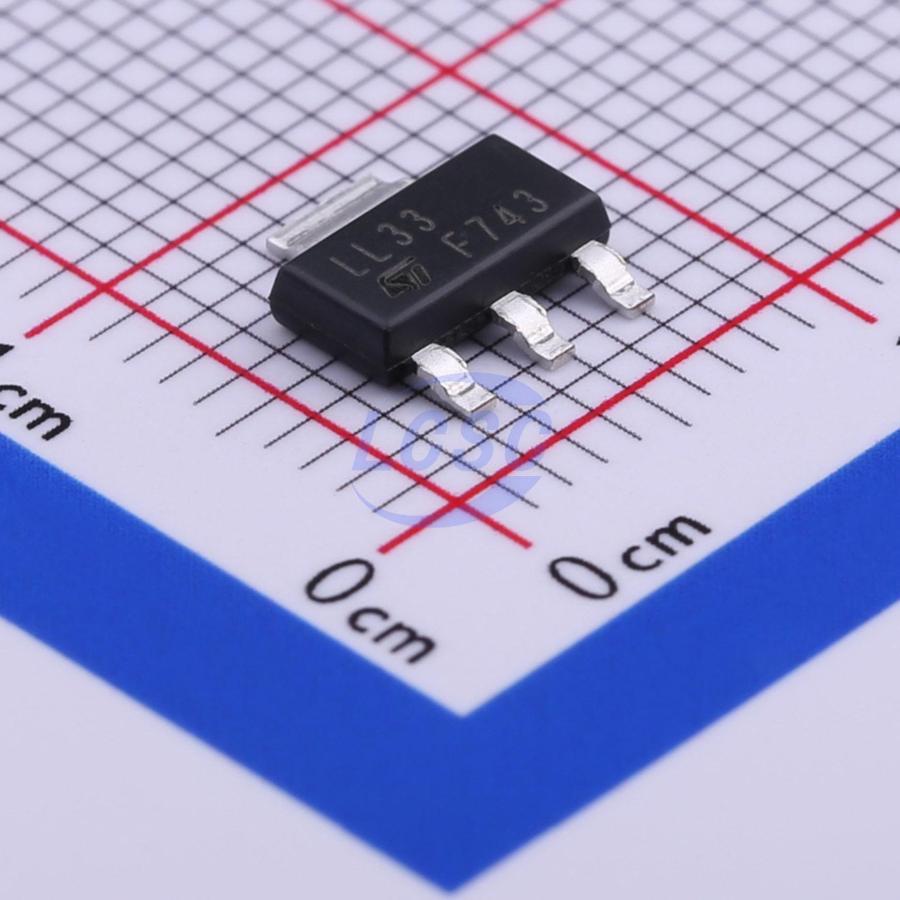

LDL1117S33R
3.3V Positive Fixed SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
PopularSOT-223-4ROHS3 CompliantActive
1.2 A high PSRR low-dropout linear voltage regulator
- Manufacturer
- ST
- Manufacturer part #
- LDL1117S33R
- Store part #
- C435835
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,387 in stock
#C435835
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.60 | ₹58.60 |
| 10+ | ₹49.21 | ₹492.10 |
| 30+ | ₹42.55 | ₹1,276.50 |
| 100+ | ₹37.14 | ₹3,714.00 |
| 500+ | ₹35.34 | ₹17,670.00 |
| 1,000+ | ₹34.44 | ₹34,440.00 |
1 × ₹58.60
₹58.60
excl. GST
₹69.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LDL1117S33R
₹58.60 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 500uA
- Output Configuration
- Positive
- Output Current
- 1.2A
- Operating Voltage
- 18V
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown;Input under-voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
The LDL1117 provides 1.2 A of maximum current with an input voltage range from 2.5 V to 18 V, and a typical dropout voltage of 350 mV@1.2 A. The high power supply rejection ratio of 87 dB at 120 Hz, rolling down to more than 40 dB at 100 kHz, makes the LDL1117 suitable for direct regulations in SMPS and secondary linear regulations in DC - DC converters. This device includes current limit, SOA and thermal protections.
Applications
- Consumer
- Industrial
- SMPS
- Motherboard P.O.L. DC - DC post - regulation
Key features
- Input voltage from 2.5 V to 18 V
- 20 V AMR
- Available on fixed output voltages: 1.2 V (1.185 V), 1.5 V, 1.8 V, 2.5 V, 3 V, 3.3 V, 5.0 V (other options are available on request)
- Guaranteed output current 1.2 A
- Typical dropout 350 mV@1.2 A
- Internal thermal, current and power limitation
- High PSRR 87 dB@120 Hz
- Operating temperature range: -40 °C to 125 °C package SOT223
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LT1963AEST-3.3#PBF#C117200ADI · SOT-223 | ADI | SOT-223 | 104 | ₹772.01 · 104 in stock | View |
 | TL1963A-33DCYR#C181262TI · SOT-223 | TI | SOT-223 | 783 | ₹196.36 · 783 in stock | View |
 | LT1963AEST-3.3#TRPBF#C459918ADI · SOT-223-3 | ADI | SOT-223-3 | 1,768 | ₹821.49 · 1,768 in stock | View |
| LT1963EST-3.3#PBF#C579955ADI · SOT-223-3 | ADI | SOT-223-3 | 3 | ₹1,002.76 · 3 in stock | View | |
| LT1963EST-3.3#TRPBF#C665758ADI · SOT-223-4 | ADI | SOT-223-4 | 11 | ₹958.10 · 11 in stock | View | |
