STDatasheet (PDF)

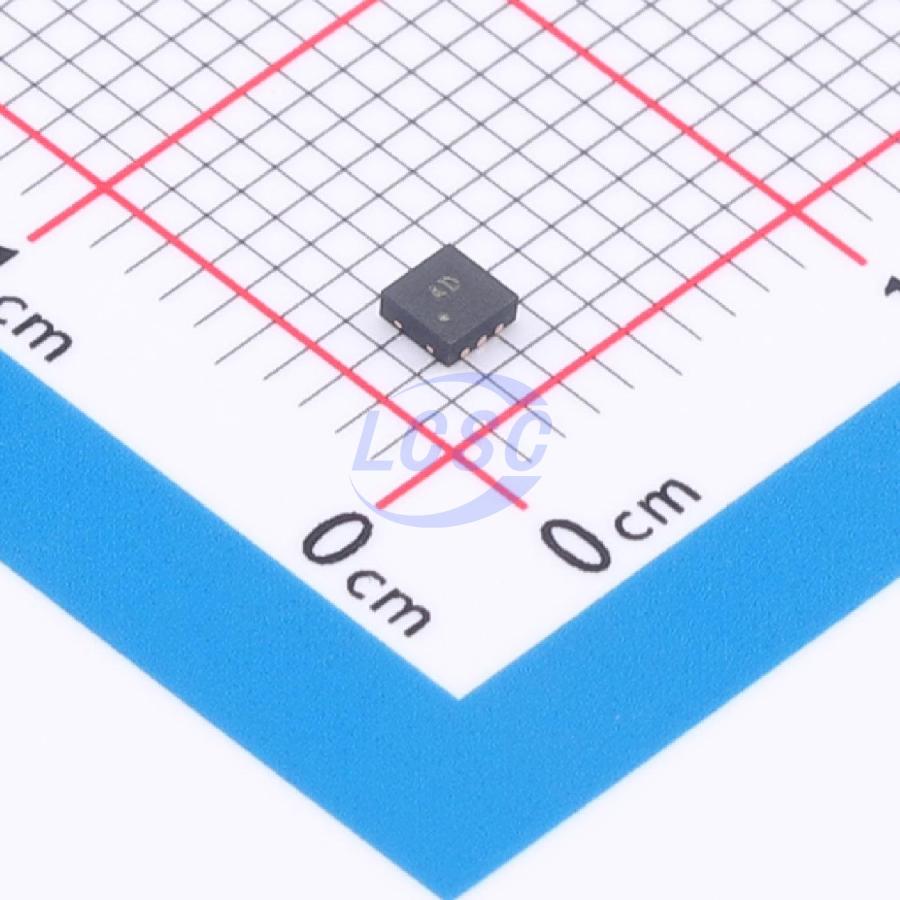

LDL112PUR
800mV~5V Positive Adjustable DFN-6(2x2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-6(2x2)ROHS3 CompliantActive
1.2 A Low Quiescent Current LDO with Reverse Current Protection
- Manufacturer
- ST
- Manufacturer part #
- LDL112PUR
- Store part #
- C2970192
- Package / case
- DFN-6(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
89 in stock
#C2970192
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹144.11 | ₹144.11 |
| 10+ | ₹120.39 | ₹1,203.90 |
| 30+ | ₹107.11 | ₹3,213.30 |
| 100+ | ₹92.31 | ₹9,231.00 |
| 500+ | ₹85.77 | ₹42,885.00 |
| 1,000+ | ₹82.73 | ₹82,730.00 |
1 × ₹144.11
₹144.11
excl. GST
₹170.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LDL112PUR
₹144.11 for 1 + GST
Specifications
- Output Voltage
- 800mV~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 35uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 1.2A
- Features
- Enable control;Reverse-polarity current protection;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
The LDL112 is a low-dropout linear regulator, which can provide a maximum current of 1.2 A, with a typical dropout voltage of 300 mV. It is stabilized with a ceramic capacitor on the output. The very low drop voltage, low quiescent current and reverse current protection features make it suitable for low power battery-powered applications. The enable logic control function puts the LDL112 in shutdown mode allowing a total current consumption lower than 1 μA. The device is equipped with current limit and thermal protection.
Applications
- Consumer
- Computer
- Battery-powered systems
- Low voltage point-of-load
- USB-powered devices
Key features
- Input voltage from 1.6 to 5.5 V
- Very low-dropout voltage 300 mV typ. at 1 A load
- Low quiescent current 35 μA typ. at no-load, 1 μA max. in off mode
- Output voltage tolerance: ± 2.0% at 25 °C
- 1.2 A guaranteed output current
- Wide range of output voltages available on request: 0.8 to 5 V with 50 mV step and adjustable
- Logic-controlled electronic shutdown
- Compatible with ceramic capacitor C_OUT = 1 μF
- Internal current and thermal limit
- Available in DFN6 (2×2), DFN6 (3×3) mm, SO8-batwing and PPAK packages
- Temperature range: -40 °C to 125 °C
- Reverse current protection
- Output discharge function (optional)
