STDatasheet (PDF)

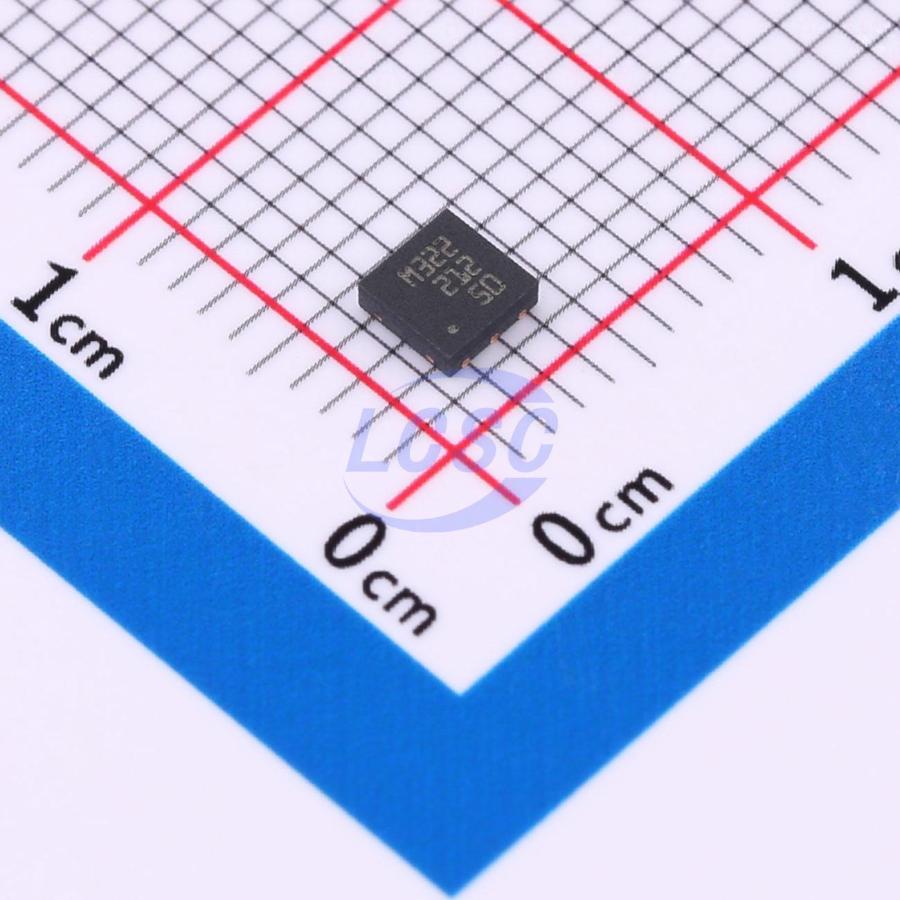

LDL212PU50R
5V Positive Fixed DFN-6-EP(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-6-EP(3x3)ROHS3 CompliantActive
1.2A Low Dropout Linear Regulator IC
- Manufacturer
- ST
- Manufacturer part #
- LDL212PU50R
- Store part #
- C2761339
- Package / case
- DFN-6-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
425 in stock
#C2761339
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.88 | ₹134.88 |
| 10+ | ₹110.99 | ₹1,109.90 |
| 30+ | ₹97.74 | ₹2,932.20 |
| 100+ | ₹82.98 | ₹8,298.00 |
| 500+ | ₹76.24 | ₹38,120.00 |
| 1,000+ | ₹73.20 | ₹73,200.00 |
1 × ₹134.88
₹134.88
excl. GST
₹159.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LDL212PU50R
₹134.88 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 250uA
- Output Configuration
- Positive
- Output Current
- 1.2A
- Operating Voltage
- 18V
- Output Type
- Fixed
- Features
- Enable control;Input under-voltage protection;Thermal shutdown;Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.147 g
Overview
The LDL212 provides 1.2 A of maximum current from an input voltage range from 2.5 V to 18V, with a typical dropout voltage of 350 mV at 1.2A. The high power supply rejection ratio of 87 dB at 120Hz and more than 40 dB at 100kHz makes the LDL212 suitable for direct regulation in SMPS and secondary linear regulation in DC - DC converters. The LDL212 goes to shutdown mode due to the enable logic control function, reducing the total current consumption. The device also includes the current limit, SOA and thermal protections.
Applications
- Consumer
- Industrial
- SMPS
- Point - of - load
- DC - DC post - regulation
Key features
- Input voltage from 2.5V to 18V
- Any fixed output voltages, from 1.2V to 12V in 100 mV steps (from 1.2V to 6.6V in 50mV steps) available on request
- Adjustable version from 1.18V to VIN - VDROP(MAX)
- Guaranteed output current 1.2 A
- Typical dropout 350 mV at 1.2A
- Undervoltage lockout
- Enable function
- Internal thermal, current and power limitation
- High PSRR: 87 dB at 120 Hz, 75 dB at 1 kHz
- Operating temperature range: - 40°C to 125°C
- Packages SO - 8 batwing plastic micropackage, DFN6 (3x3) and DFN6 (2x2)
