STDatasheet (PDF)

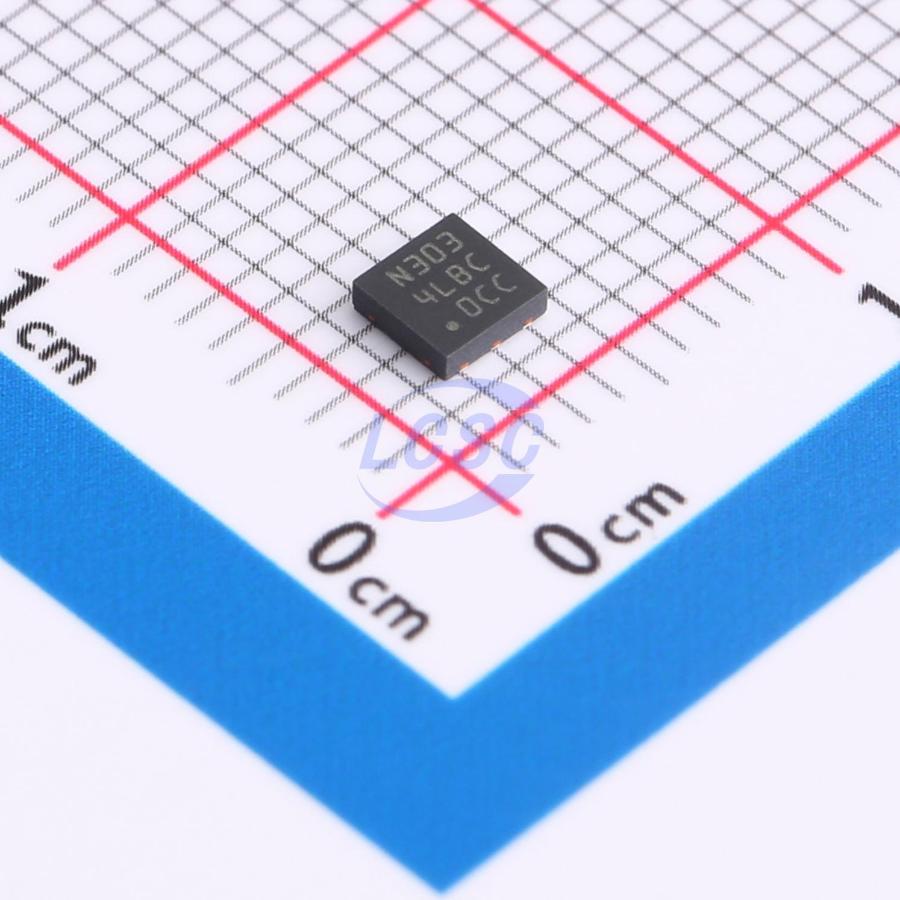

LDO40LPU33RY
3.3V Positive Fixed DFN-6(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-6(3x3)ROHS3 CompliantActive
400 mA, 38 V low-dropout regulator, 45 uA quiescent current
- Manufacturer
- ST
- Manufacturer part #
- LDO40LPU33RY
- Store part #
- C2970462
- Package / case
- DFN-6(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
58 in stock
#C2970462
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹437.34 | ₹437.34 |
| 10+ | ₹372.90 | ₹3,729.00 |
| 30+ | ₹332.63 | ₹9,978.90 |
| 100+ | ₹291.48 | ₹29,148.00 |
| 500+ | ₹272.76 | ₹1,36,380.00 |
| 1,000+ | ₹264.72 | ₹2,64,720.00 |
1 × ₹437.34
₹437.34
excl. GST
₹516.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LDO40LPU33RY
₹437.34 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 45uA
- Output Configuration
- Positive
- Operating Voltage
- 38V
- Output Current
- 400mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.056 g
Overview
The LDO40L is a 400 mA LDO regulator, designed for being used in severe automotive environments. Low quiescent current makes it suitable for applications permanently connected to battery. This feature is especially critical when electronic modules remain in active mode when ignition is off. The LDO40L embeds protection functions, such as: current limit and thermal shutdown. The extended input voltage range, low drop voltage and low quiescent current features make it suitable also for low power industrial and consumer applications.
Applications
- Automotive applications
- Body control modules
- Instruments and clusters
- Automotive LED lighting
Key features
- AEC-Q100 qualified
- Low quiescent current: typ. 45 μA at no load
- Wide input voltage operating range up to 38 V
- Low startup voltage: 3.5 V
- Output current up to 400 mA
- Output voltage options: Adj from 2.5 V and fixed, 3.0, 3.3, 5.0 and 8.5 V
- Output voltage accuracy: ± 1% typ. @ 25 °C ± 3% (including line, load and temperature variation)
- Ultra low-dropout: 36 mV @ 100 mA load current 140 mV @ 400 mA load current
- High PSRR: 70 dB @ 1 kHz
- Very low noise: 20 μV RMS/V OUT
- Protection features: current limitation, thermal shutdown
- -40 °C to +125 °C operating temperature range
- Package: DFN6 (3×3) (wettable flanks)
