STDatasheet (PDF)

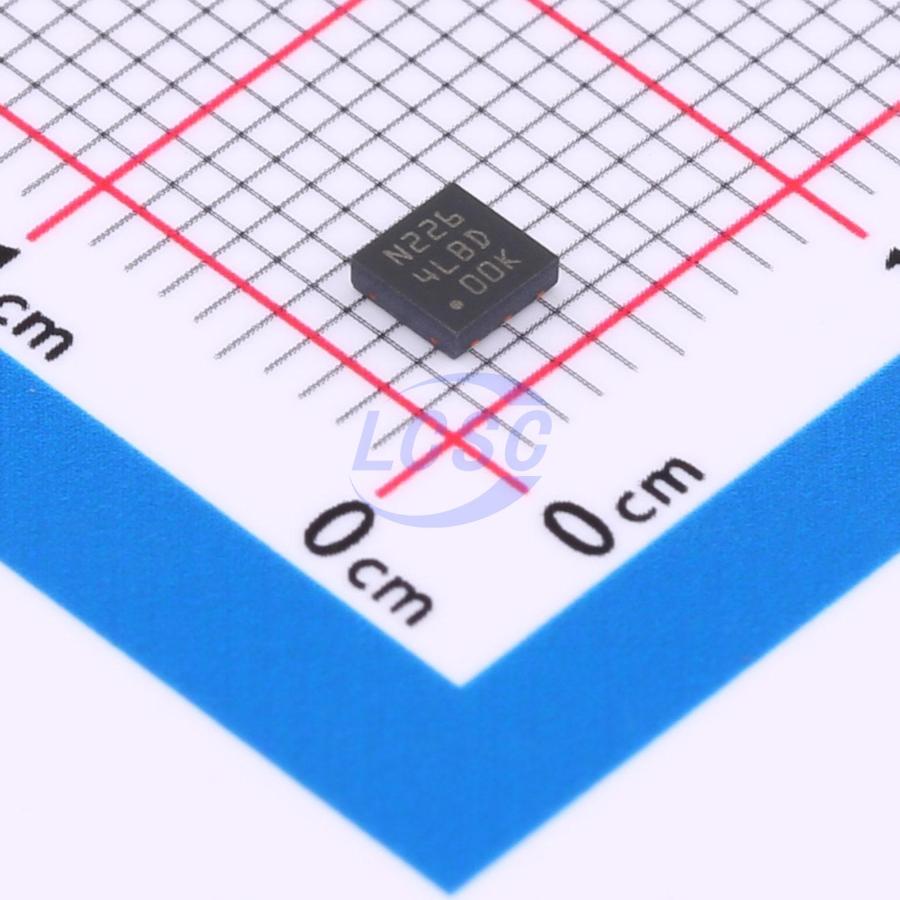

LDO40LPU50RY
Linear Voltage Regulator IC Positive Fixed 1 Output 400mA DFN-6(3x3)
DFN-6(3x3)ROHS3 CompliantActive
400 mA, 38 V low-dropout regulator, 45 uA quiescent current
- Manufacturer
- ST
- Manufacturer part #
- LDO40LPU50RY
- Store part #
- C2970098
- Package / case
- DFN-6(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C2970098
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹335.08 | ₹335.08 |
| 10+ | ₹327.67 | ₹3,276.70 |
| 30+ | ₹322.65 | ₹9,679.50 |
| 100+ | ₹317.85 | ₹31,785.00 |
1 × ₹335.08
₹335.08
excl. GST
₹395.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LDO40LPU50RY
₹335.08 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 45uA
- Output Configuration
- Positive
- Operating Voltage
- 38V
- Output Current
- 400mA
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
LDO40L is a 400mA low-dropout regulator designed for demanding automotive environments. Its low quiescent current makes it well-suited for battery-connected applications, a feature particularly critical in scenarios where electronic modules remain active after ignition-off. The LDO40L integrates protection features such as current limiting and thermal shutdown. The extended input voltage range, low dropout, and low quiescent current characteristics also make it suitable for low-power industrial and consumer applications.
Applications
- Automotive applications
- Body control modules
- Instrument clusters
- Automotive LED lighting
- Low-power industrial applications
- Low-power consumer applications
Key features
- AEC-Q100 certified
- Low quiescent current: 45μA typical at no load
- Wide input voltage operating range up to 38V
- Low startup voltage: 3.5V
- Output current up to 400mA
- Output voltage options: adjustable version from 2.5V; fixed versions at 3.0V, 3.3V, 5.0V, and 8.5V
- Output voltage accuracy: ±1% typical at 25℃; ±3% including line, load, and temperature variation
- Ultra-low dropout: 36mV at 100mA load current, 140mV at 400mA load current
- High PSRR: 70dB at 1kHz
- Ultra-low noise: 20μVRMS/VOUT
- Protection features: overcurrent limiting, thermal shutdown
- Operating temperature range: -40℃ to +125℃
- Package: DFN6 (3x3) with wettable flanks
