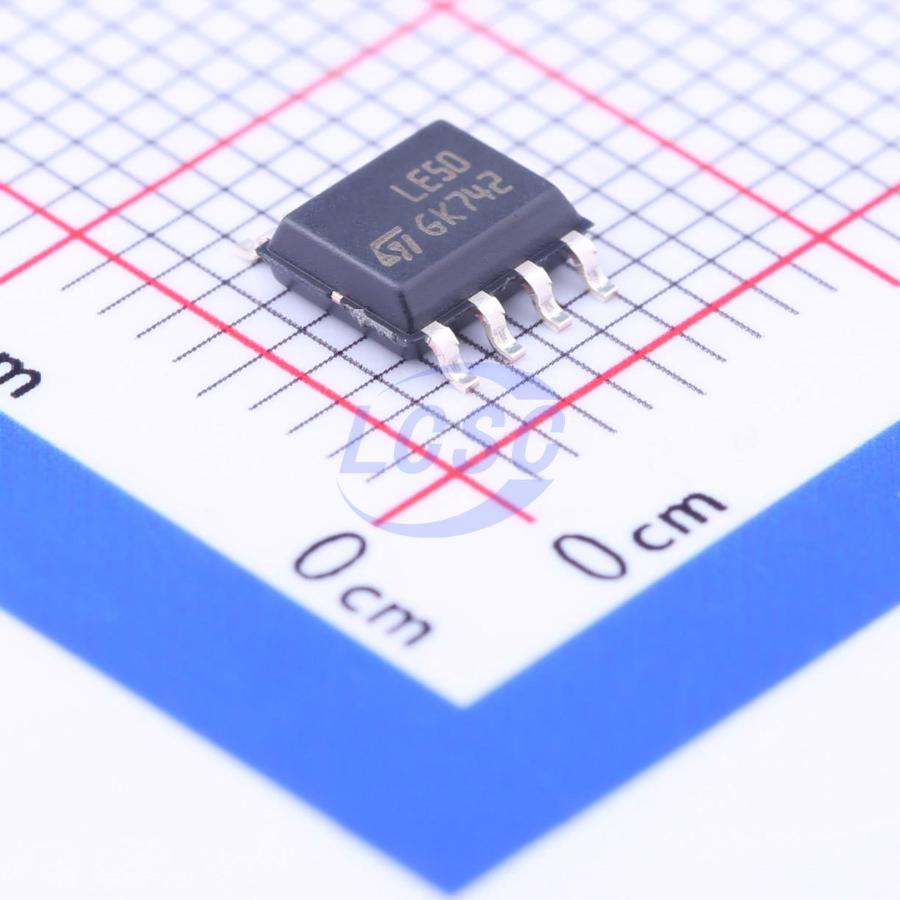

LE50CD-TR
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOIC-8-150mil
SOIC-8-150milROHS3 CompliantActive
Very low-dropout voltage regulator
- Manufacturer
- ST
- Manufacturer part #
- LE50CD-TR
- Store part #
- C222163
- Package / case
- SOIC-8-150mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,144 in stock
#C222163
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.93 | ₹76.93 |
| 10+ | ₹62.59 | ₹625.90 |
| 30+ | ₹55.42 | ₹1,662.60 |
| 100+ | ₹48.25 | ₹4,825.00 |
| 500+ | ₹44.12 | ₹22,060.00 |
| 1,000+ | ₹41.94 | ₹41,940.00 |
1 × ₹76.93
₹76.93
excl. GST
₹90.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LE50CD-TR
₹76.93 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 500uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 100mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.235 g
Overview
The LEXX is a very low-dropout voltage regulator available in SO-8, TO-92 packages and over a wide range of output voltages. The very low-dropout voltage (0.2 V) and low quiescent current make it particularly suitable for low-noise, low-power applications and in batterypowered systems. This device is pin-to-pin compatible with the L78L series. Furthermore, in the 8-pin configuration (SO-8), it uses a shutdown logic control (pin 5, TTL compatible). This means that when the device is used as a local regulator, a part of the board can be put in standby, decreasing the total power consumption. In the three-terminal configuration (TO-92), the device is always in on-state. It requires a 2.2 μF capacitor for stability, reducing the component size and cost.
Key features
- Very low-dropout voltage (0.2 V typ.)
- Very low quiescent current (typ. 50 μA in OFF mode, 0.5 mA in ON mode, no load)
- Output current up to 100 mA
- Output voltages: 3 V, 3.3 V, 4.5 V, 5 V, 8 V
- Internal current and thermal limit
- Small 2.2 μF capacitor for stability
- Available in ±1% (A) or ±2% (C) selection at 25 °C
- Supply voltage rejection: 80 dB (typ.)
- Temperature range: -40 to 125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LE50ABD-TR#C222144ST · SOIC-8-150mil | ST | SOIC-8-150mil | 990 | ₹59.32 · 990 in stock | View |
 | KF50BD-TR#C222151ST · SOIC-8-150mil | ST | SOIC-8-150mil | 2,739 | ₹146.68 · 2,739 in stock | View |
 | L4931CD50-TR#C283394ST · SOIC-8 | ST | SOIC-8 | 2,486 | ₹149.49 · 2,486 in stock | View |
 | L4931ABD50-TR#C124708ST · SO-8 | ST | SO-8 | 1,037 | ₹68.16 · 1,037 in stock | View |
 | TLF4949SJ#C540210Infineon · DSO-8 | Infineon | DSO-8 | 80 | ₹48.38 · 80 in stock | View |
