STDatasheet (PDF)

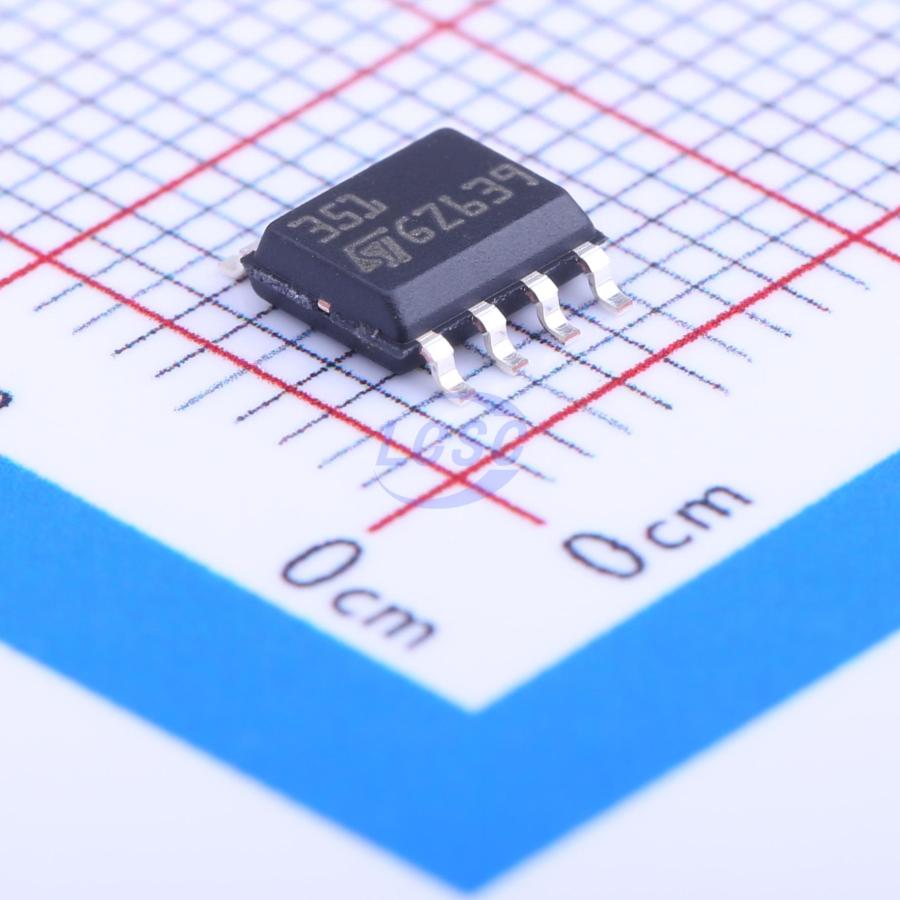

LF351DT
40mA 1 3mV 16V/us 70dB 20pA 3.4mA 4MHz SO-8 Instrumentation, Op Amps, Buffer Amps RoHS
SO-8ROHS3 CompliantActive
Wide bandwidth single JFET operational amplifiers
- Manufacturer
- ST
- Manufacturer part #
- LF351DT
- Store part #
- C91063
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,006 in stock
#C91063
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.28 | ₹107.28 |
| 10+ | ₹90.56 | ₹905.60 |
| 30+ | ₹82.09 | ₹2,462.70 |
| 100+ | ₹73.84 | ₹7,384.00 |
| 500+ | ₹68.85 | ₹34,425.00 |
| 1,000+ | ₹66.24 | ₹66,240.00 |
1 × ₹107.28
₹107.28
excl. GST
₹126.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LF351DT
₹107.28 for 1 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 16V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 20pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 3.4mA
- Gain Bandwidth Product
- 4MHz
- Features
- Built-in compensation;Short-Circuit Protection;Latch-up suppression
- Input Voltage Noise Density
- 15nV/√Hz@1kHz
- Single Supply
- 6V~32V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.235 g
Overview
These circuits are high speed JFET input single operational amplifiers incorporating well matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.
Key features
- Internally adjustable input offset voltage
- Low power consumption
- Wide common-mode (up to VCC+) and differential voltage range
- Low input bias and offset current
- Output short-circuit protection
- High input impedance JFET input stage
- Internal frequency compensation
- Latch up free operation
- High slew rate 16 V/μs (typical)
