TIDatasheet (PDF)

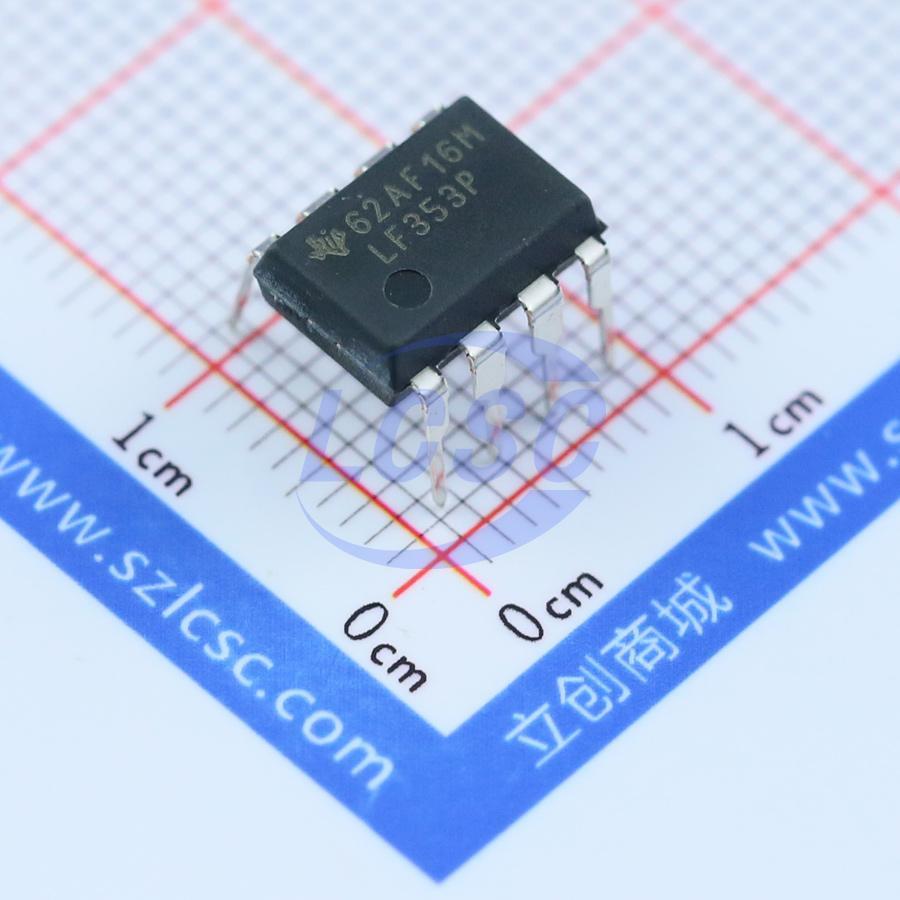

LF353P
5mV 13V/us 70dB 50pA 3MHz 3.6mA DIP-8 Instrumentation, Op Amps, Buffer Amps RoHS
DIP-8ROHS3 CompliantActive
JFET-INPUT DUAL OPERATIONAL AMPLIFIER
- Manufacturer
- TI
- Manufacturer part #
- LF353P
- Store part #
- C5207
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,498 in stock
#C5207
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.99 | ₹125.99 |
| 10+ | ₹100.75 | ₹1,007.50 |
| 50+ | ₹87.69 | ₹4,384.50 |
| 100+ | ₹75.08 | ₹7,508.00 |
| 500+ | ₹67.67 | ₹33,835.00 |
| 1,000+ | ₹63.76 | ₹63,760.00 |
1 × ₹125.99
₹125.99
excl. GST
₹148.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
LF353P
₹125.99 for 1 + GST
Specifications
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 50pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Gain Bandwidth Product
- 3MHz
- Quiescent Current
- 3.6mA
- Features
- Short-Circuit Protection
- Input Voltage Noise Density
- 18nV/√Hz@1kHz
- Dual Supply
- -18V~-3.5V;3.5V~18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.9 g
Overview
This device is a low-cost, high-speed, JFET-input operational amplifier with very low input offset voltage. It requires low supply current yet maintains a large gain-bandwidth product and a fast slew rate. In addition, the matched high-voltage JFET input provides very low input bias and offset currents. The LF353 can be used in applications such as high-speed integrators, digital-to-analog converters, sample-and-hold circuits, and many other circuits. The LF353 is characterized for operation from 0°C to 70°C.
Applications
- high-speed integrators
- digital-to-analog converters
- sample-and-hold circuits
Key features
- Low Input Bias Current... 50 pA Typ
- Low Input Noise Current 0.01 pA/√Hz Typ
- Low Input Noise Voltage... 18 nV/√Hz Typ
- Low Supply Current... 3.6 mA Typ
- High Input Impedance... 10^12 Ω Typ
- Internally Trimmed Offset Voltage
- Gain Bandwidth... 3 MHz Typ
- High Slew Rate... 13 V/μs Typ
