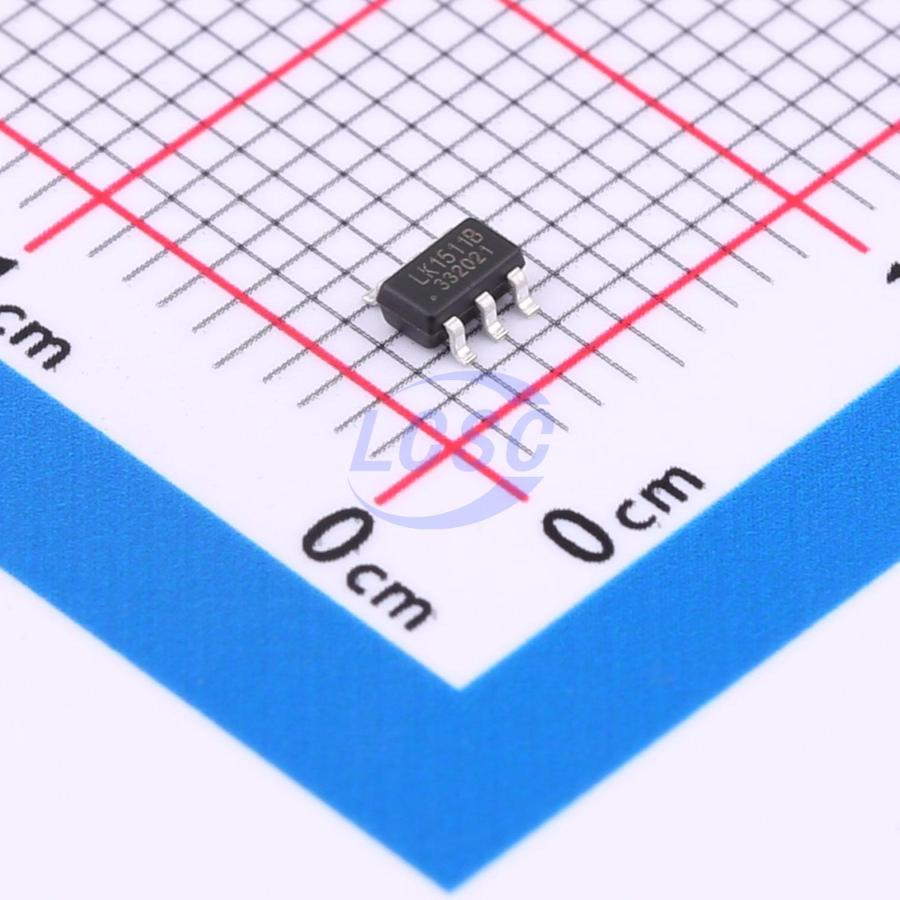

LK1511B
2.5V~5.5V SOT23-6 Motor Drivers, Controllers RoHS
SOT23-6ROHS CompliantActive
IR-CUT control circuit
- Manufacturer
- LANKE
- Manufacturer part #
- LK1511B
- Store part #
- C7469096
- Package / case
- SOT23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,485 in stock
#C7469096
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.10 | ₹65.50 |
| 50+ | ₹10.21 | ₹510.50 |
| 150+ | ₹8.77 | ₹1,315.50 |
| 500+ | ₹7.69 | ₹3,845.00 |
| 3,000+ | ₹7.12 | ₹21,360.00 |
| 6,000+ | ₹6.68 | ₹40,080.00 |
5 × ₹13.10
₹65.50
excl. GST
₹77.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LK1511B
₹65.50 for 5 + GST
Specifications
- Voltage - Supply
- 2.5V~5.5V
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 10uA
- Output Current
- 300mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
LK1511 is a circuit specifically designed for IR-CUT control, primarily used to switch infrared cut filters. The chip integrates a microcontrol circuit and a bidirectional H-bridge driver circuit, with an internal voltage drop of only 0.75V at 300mA drive capability. LK1511A supports both single-wire and dual-wire control modes; LK1511B adopts single-wire control mode with single-step pulse width control functionality. LKx1511 is available in SOT23-6 package.
Applications
- IR - CUT
Key features
- Wide supply voltage: 2.5V to 5.5V
- 1.8V input voltage compatible
- Low saturation voltage drop: 0.75V @ 300mA
- Low standby current: <10μA
- Multiple control modes
- Compact SOT23-6 package
