LKWICDatasheet (PDF)

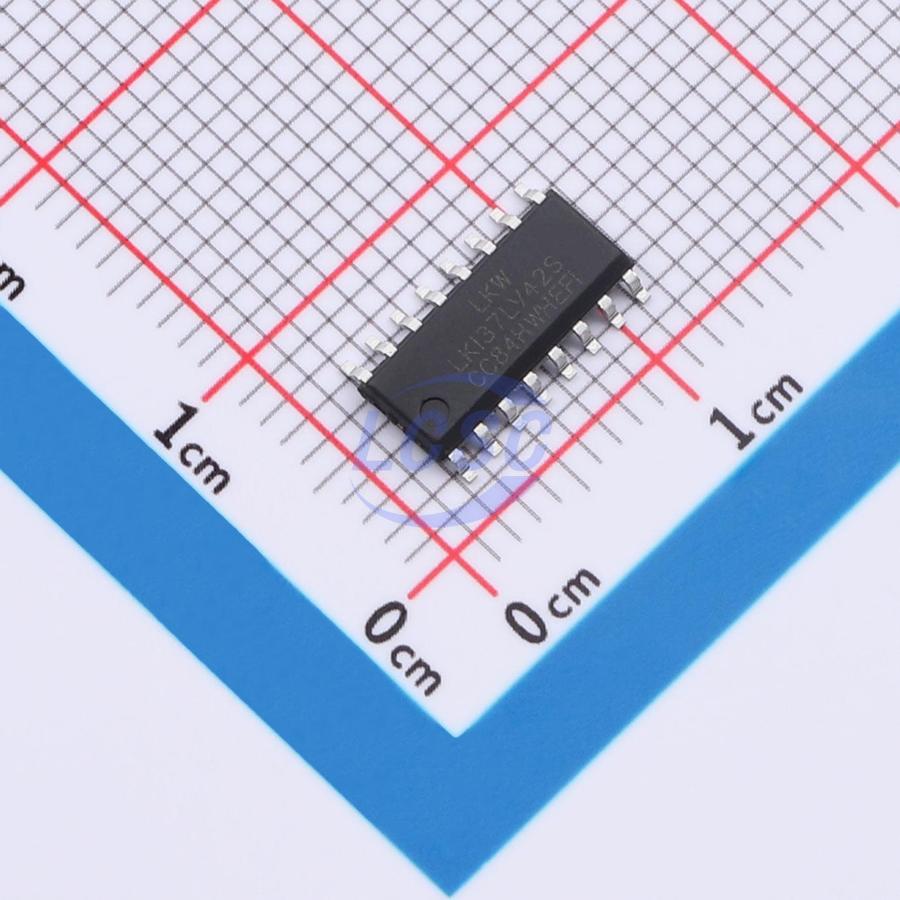

LKI37LV42S
3V~3.6V Driver 25Mbps SOP-16 Drivers, Receivers, Transceivers
SOP-16RoHSActive
- Manufacturer
- LKWIC
- Manufacturer part #
- LKI37LV42S
- Store part #
- C53055040
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,338 in stock
#C53055040
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹210.87 | ₹210.87 |
| 10+ | ₹179.21 | ₹1,792.10 |
| 30+ | ₹159.37 | ₹4,781.10 |
| 100+ | ₹138.89 | ₹13,889.00 |
| 500+ | ₹129.60 | ₹64,800.00 |
| 1,000+ | ₹125.59 | ₹1,25,590.00 |
1 × ₹210.87
₹210.87
excl. GST
₹248.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LKI37LV42S
₹210.87 for 1 + GST
Specifications
- Voltage - Supply
- 3V~3.6V
- Type
- Driver
- Data Rate
- 25Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Drivers
- 4
- Features
- Enable shutdown
- Number of Receivers
- 0
- Quiescent Supply Current
- 500uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (169 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.535 g
Overview
The LKI37LV42S is a quad high-speed differential line driver with three-state capability. The device offers two selectable inputs: active-high enable and active-low enable. Its outputs provide high drive current and present a high-impedance state when disabled. Suitable for applications requiring ultra-low power consumption and high data rates.
Applications
- Motor control
- Field transmitters
Key features
- Operating voltage: 3.3 V
- Propagation delay: < 25 ns
- Low power consumption: 500 μW @ 3.3 V (static)
- Maximum communication rate: 25 MHz
- Operating temperature: -40℃ ~ +85℃
- Package: SOP16 (9.90×6.00×1.75 mm)
