LKWICDatasheet (PDF)

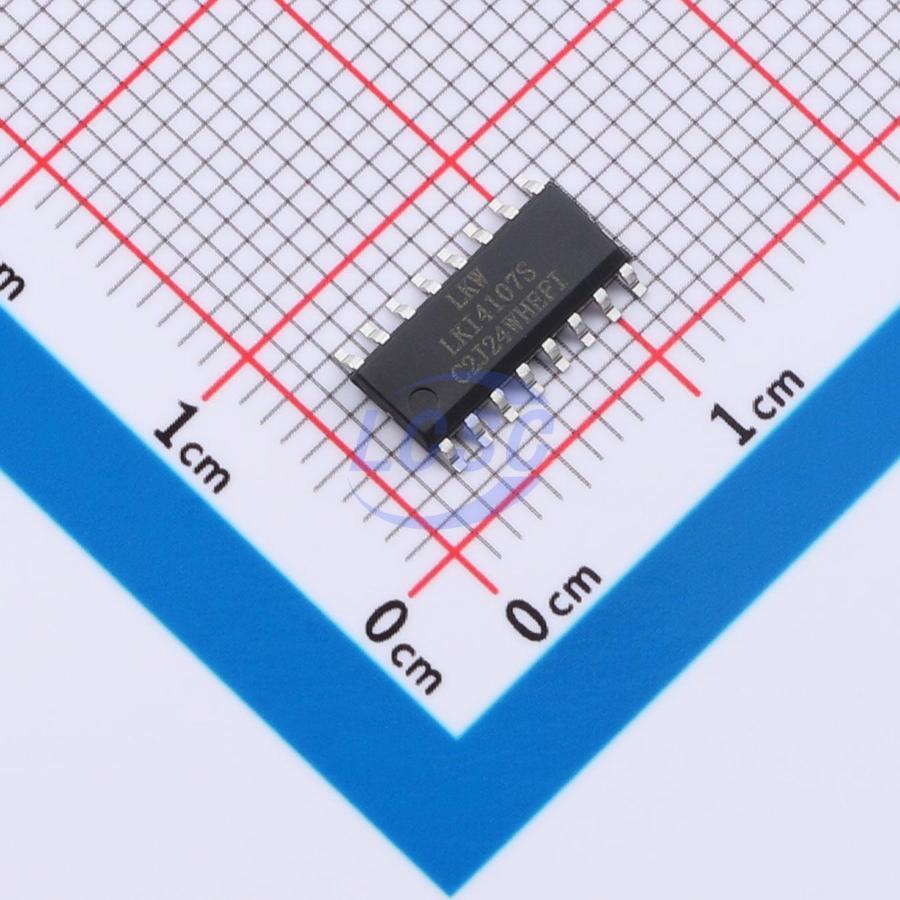

LKI4107S
3V~3.6V Receiver 10Mbps 128 SOP-16 Drivers, Receivers, Transceivers
SOP-16RoHSActive
- Manufacturer
- LKWIC
- Manufacturer part #
- LKI4107S
- Store part #
- C53055043
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,284 in stock
#C53055043
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹597.55 | ₹597.55 |
| 10+ | ₹511.30 | ₹5,113.00 |
| 30+ | ₹460.02 | ₹13,800.60 |
| 100+ | ₹408.09 | ₹40,809.00 |
| 500+ | ₹384.28 | ₹1,92,140.00 |
| 1,000+ | ₹373.34 | ₹3,73,340.00 |
1 × ₹597.55
₹597.55
excl. GST
₹705.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LKI4107S
₹597.55 for 1 + GST
Specifications
- Voltage - Supply
- 3V~3.6V
- Type
- Receiver
- Data Rate
- 10Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 128
- ESD Protect
- ±8kV
- Number of Drivers
- 0
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 4
- Quiescent Supply Current
- 12mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (172 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.557 g
Overview
LKI4107S is a low-power RS-422/485 receiver designed for serial data interface standard systems such as RS-422/485. The device integrates four receivers internally, enabling reception of four channels of serial data via enable control, with high input impedance and a maximum data rate of 10Mbps.
Applications
- Industrial automation systems
- RS-485 communication
- Smart electricity and water meters
- Security and protection monitoring
Key features
- Operating voltage: 3.3V ± 0.3V
- Input threshold voltage: ±0.2V
- Output high-level voltage: ≥ VCC - 0.4V
- Output low-level voltage: ≤ 0.4V
- Maximum data transfer rate: 10Mbps
- Data transfer delay: 123ns (typical)
- Bus supports 128 receivers
- ESD (HBM): ±8kV (bus side), ±2kV (other I/O ports)
- Operating temperature: -40℃ ~ +85℃
- Package: SOP16 (9.90mm×6.00mm×1.55mm)
