VISHAYDatasheet (PDF)

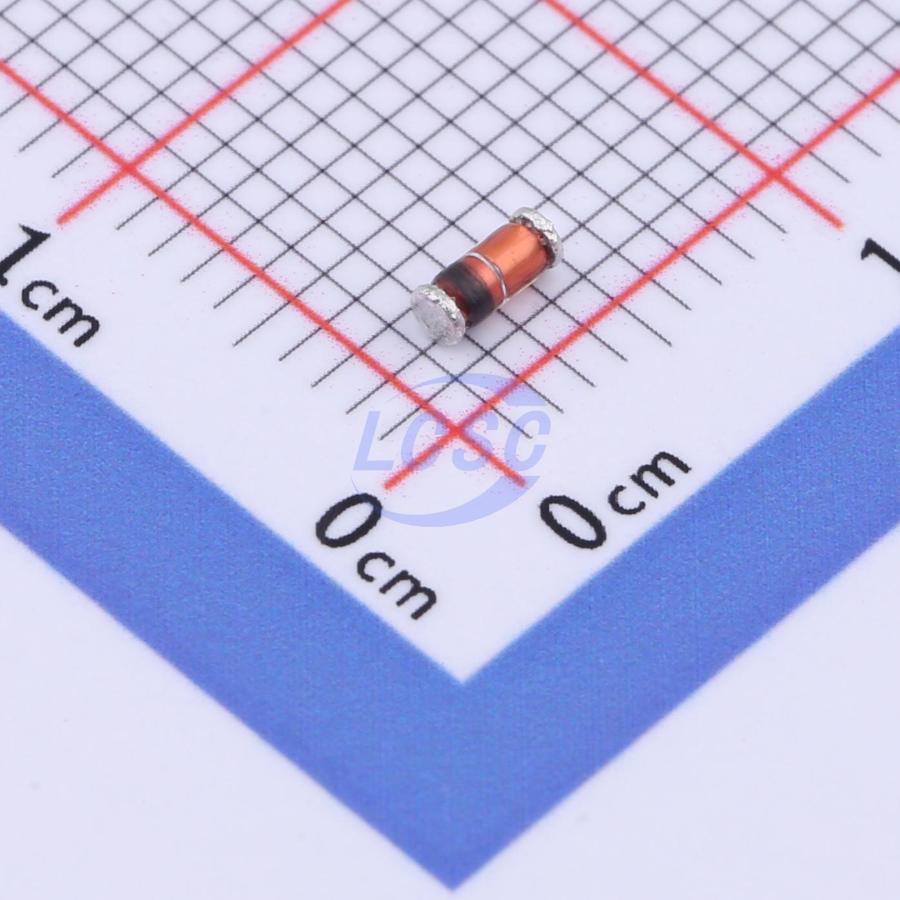

LL101A-GS08
Diode 1 Independent 60V 30mA Surface Mount MiniMELF
MiniMELFROHS3 CompliantActive
DIODE SCHOTTKY 60V MiniMELF
- Manufacturer
- VISHAY
- Manufacturer part #
- LL101A-GS08
- Store part #
- C3000831
- Package / case
- MiniMELF
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
330 in stock
#C3000831
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.61 | ₹73.05 |
| 50+ | ₹12.26 | ₹613.00 |
| 150+ | ₹11.10 | ₹1,665.00 |
| 500+ | ₹10.23 | ₹5,115.00 |
| 2,500+ | ₹8.78 | ₹21,950.00 |
| 5,000+ | ₹8.44 | ₹42,200.00 |
5 × ₹14.61
₹73.05
excl. GST
₹86.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LL101A-GS08
₹73.05 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 410mV@1mA
- Reverse Leakage Current (Ir)
- 200nA@50V
- Non-Repetitive Peak Forward Surge Current
- 2A
- Current - Rectified
- 30mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.052 g
Overview
Applications
- HF-detector
- Protection circuit
- Diode for low currents with a low supply voltage
- Small battery charger
- Power supplies
- DC/DC converter for notebooks
Key features
- For general purpose applications
- The LL101 series is a metal-on-silicon Schottky barrier device which is protected by a PN junction guard ring
- The low forward voltage drop and fast switching make it ideal for protection of MOS devices, steering, biasing and coupling diodes for fast switching and low logic level applications
- Integrated protection ring against static discharge
- Low capacitance
- Low leakage current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAS83-GS08#C3009012VISHAY · MiniMELF | VISHAY | MiniMELF | 5,035 | ₹23.52 · 5,035 in stock | View |
 | TMMBAT41FILM#C283272ST · MiniMELF | ST | MiniMELF | 3,525 | ₹10.19 · 3,525 in stock | View |
 | LL41-GS08#C3313141VISHAY · MiniMELF | VISHAY | MiniMELF | 415 | ₹13.06 · 415 in stock | View |
 | LL46-GS08#C5342958VISHAY · SOD-80 | VISHAY | SOD-80 | 4,130 | ₹16.83 · 4,130 in stock | View |
| LL101A-GS18#C6217807VISHAY · SOD-80MiNiMELF | VISHAY | SOD-80MiNiMELF | On request | ₹14.43 · 0 in stock | View | |
