HXY MOSFETDatasheet (PDF)

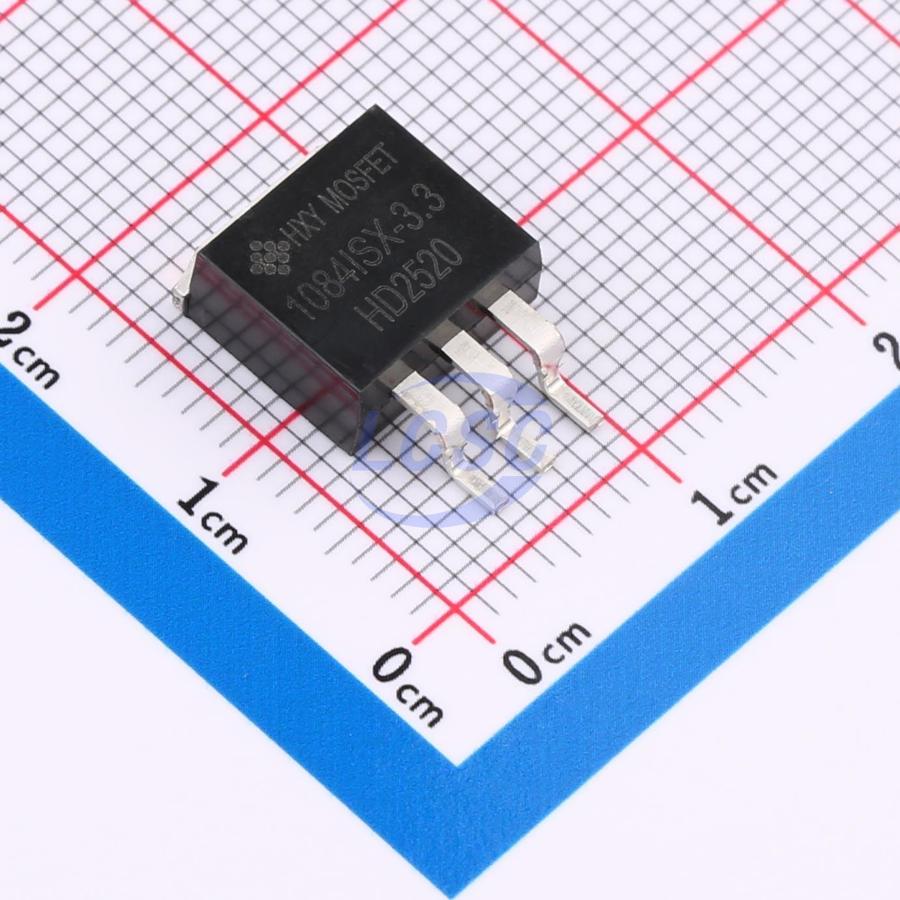

LM1084ISX-3.3/NOPB-HXY
3.3V Positive Fixed TO-263-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-263-3LRoHSActive
IC REG LINEAR 3.3V 5A TO-263-3L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- LM1084ISX-3.3/NOPB-HXY
- Store part #
- C49247409
- Package / case
- TO-263-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
65 in stock
#C49247409
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹254.81 | ₹254.81 |
| 10+ | ₹215.60 | ₹2,156.00 |
| 30+ | ₹191.11 | ₹5,733.30 |
| 100+ | ₹165.98 | ₹16,598.00 |
| 500+ | ₹154.71 | ₹77,355.00 |
| 800+ | ₹149.72 | ₹1,19,776.00 |
1 × ₹254.81
₹254.81
excl. GST
₹300.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
LM1084ISX-3.3/NOPB-HXY
₹254.81 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Output Configuration
- Positive
- Output Current
- 5A
- Operating Voltage
- 12V
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.694 g
Overview
LM1084ISX-xx/NOPB is a low dropout three-terminal regulator with 5A output current capability. The output voltage can be adjusted via a resistive voltage divider, or fixed at 1.5V, 1.8V, and 3.3V. At maximum output current, the dropout voltage is guaranteed to a maximum of 1.5V. Its low dropout voltage and fast transient response make it well suited for low-voltage microprocessor applications. Internal current limiting and thermal limiting protect against excessive junction temperatures under overload conditions.
Applications
- Motherboard I/O power supply
- Microprocessor power supply
- High-current voltage regulator
- Post-regulator for switching power supplies
Key features
- 1.4V dropout voltage at 5A output current.
- Fast transient response.
- Line regulation typical value: 0.015%.
- Load regulation typical value: 0.1%.
- Internal thermal protection and current limiting.
- Adjustable output voltage or fixed 1.5V, 1.8V, 3.3V.
