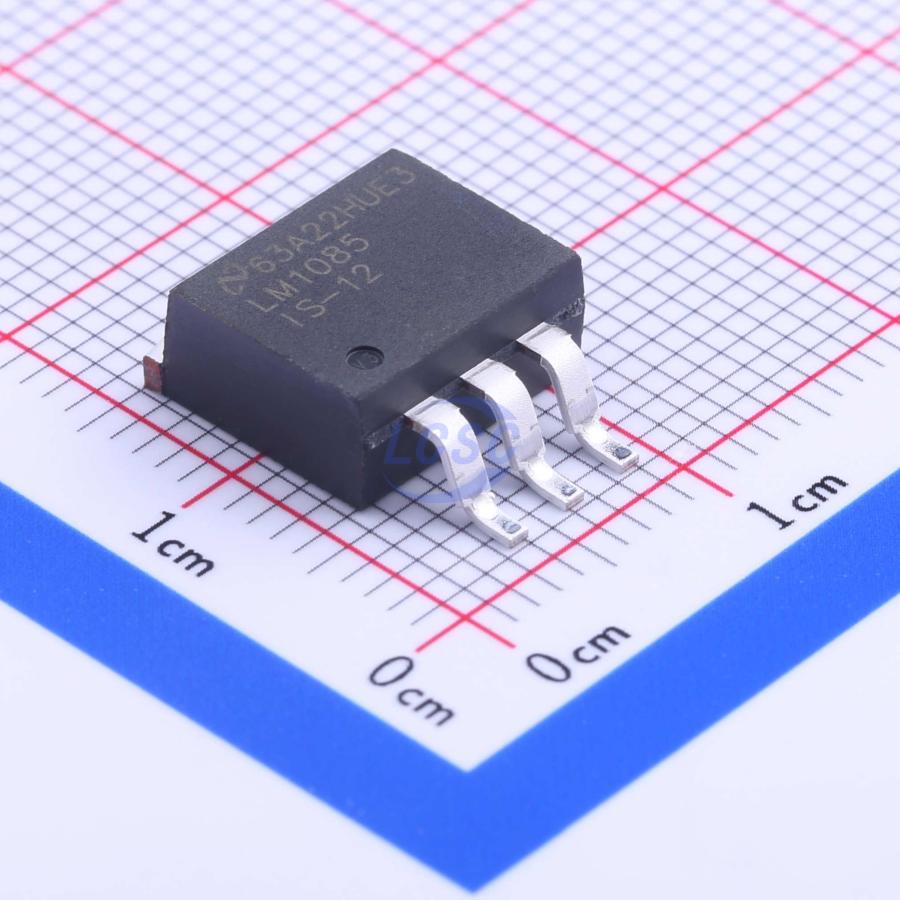

LM1085IS-12/NOPB
12V Positive Fixed TO-263-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-3ROHS CompliantActive
3A, 29V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- LM1085IS-12/NOPB
- Store part #
- C130908
- Package / case
- TO-263-3
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,306 in stock
#C130908
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹293.13 | ₹293.13 |
| 10+ | ₹259.56 | ₹2,595.60 |
| 45+ | ₹222.01 | ₹9,990.45 |
| 90+ | ₹200.54 | ₹18,048.60 |
| 450+ | ₹190.80 | ₹85,860.00 |
| 900+ | ₹186.64 | ₹1,67,976.00 |
1 × ₹293.13
₹293.13
excl. GST
₹345.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 45 per tube
LM1085IS-12/NOPB
₹293.13 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 25V
- Output Current
- 3A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 45 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.944 g
Overview
The LM1085 is a regulator with a maximum dropout of 1.5 V at 3A of load current. It has the same pinout as TI's industry standard LM317. Two resistors are required to set the output voltage of the adjustable output voltage version of the LM1085. Fixed output voltage versions integrate the adjust resistors. The LM1085 circuit includes a zener trimmed bandgap reference, current limiting and thermal shutdown. Refer to the LM1084 for the 5A version, and the LM1086 for the 1.5A version.
Applications
- High Efficiency Linear Regulators
- Battery Charger
- Post Regulation for Switching Supplies
- Constant Current Regulator
- Microprocessor Supply
Key features
- Available in 3.3-V, 5.0-V, 12-V and Adjustable Versions
- Current Limiting and Thermal Protection
- Output Current 3 A
- Line Regulation 0.015% (typical)
- Load Regulation 0.1% (typical)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XBL29300S-12DTR#C54795229XBLW · TO-263-3 | XBLW | TO-263-3 | 258 | ₹80.74 · 258 in stock | View |
| LM1085ISX-12/NOPB#C3750061TI · TO-263-3 | TI | TO-263-3 | On request | Price on request | Quote | |
| MIC29300-12BU TR#C19540189MICROCHIP · TO-263-3 | MICROCHIP | TO-263-3 | On request | Price on request | Quote | |
