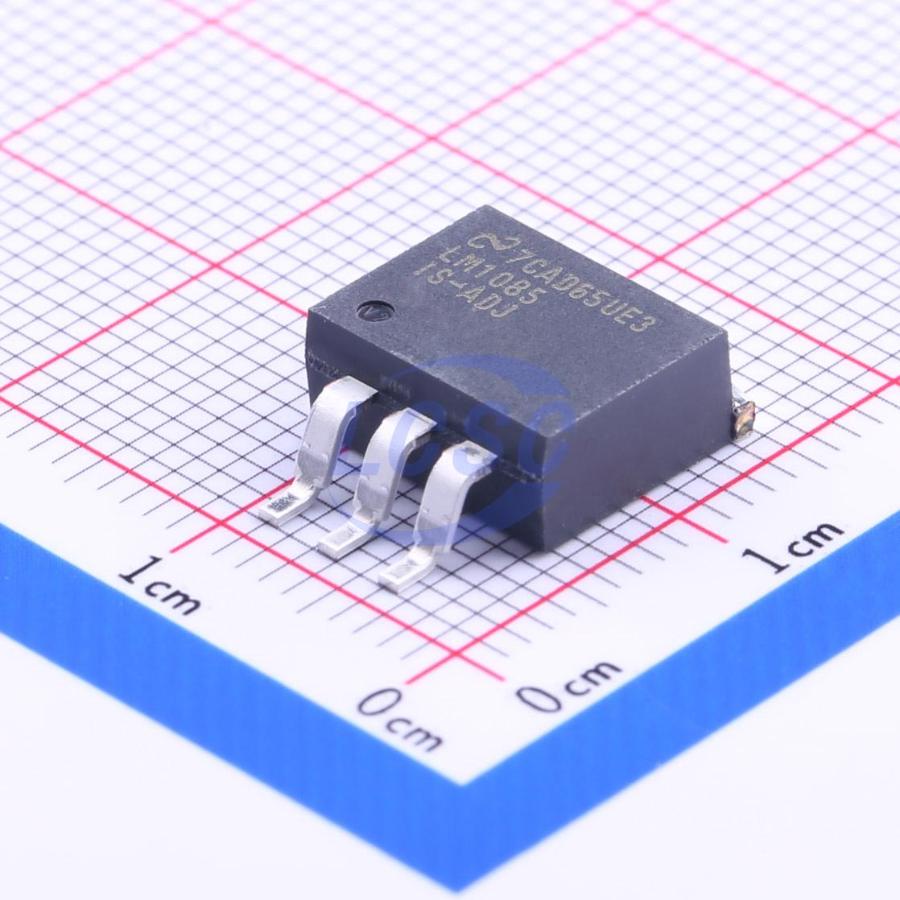

LM1085ISX-ADJ/NOPB
1.25V~15V Positive Adjustable TO-263-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-3ROHS3 CompliantActive
3A, 29V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- LM1085ISX-ADJ/NOPB
- Store part #
- C189886
- Package / case
- TO-263-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,775 in stock
#C189886
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹153.89 | ₹153.89 |
| 10+ | ₹129.07 | ₹1,290.70 |
| 30+ | ₹115.58 | ₹3,467.40 |
| 100+ | ₹102.96 | ₹10,296.00 |
| 500+ | ₹96.00 | ₹48,000.00 |
| 1,000+ | ₹92.94 | ₹92,940.00 |
1 × ₹153.89
₹153.89
excl. GST
₹181.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 500 per reel
LM1085ISX-ADJ/NOPB
₹153.89 for 1 + GST
Specifications
- Output Voltage
- 1.25V~15V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Output Current
- 3A
- Operating Voltage
- 29V
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.944 g
Overview
The LM1085 is a regulator with a maximum dropout of 1.5 V at 3A of load current. It has the same pinout as TI's industry standard LM317. Two resistors are required to set the output voltage of the adjustable output voltage version of the LM1085. Fixed output voltage versions integrate the adjust resistors. The LM1085 circuit includes a zener trimmed bandgap reference, current limiting and thermal shutdown. Refer to the LM1084 for the 5A version, and the LM1086 for the 1.5A version.
Applications
- High Efficiency Linear Regulators
- Battery Charger
- Post Regulation for Switching Supplies
- Constant Current Regulator
- Microprocessor Supply
Key features
- Available in 3.3-V, 5.0-V, 12-V and Adjustable Versions
- Current Limiting and Thermal Protection
- Output Current 3 A
- Line Regulation 0.015% (typical)
- Load Regulation 0.1% (typical)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1084ISX-ADJ/NOPB#C2861721TI · TO-263-3 | TI | TO-263-3 | 991 | ₹366.85 · 991 in stock | View |
