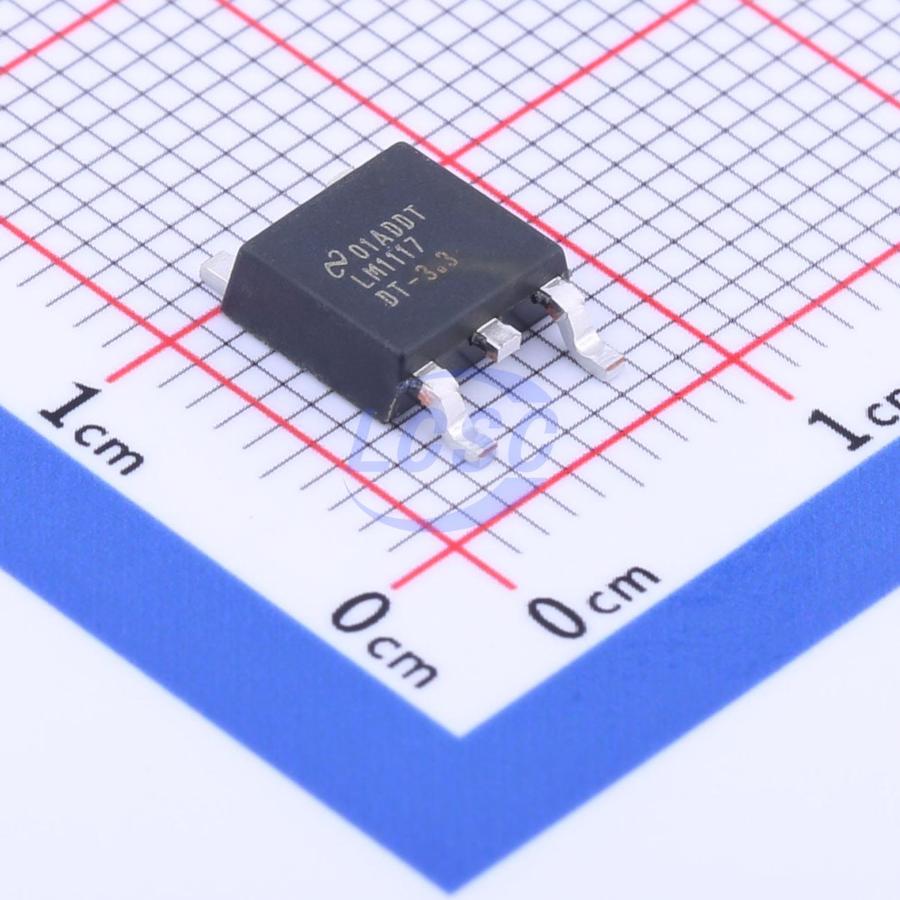

LM1117DT-3.3/NOPB
Linear Voltage Regulator IC Positive Fixed 1 Output 800mA TO-252
TO-252ROHS3 CompliantActive
800mA 15V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- LM1117DT-3.3/NOPB
- Store part #
- C969102
- Package / case
- TO-252
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,218 in stock
#C969102
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹163.44 | ₹163.44 |
| 10+ | ₹136.32 | ₹1,363.20 |
| 30+ | ₹121.32 | ₹3,639.60 |
| 75+ | ₹101.43 | ₹7,607.25 |
| 525+ | ₹93.84 | ₹49,266.00 |
| 1,500+ | ₹90.40 | ₹1,35,600.00 |
1 × ₹163.44
₹163.44
excl. GST
₹192.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 75 per tube
LM1117DT-3.3/NOPB
₹163.44 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
LM1117 is a low dropout regulator with a 1.2V dropout at 800mA load current. The LM1117 is available in an adjustable version, which can set the output voltage from 1.25V to 13.8V with only two external resistors. In addition, the device offers five fixed voltage options: 1.8V, 2.5V, 3.3V, and 5V. The LM1117 features current limiting and thermal shutdown. The device incorporates a zener-trimmed bandgap reference to ensure output voltage accuracy within ±1%.
Applications
- AC drive power stage modules
- Commercial networking and server PSU
- Industrial AC/DC power supplies
- Ultrasonic scanners
- Servo drive control modules
- Adjustable output voltage regulators
Key features
- Available in 1.8V, 2.5V, 3.3V, 5V, and adjustable voltage versions
- Space-saving SOT-223 and WSON packages
- Current limiting and thermal protection
- Output current: 800mA
- Line regulation: 0.2% (maximum)
- Load regulation: 0.4% (maximum)
- Temperature range:
- LM1117: 0°C to 125°C
- LM1117I: -40°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1117DTX-3.3/NOPB#C73181TI · TO-252-2 | TI | TO-252-2 | 13,957 | ₹125.80 · 13,957 in stock | View |
 | LD1117DT33TR#C132629ST · TO-252-2 | ST | TO-252-2 | 13,315 | ₹28.30 · 13,315 in stock | View |
 | LM1117IDTX-3.3/NOPB#C129952TI · TO-252-3 | TI | TO-252-3 | 6,143 | ₹119.04 · 6,143 in stock | View |
| MC33269DT-3.3/TR#C46614073HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | 2,305 | ₹15.42 · 2,305 in stock | View | |
 | ZLDO1117QK33TC#C5295913DIODES · TO-252 | DIODES | TO-252 | 72 | ₹120.15 · 72 in stock | View |
