TIDatasheet (PDF)

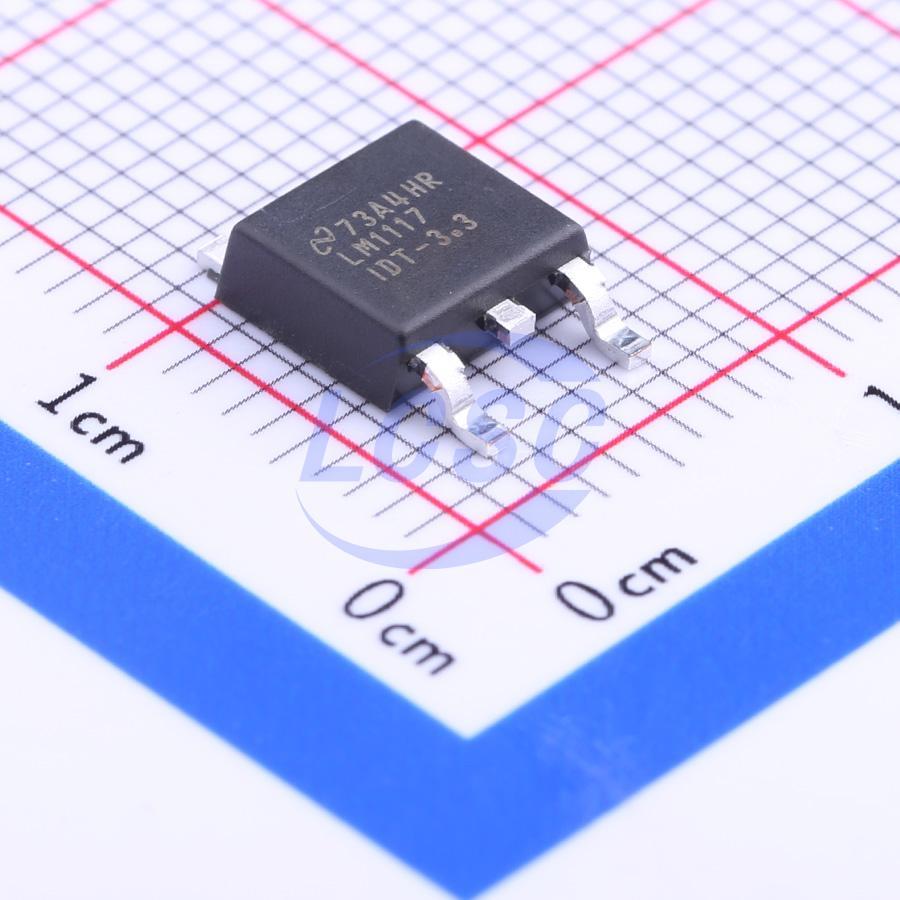

LM1117IDTX-3.3/NOPB
3.3V Positive Fixed TO-252-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-3ROHS CompliantActive
800mA 15V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- LM1117IDTX-3.3/NOPB
- Store part #
- C129952
- Package / case
- TO-252-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,143 in stock
#C129952
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹143.18 | ₹143.18 |
| 10+ | ₹116.89 | ₹1,168.90 |
| 30+ | ₹103.63 | ₹3,108.90 |
| 100+ | ₹87.99 | ₹8,799.00 |
| 500+ | ₹80.17 | ₹40,085.00 |
| 1,000+ | ₹76.05 | ₹76,050.00 |
1 × ₹143.18
₹143.18
excl. GST
₹168.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM1117IDTX-3.3/NOPB
₹143.18 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.42 g
Overview
The LM1117 is a low dropout voltage regulator with a dropout of 1.2 V at 800 mA of load current. The LM1117 is available in an adjustable version, which can set the output voltage from 1.25 to 13.8 V with only two external resistors. In addition, it is available in five fixed voltages, 1.8 V, 2.5 V, 3.3 V, and 5 V. The LM1117 offers current limiting and thermal shutdown. Its circuit includes a Zener trimmed bandgap reference to assure output voltage accuracy to within ±1%. A minimum of 10 μF tantalum capacitor is required at the output to improve the transient response and stability.
Applications
- Post Regulator for Switching DC–DC Converter
- High Efficiency Linear Regulators
- Battery Chargers
- Portable Instrumentation
- Active SCSI Termination Regulator
Key features
- Available in 1.8 V, 2.5 V, 3.3 V, 5 V, and Adjustable Versions
- Space-Saving SOT-223 and WSON Packages
- Current Limiting and Thermal Protection
- Output Current 800 mA
- Line Regulation 0.2% (Maximum)
- Load Regulation 0.4% (Maximum)
- Temperature Range: LM1117: 0°C to 125°C; LM1117I: -40°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MC33269DT-3.3/TR#C46614073HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | 2,305 | ₹18.55 · 2,305 in stock | View | |
 | ZLDO1117QK33TC#C5295913DIODES · TO-252 | DIODES | TO-252 | 72 | ₹144.51 · 72 in stock | View |
 | LD1117DT33TR#C132629ST · TO-252-2 | ST | TO-252-2 | 13,315 | ₹34.04 · 13,315 in stock | View |
 | LM1117DTX-3.3/NOPB#C73181TI · TO-252-2 | TI | TO-252-2 | 13,957 | ₹151.30 · 13,957 in stock | View |
 | LM1117DT-3.3/NOPB#C969102TI · TO-252 | TI | TO-252 | 1,218 | ₹196.57 · 1,218 in stock | View |
