HTCDatasheet (PDF)

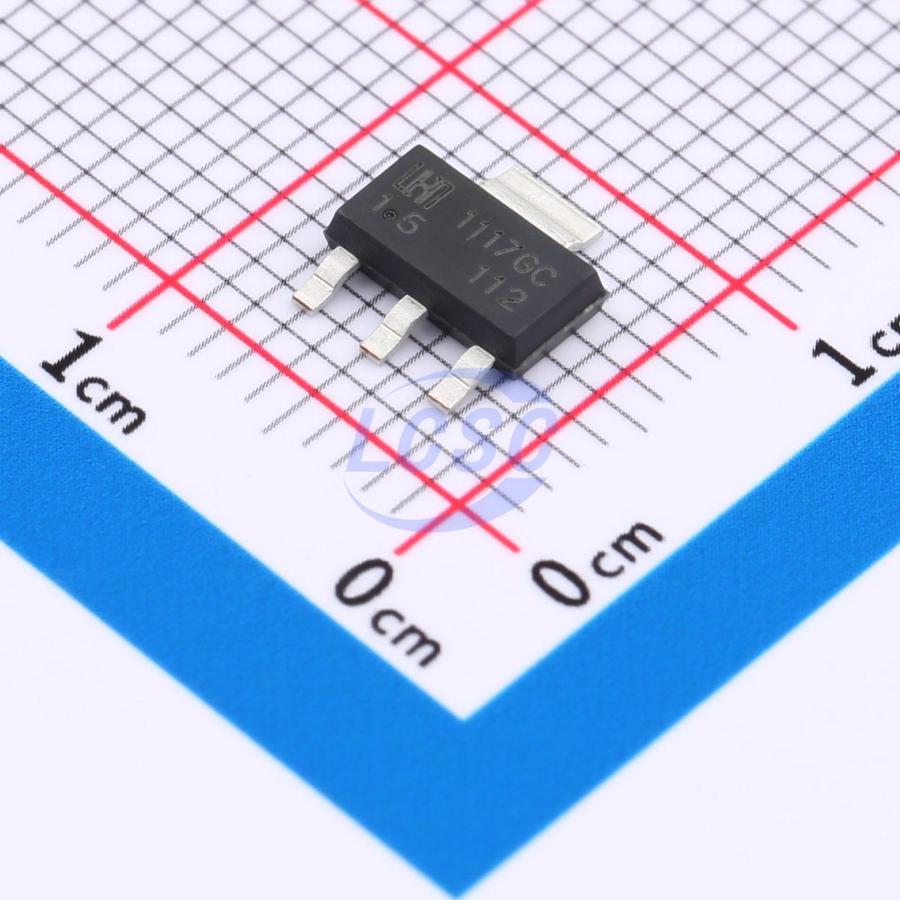

LM1117GS-1.5
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223-3L
SOT-223-3LROHS CompliantActive
1A Low Dropout (LDO) Voltage Regulator
- Manufacturer
- HTC
- Manufacturer part #
- LM1117GS-1.5
- Store part #
- C5279970
- Package / case
- SOT-223-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,190 in stock
#C5279970
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.92 | ₹119.60 |
| 50+ | ₹18.99 | ₹949.50 |
| 150+ | ₹16.88 | ₹2,532.00 |
| 500+ | ₹14.25 | ₹7,125.00 |
| 2,500+ | ₹13.07 | ₹32,675.00 |
| 5,000+ | ₹12.37 | ₹61,850.00 |
5 × ₹23.92
₹119.60
excl. GST
₹141.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM1117GS-1.5
₹119.60 for 5 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.27 g
Overview
The LM1117GS is a low power positive-voltage regulator designed to meet 1A output current. This device is an excellent choice for use in battery-powered applications, as active terminators for the SCSI bus, and portable computers. The LM1117GS features very low quiescent current and very low dropout voltage of 1.2V at a full load and lower as output current decreases. LM1117GS is available as an adjustable or fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V output voltages. The LM1117GS is offered in a 3-pin surface mount package SOT-223-3L. The output capacitor of 10uF or larger is needed for output stability of LM1117GS as required by most of the other regulator circuits.
Applications
- Active SCSI Terminators
- Portable/ Plan Top/ Notebook Computers High Efficiency Linear Regulators
- SMPS Post Regulators
- Mother B/D Clock Supplies
- Disk Drives Battery Chargers
Key features
- Output Current up to 1A
- Dropout Voltage is 1.2V at Output current Three Terminal Adjustable(ADJ) or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5.0V
- Line Regulation typically at 0.1% typ.
- Load Regulation typically at 0.2% typ.
- Internal Current and Terminal Protection
- Surface Mount Package SOT-223-3L
- Moisture Sensitivity Level 3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1117S-1.5#C262792HTC · SOT-223 | HTC | SOT-223 | 2,690 | ₹27.00 · 2,690 in stock | View |
 | LD1117AG-1.5V#C474401UTC · SOT-223 | UTC | SOT-223 | 430 | ₹11.50 · 430 in stock | View |
 | AMS1117-1.5#C963403JSMSEMI · SOT-223 | JSMSEMI | SOT-223 | 1,780 | ₹8.33 · 1,780 in stock | View |
 | MC33269MP-1.5/TR#C52121502HGSEMI · SOT-223 | HGSEMI | SOT-223 | 2,500 | ₹16.71 · 2,500 in stock | View |
 | AZ1117H-1.5TRE1#C526403DIODES · SOT-223-4 | DIODES | SOT-223-4 | 230 | ₹9.78 · 230 in stock | View |
