HTCDatasheet (PDF)

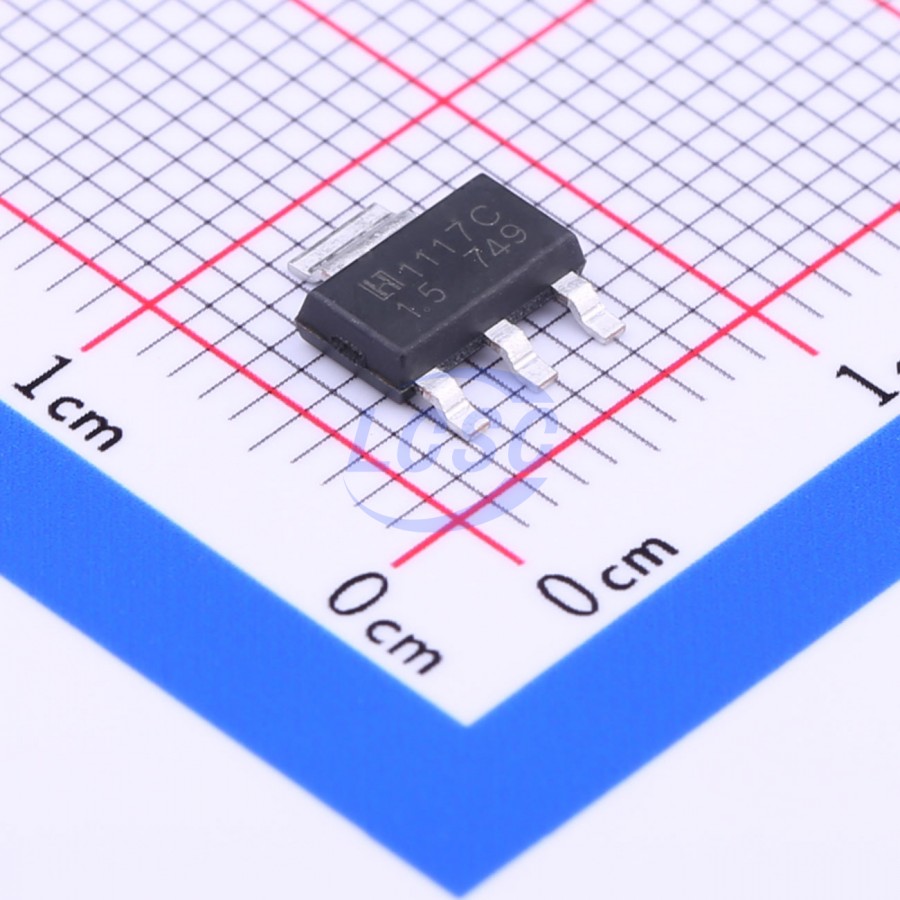

LM1117S-1.5
1.5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS CompliantActive
1A Low Dropout (LDO) Voltage Regulator
- Manufacturer
- HTC
- Manufacturer part #
- LM1117S-1.5
- Store part #
- C262792
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,690 in stock
#C262792
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.00 | ₹135.00 |
| 50+ | ₹20.40 | ₹1,020.00 |
| 150+ | ₹17.58 | ₹2,637.00 |
| 500+ | ₹14.05 | ₹7,025.00 |
| 2,500+ | ₹12.49 | ₹31,225.00 |
| 5,000+ | ₹11.54 | ₹57,700.00 |
5 × ₹27.00
₹135.00
excl. GST
₹159.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM1117S-1.5
₹135.00 for 5 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.241 g
Overview
The LM1117 is a low power positive-voltage regulator designed to meet 1A output current. This device is an excellent choice for use in battery-powered applications, as active terminators for the SCSI bus, and portable computers. The LM1117 features very low quiescent current and very low dropout voltage of 1.2V at a full load and lower as output current decreases. LM1117 is available as an adjustable or fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V output voltages. The LM1117 is offered in a 3-pin surface mount package SOT-223, TO-252 & SOT-89. The output capacitor of 10μF or larger is needed for output stability of LM1117 as required by most of the other regulator circuits.
Applications
- Active SCSI Terminators
- Portable/ Plan Top/ Notebook Computers High Efficiency Linear Regulators
- SMPS Post Regulators
- Mother B/D Clock Supplies
- Disk Drives
- Battery Chargers
Key features
- Output Current up to 1A
- Low Dropout Voltage (1.2V at 1A Output current)
- Three Terminal Adjustable(ADJ) or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5.0V
- Line Regulation typically at 0.1% typ.
- Load Regulation typically at 0.2% typ.
- Internal Current and Terminal Protection
- Maximum Input Voltage 20V
- Surface Mount Package SOT-223, TO-252, SOT-89
- 100% Thermal Limit Burn-In
- Moisture Sensitivity Level 3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1117GS-1.5#C5279970HTC · SOT-223-3L | HTC | SOT-223-3L | 2,190 | ₹23.92 · 2,190 in stock | View |
 | LD1117AG-1.5V#C474401UTC · SOT-223 | UTC | SOT-223 | 430 | ₹11.50 · 430 in stock | View |
 | AMS1117-1.5#C963403JSMSEMI · SOT-223 | JSMSEMI | SOT-223 | 1,780 | ₹8.33 · 1,780 in stock | View |
 | MC33269MP-1.5/TR#C52121502HGSEMI · SOT-223 | HGSEMI | SOT-223 | 2,500 | ₹16.71 · 2,500 in stock | View |
 | AZ1117H-1.5TRE1#C526403DIODES · SOT-223-4 | DIODES | SOT-223-4 | 230 | ₹9.78 · 230 in stock | View |
