TIDatasheet (PDF)

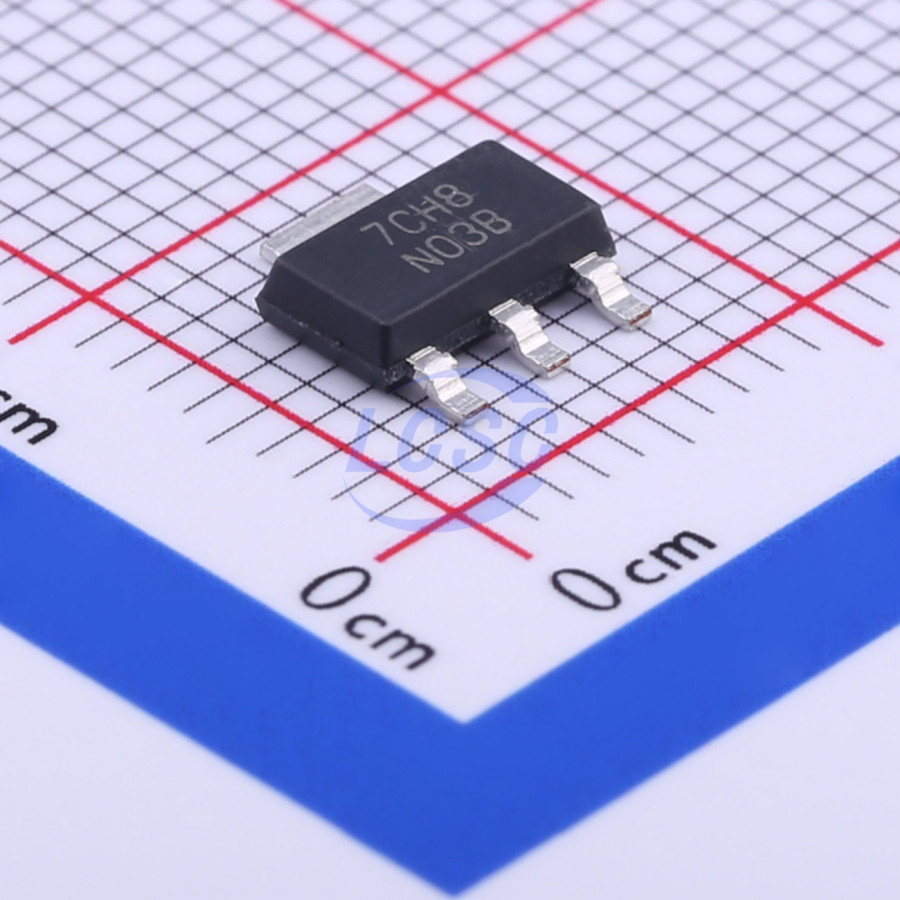

LM1117IMPX-ADJ/NOPB
1.25V~13.8V Positive Adjustable SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-4ROHS3 CompliantActive
800mA 15V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- LM1117IMPX-ADJ/NOPB
- Store part #
- C19228
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,297 in stock
#C19228
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.46 | ₹57.46 |
| 10+ | ₹46.19 | ₹461.90 |
| 30+ | ₹41.42 | ₹1,242.60 |
| 100+ | ₹35.35 | ₹3,535.00 |
| 500+ | ₹32.53 | ₹16,265.00 |
| 1,000+ | ₹31.01 | ₹31,010.00 |
1 × ₹57.46
₹57.46
excl. GST
₹67.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LM1117IMPX-ADJ/NOPB
₹57.46 for 1 + GST
Specifications
- Output Voltage
- 1.25V~13.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.288 g
Overview
The LM1117 is a low dropout voltage regulator with a dropout of 1.2 V at 800 mA of load current. The LM1117 is available in an adjustable version, which can set the output voltage from 1.25 to 13.8 V with only two external resistors. In addition, it is available in five fixed voltages, 1.8 V, 2.5 V, 3.3 V, and 5 V. The LM1117 offers current limiting and thermal shutdown. Its circuit includes a Zener trimmed bandgap reference to assure output voltage accuracy to within ±1%. A minimum of 10 μF tantalum capacitor is required at the output to improve the transient response and stability.
Applications
- Post Regulator for Switching DC–DC Converter
- High Efficiency Linear Regulators
- Battery Chargers
- Portable Instrumentation
- Active SCSI Termination Regulator
Key features
- Available in 1.8 V, 2.5 V, 3.3 V, 5 V, and Adjustable Versions
- Space-Saving SOT-223 and WSON Packages
- Current Limiting and Thermal Protection
- Output Current 800 mA
- Line Regulation 0.2% (Maximum)
- Load Regulation 0.4% (Maximum)
- Temperature Range: LM1117: 0°C to 125°C; LM1117I: -40°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1117IMP-ADJ/NOPB#C350541TI · SOT-223-4 | TI | SOT-223-4 | 780 | ₹62.70 · 780 in stock | View |
 | LM1117MPX-ADJ/NOPB#C263277TI · SOT-223-4 | TI | SOT-223-4 | 31,635 | ₹41.99 · 31,635 in stock | View |
 | LM1117MPX-ADJNOPB#C2902259onsemi · SOT-223 | onsemi | SOT-223 | 801 | ₹96.92 · 801 in stock | View |
 | AMS1117-ADJ#C2992572GUOXIN JIAPIN SEMICONDUCTOR · SOT-223-3 | GUOXIN JIAPIN SEMICONDUCTOR | SOT-223-3 | 360 | ₹4.88 · 360 in stock | View |
 | XBL1117-ADJ#C49242129XBLW · SOT-223 | XBLW | SOT-223 | 3,020 | ₹6.09 · 3,020 in stock | View |
