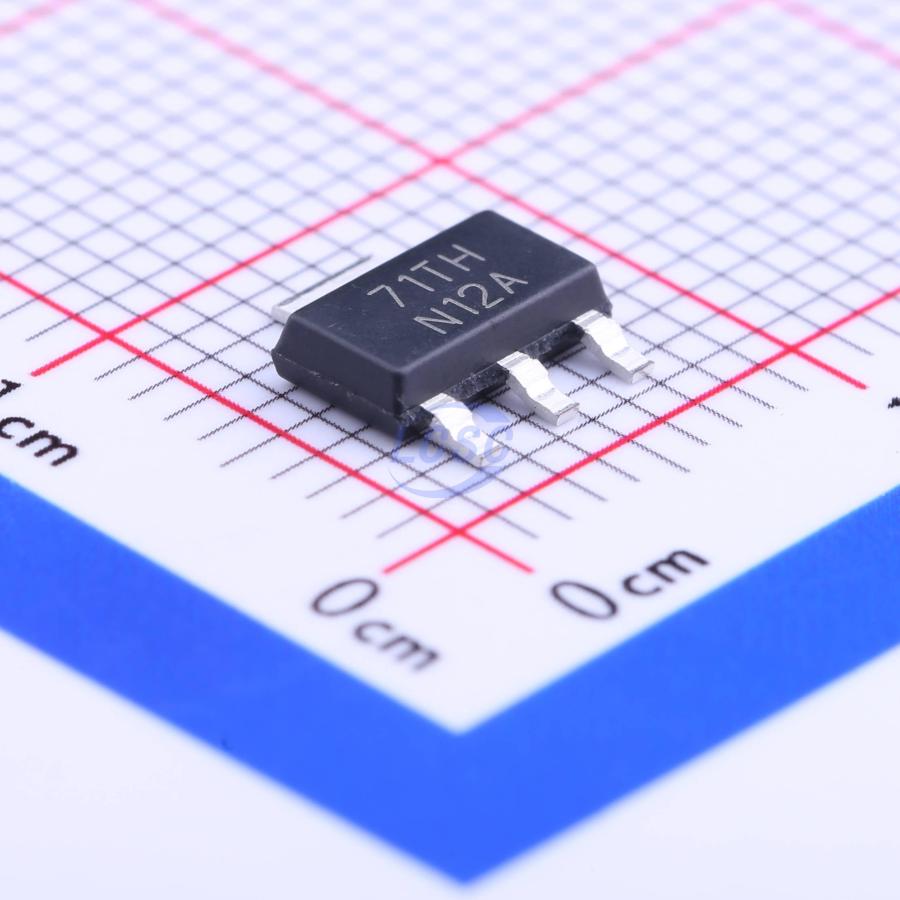

LM1117MPX-1.8/NOPB
1.8V Positive Fixed SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-4ROHS3 CompliantActive
800mA 15V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- LM1117MPX-1.8/NOPB
- Store part #
- C9660
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,768 in stock
#C9660
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.01 | ₹83.01 |
| 10+ | ₹66.27 | ₹662.70 |
| 30+ | ₹58.89 | ₹1,766.70 |
| 100+ | ₹49.98 | ₹4,998.00 |
| 500+ | ₹40.85 | ₹20,425.00 |
| 1,000+ | ₹38.46 | ₹38,460.00 |
1 × ₹83.01
₹83.01
excl. GST
₹97.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LM1117MPX-1.8/NOPB
₹83.01 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.288 g
Overview
The LM1117 is a low dropout voltage regulator with a dropout of 1.2 V at 800 mA of load current. The LM1117 is available in an adjustable version, which can set the output voltage from 1.25 to 13.8 V with only two external resistors. In addition, it is available in five fixed voltages, 1.8 V, 2.5 V, 3.3 V, and 5 V. The LM1117 offers current limiting and thermal shutdown. Its circuit includes a Zener trimmed bandgap reference to assure output voltage accuracy to within ±1%. A minimum of 10 μF tantalum capacitor is required at the output to improve the transient response and stability.
Applications
- Post Regulator for Switching DC–DC Converter
- High Efficiency Linear Regulators
- Battery Chargers
- Portable Instrumentation
- Active SCSI Termination Regulator
Key features
- Available in 1.8 V, 2.5 V, 3.3 V, 5 V, and Adjustable Versions
- Space-Saving SOT-223 and WSON Packages
- Current Limiting and Thermal Protection
- Output Current 800 mA
- Line Regulation 0.2% (Maximum)
- Load Regulation 0.4% (Maximum)
- Temperature Range: LM1117: 0°C to 125°C; LM1117I: -40°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1117MP-1.8/NOPB#C206210TI · SOT-223 | TI | SOT-223 | 844 | ₹106.46 · 844 in stock | View |
 | NCP1117ST18T3G#C255605onsemi · SOT-223 | onsemi | SOT-223 | 111 | ₹65.41 · 111 in stock | View |
| MC33269MP-1.8/TR#C46614065HGSEMI · SOT-223 | HGSEMI | SOT-223 | 2,500 | ₹17.28 · 2,500 in stock | View | |
 | TLV1117-18CDCYR#C2862410TI · SOT-223-4 | TI | SOT-223-4 | 240 | ₹71.56 · 240 in stock | View |
 | AMS1117-1.8#C18164483GR · SOT-223 | GR | SOT-223 | 720 | ₹5.34 · 720 in stock | View |
