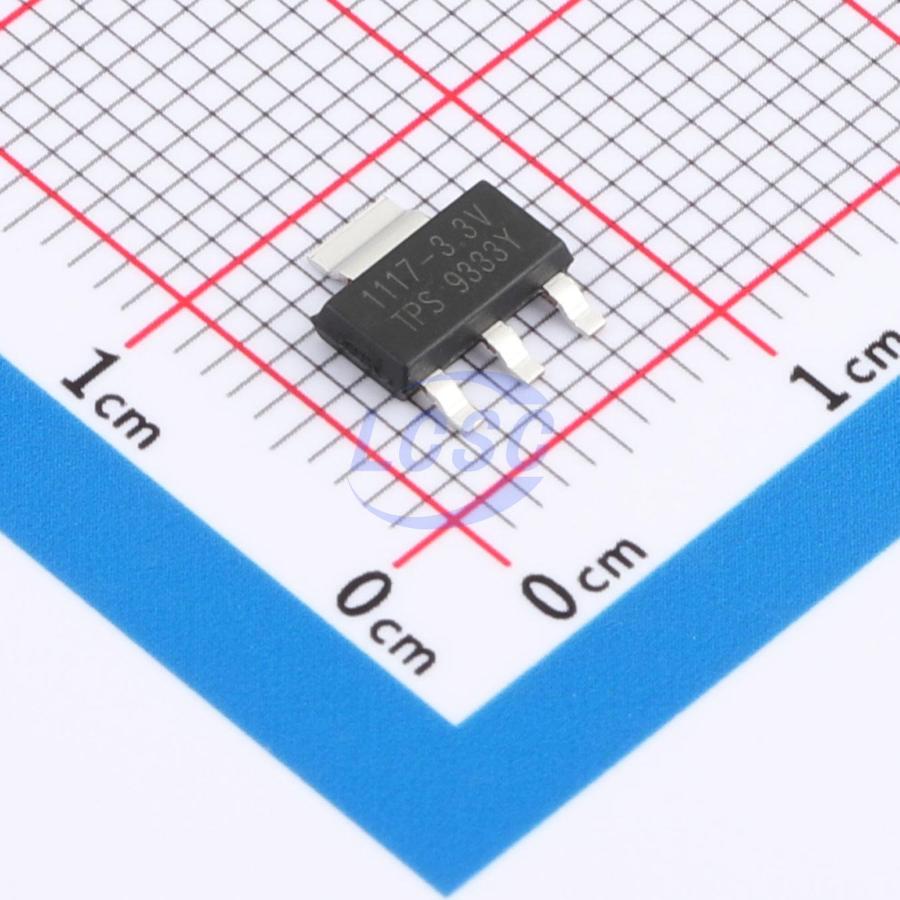

LM1117MPX-3.3-TP

3.3V Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-223-3RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: LM1117MPX-3.3-TP
Store part #: C52146072
Package / case: SOT-223-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,540 in stock

#C52146072

Stock & price checked 32 h ago

Quantity	Unit price	Pack price
10+	₹6.42	₹64.20
100+	₹5.05	₹505.00
300+	₹4.37	₹1,311.00
1,000+	₹3.85	₹3,850.00
4,000+	₹3.44	₹13,760.00
8,000+	₹3.23	₹25,840.00

Quantity (min 10, multiples of 10)

10 × ₹6.42

₹64.20

excl. GST

₹75.76 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LM1117MPX-3.3-TP

₹64.20 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -50℃~+140℃
Supply Current (Iq): 4mA
Output Configuration: Positive
Output Current: 1A
Features: Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.191 g

Overview

Applications

High-efficiency linear regulator
Post-regulator for switching DC/DC converters
Motherboard and graphics card power management
2.85V version for SCSI-2 active termination
Battery chargers
LCD monitors and LCD TVs
DVD decoder boards
ADSL modems

Key features

Maximum output current 1A
Three-terminal adjustable or fixed output
Maximum input voltage: 18V
Fast transient response
Current limiting, safe operating area, and thermal shutdown protection
Line regulation: 0.2%
Load regulation: 0.4%
Ambient temperature: -50℃ ~ +140℃
Available in SOT223-3 package
