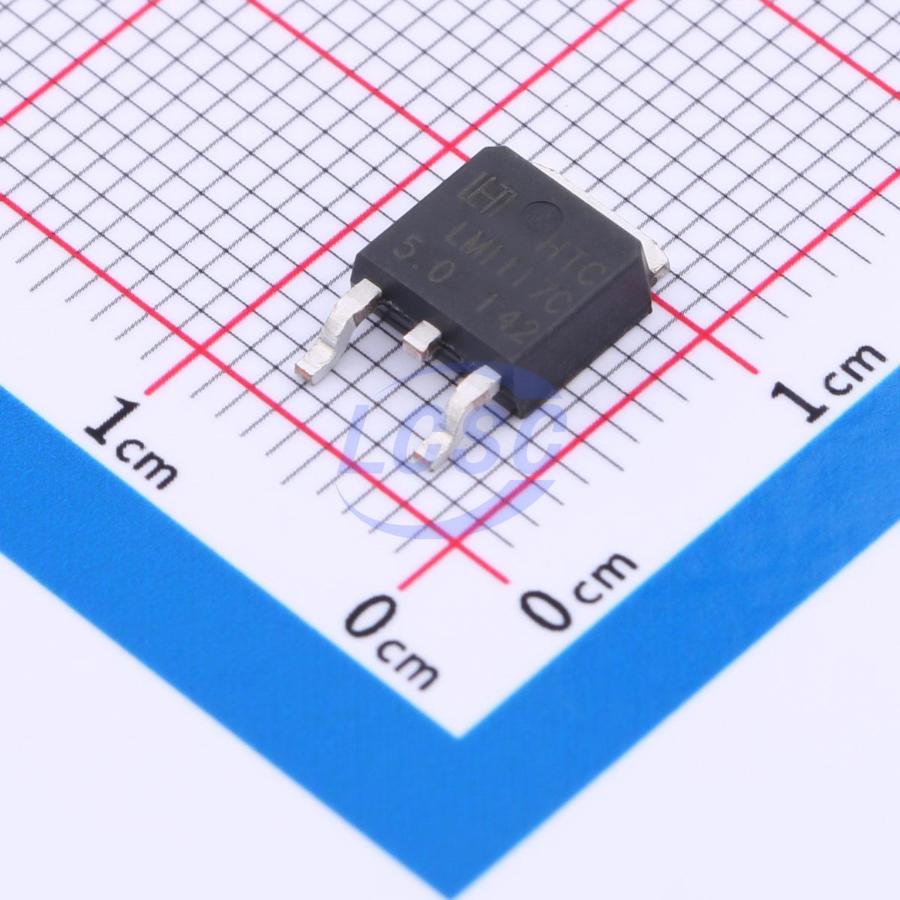

LM1117RS-5.0
Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-252
TO-252ROHS CompliantActive
1A LDO Voltage Regulator
- Manufacturer
- HTC
- Manufacturer part #
- LM1117RS-5.0
- Store part #
- C3015395
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,210 in stock
#C3015395
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.84 | ₹134.20 |
| 50+ | ₹23.42 | ₹1,171.00 |
| 150+ | ₹21.95 | ₹3,292.50 |
| 500+ | ₹20.11 | ₹10,055.00 |
| 2,500+ | ₹19.30 | ₹48,250.00 |
| 5,000+ | ₹18.80 | ₹94,000.00 |
5 × ₹26.84
₹134.20
excl. GST
₹158.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM1117RS-5.0
₹134.20 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.47 g
Overview
The LM1117 is a low power positive-voltage regulator designed to meet 1A output current. This device is an excellent choice for use in battery-powered applications, as active terminators for the SCSI bus, and portable computers. The LM1117 features very low quiescent current and very low dropout voltage of 1.2V at a full load and lower as output current decreases. LM1117 is available as an adjustable or fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V output voltages. The LM1117 is offered in a 3-pin surface mount package SOT-223, TO-252 & SOT-89. The output capacitor of 10μF or larger is needed for output stability of LM1117 as required by most of the other regulator circuits.
Applications
- Active SCSI Terminators
- Portable/ Plan Top/ Notebook Computers High Efficiency Linear Regulators
- SMPS Post Regulators
- Mother B/D Clock Supplies
- Disk Drives Battery Chargers
Key features
- Output Current up to 1.0A
- Low Dropout Voltage (1.2V at 1.0A Output current)
- Three Terminal Adjustable(ADJ) or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V
- Line Regulation typically at 0.1% typ.
- Load Regulation typically at 0.2% typ.
- Internal Current and Thermal Protection
- Maximum Input Voltage 20V
- Surface Mount Package SOT-223, TO-252, and SOT-89
- Moisture Sensitivity Level 3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMS1117CD-5.0#C347250UMW · TO-252-2 | UMW | TO-252-2 | 3,670 | ₹11.91 · 3,670 in stock | View |
 | CJU1117B-5.0#C17703060JSCJ · TO-252-2L | JSCJ | TO-252-2L | 1,610 | ₹23.35 · 1,610 in stock | View |
 | LM1117MDT-5.0/TR#C498158HGSEMI · TO-252 | HGSEMI | TO-252 | 900 | ₹15.89 · 900 in stock | View |
 | 78D05AL#C47120540UTC · TO-252 | UTC | TO-252 | 65 | ₹24.20 · 65 in stock | View |
 | AZ1117CD-5.0TRG1#C177004DIODES · TO-252-2 | DIODES | TO-252-2 | 35 | ₹31.74 · 35 in stock | View |
