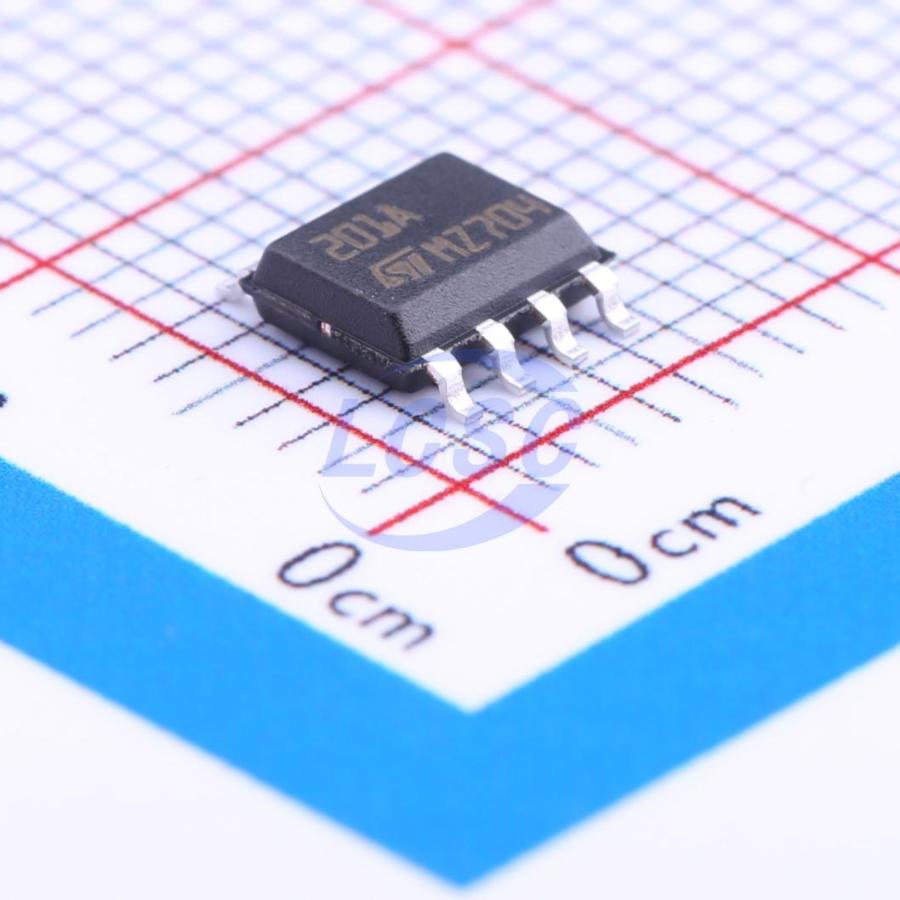

LM201ADT
10mA 1 2mV 10V/us 96dB 75nA 1MHz 1.8mA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
SINGLE OPERATIONAL AMPLIFIERS
- Manufacturer
- ST
- Manufacturer part #
- LM201ADT
- Store part #
- C27392
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,430 in stock
#C27392
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.78 | ₹218.90 |
| 50+ | ₹34.68 | ₹1,734.00 |
| 150+ | ₹30.77 | ₹4,615.50 |
| 500+ | ₹23.52 | ₹11,760.00 |
| 2,500+ | ₹21.35 | ₹53,375.00 |
| 5,000+ | ₹20.06 | ₹1,00,300.00 |
5 × ₹43.78
₹218.90
excl. GST
₹258.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM201ADT
₹218.90 for 5 + GST
Specifications
- Output Current
- 10mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 10V/us
- Input Offset Current(Ios)
- 1.5nA
- Operating Temperature
- -40℃~+105℃
- Common Mode Rejection Ratio(CMRR)
- 96dB
- Ib - Input Bias Current
- 75nA
- Input Offset Voltage Drift(Vos TC)
- 15uV/℃
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 1.8mA
- Features
- Decompensated stable
- Input Voltage Noise Density
- 25nV/√Hz@1kHz
- Dual Supply
- -22V~22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The LM101A is a general purpose operational amplifier which offers many features: supply voltages from ±5V to ±22V, low current drain, overload protection on the input and output, no latch-up when the common-mode range is exceeded, free from oscillations and compensation with a single 30pF capacitor. It has advantages over internally compensated amplifiers in that the compensation can be tailored to the particular application: slew rate of 10V/µs and bandwidth of 3.5MHz can be easily achieved.
Applications
- Simulated inductors
- Sine wave oscillators
- Instrumentation amplifiers
- Variable capacitance multipliers
- Low-frequency square wave generators
- Fast half-wave rectifiers
- Isolation of large capacitive loads
- High input impedance fast amplifiers
- Fast AC/DC converters
Key features
- supply voltages from ±5V to ±22V
- low current drain
- overload protection on the input and output
- no latch-up when the common-mode range is exceeded
- free from oscillations and compensation with a single 30pF capacitor
- compensation can be tailored to the particular application
- slew rate of 10V/µs
- bandwidth of 3.5MHz can be easily achieved
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM218IDRG4Q1#C2060545TI · SOIC-8 | TI | SOIC-8 | 5 | ₹371.55 · 5 in stock | View |
 | MC34072G-S08-R#C209930UTC · SOP-8 | UTC | SOP-8 | 4,870 | ₹26.18 · 4,870 in stock | View |
 | OPA132UA/2K5#C2057323TI · SOIC-8 | TI | SOIC-8 | 47 | ₹756.25 · 47 in stock | View |
| TLC071CDR#C2058288TI · SOIC-8 | TI | SOIC-8 | 22 | ₹254.77 · 22 in stock | View | |
 | MC33071ADR2G#C903940onsemi · SOIC-8 | onsemi | SOIC-8 | 4 | ₹38.00 · 4 in stock | View |
