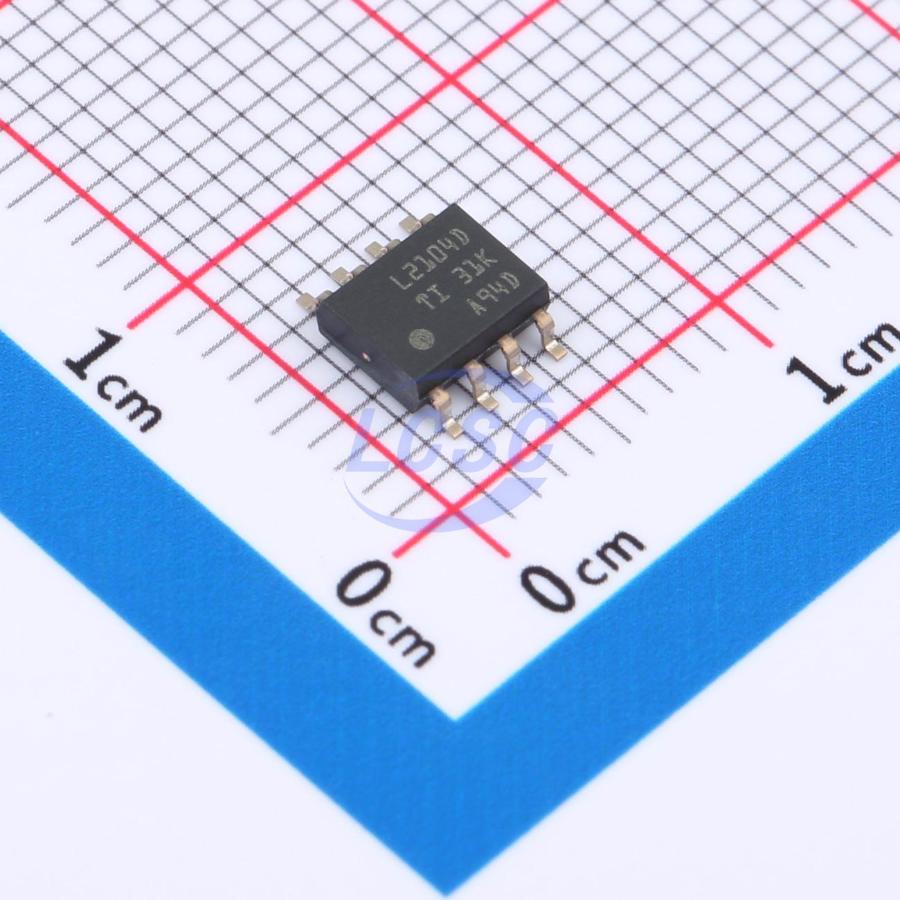

LM2104DR

LM2104 is a compact high-voltage gate driver designed to drive high-side and low-side N-channel MOSFETs in synchronous buck or half-bridge configurations. The IN pin enables use in single PWM input applications, and the SD pin allows the controller to shut down the driver outputs when the SD pin is low, regardless of the IN pin state. Fixed dead time and the ability to handle -1V DC and -19.5V transient negative voltages on the SH pin improve system robustness in high-noise applications. The LM2104 is available in an 8-pin SOIC package with a pin-compatible, industry-standard pinout. UVLO is provided on both the low-side and high-side supply rails to protect during power-up and power-down.

Applications

• Brushless DC (BLDC) motors
• Permanent magnet synchronous motors (PMSM)
• Servo and stepper motor drivers
• Cordless vacuum cleaners
• Cordless garden and power tools
• E-bikes and electric scooters
• Battery test equipment
• Offline UPS
• General-purpose MOSFET or IGBT drivers

Key features

• Drives two N-channel MOSFETs in half-bridge configuration
• Typical 8V UVLO on GVDD
• 107V absolute maximum voltage on BST
• Handles -19.5V absolute maximum negative transient voltage on SH
• 0.5A/0.8A peak source/sink current
• Typical 475ns fixed internal dead time
• Built-in cross-conduction protection
• Typical 115ns propagation delay
• Shutdown logic input pin SD
• Single input pin IN
