UMWDatasheet (PDF)

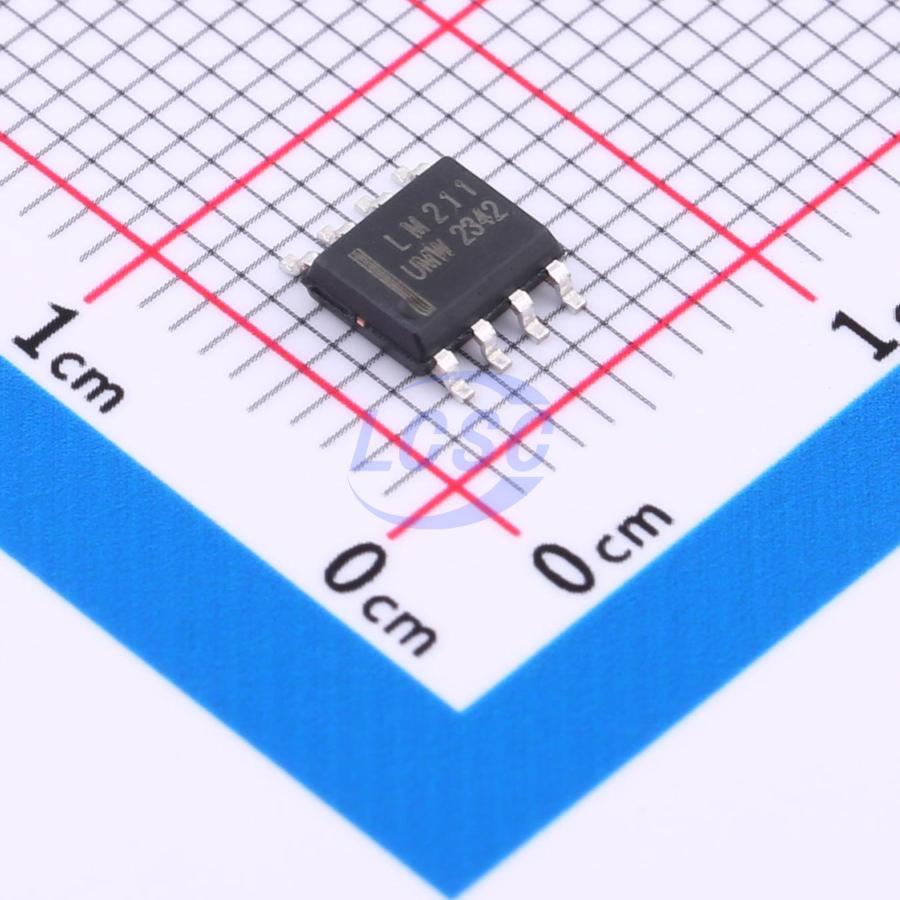

LM211DR(UMW)
700uV 45nA 1 SOP-8 Linear Comparators RoHS
SOP-8ROHS CompliantActive
High flexibility voltage comparator
- Manufacturer
- UMW
- Manufacturer part #
- LM211DR(UMW)
- Store part #
- C18212278
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,640 in stock
#C18212278
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.46 | ₹87.30 |
| 50+ | ₹13.67 | ₹683.50 |
| 150+ | ₹11.77 | ₹1,765.50 |
| 500+ | ₹10.36 | ₹5,180.00 |
| 2,500+ | ₹9.22 | ₹23,050.00 |
| 5,000+ | ₹8.65 | ₹43,250.00 |
5 × ₹17.46
₹87.30
excl. GST
₹103.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM211DR(UMW)
₹87.30 for 5 + GST
Specifications
- Dual Supply
- ±15V
- Vos - Input Offset Voltage
- 700uV
- Ib - Input Bias Current
- 45nA
- Quiescent Current
- 13.8mA
- Output Mode
- CMOS;TTL
- Propagation Delay Time
- 200ns
- Number of Channels
- 1
- Input Offset Current(Ios)
- 1.7nA
- Operating Temperature
- -25℃~+85℃
- Single Supply
- 5V~30V
- Response Time (tr)
- 200ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.188 g
Overview
The LM311DR and LM211DR operate from a single 5V to 30V supply or ±15V dual supply. The inputs of the LM311DR and LM211DR can be isolated from system ground, and the output can be referenced to ground or VEE. This flexibility allows the devices to drive DTL, RTL, TTL, or MOS logic levels. With an output current of 50mA, the output can switch up to 50V, making them suitable for driving relays, indicator lamps, or solenoids.
Key features
- Fast response time: 165ns
- Strobing capability
- Maximum input bias current: 300nA
- Maximum input offset current: 70nA
- Single 5V supply operation
- Q-Temp automotive high-reliability version available for automotive applications
- Configuration control and print support qualification compliant with automotive standards
