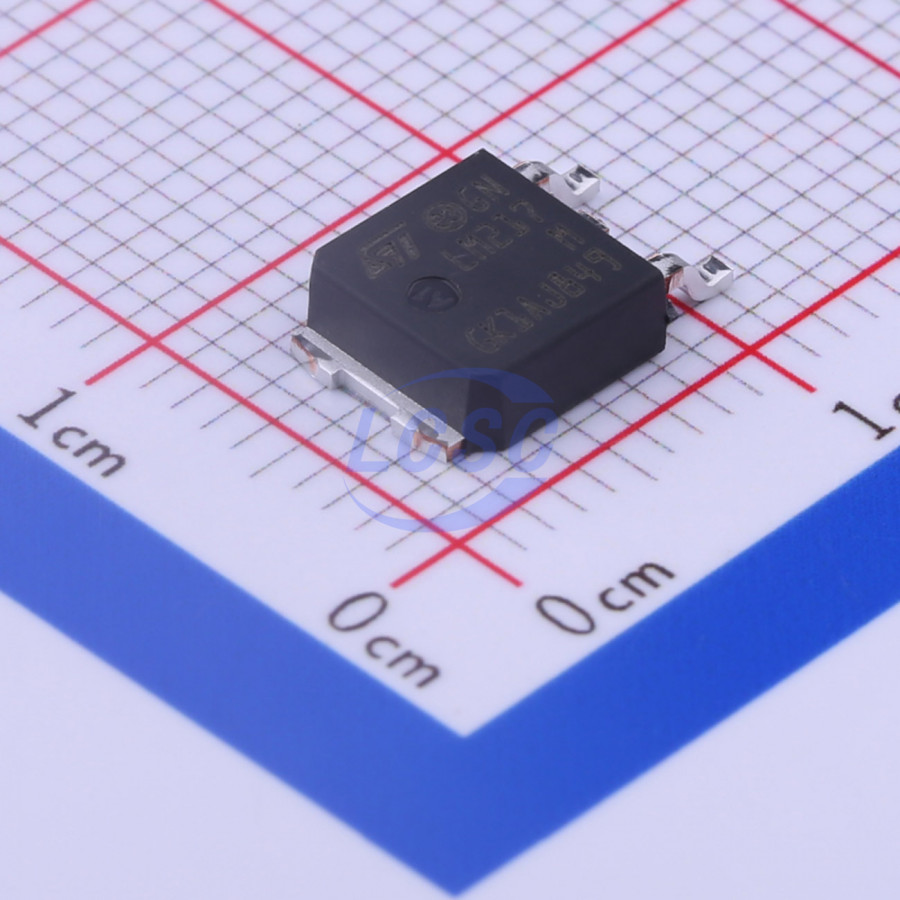

LM217MDT-TR
1.2V~37V Positive Adjustable DPAK Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DPAKROHS3 CompliantActive
Medium current 1.2 to 37 V adjustable voltage regulator
- Manufacturer
- ST
- Manufacturer part #
- LM217MDT-TR
- Store part #
- C176339
- Package / case
- DPAK
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,460 in stock
#C176339
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.92 | ₹224.60 |
| 50+ | ₹35.09 | ₹1,754.50 |
| 150+ | ₹30.88 | ₹4,632.00 |
| 500+ | ₹25.61 | ₹12,805.00 |
| 2,500+ | ₹23.27 | ₹58,175.00 |
| 5,000+ | ₹21.87 | ₹1,09,350.00 |
5 × ₹44.92
₹224.60
excl. GST
₹265.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM217MDT-TR
₹224.60 for 5 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 40V
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.476 g
Overview
The LM217M and LM317M are monolithic integrated circuits in DPAK package used as positive adjustable voltage regulators. They are designed to supply until 500 mA of load current with an output voltage adjustable over a 1.2 to 37 V range. The nominal output voltage is selected by one resistive divider only, making the device exceptionally easy to configure and avoiding the use of several fixed regulators.
Key features
- Output voltage range: 1.2 to 37 V
- Output current in excess of 500 mA
- Line regulation typ. 0.01%
- Load regulation typ. 0.1%
- Thermal overload protection
- Short-circuit protection
- Output transition safe area compensation
- Floating operation for high voltage applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT317ARMZ#C2998014HTCSEMI · TO-252-2 | HTCSEMI | TO-252-2 | 2,408 | ₹38.46 · 2,408 in stock | View |
 | LM317ML-TN3-R#C167122UTC · TO-252-2(DPAK) | UTC | TO-252-2(DPAK) | 505 | ₹30.63 · 505 in stock | View |
 | LM317AMDT/TR#C7432320HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | 1,525 | ₹28.87 · 1,525 in stock | View |
 | NCV317MBDTRKG#C233374onsemi · DPAK | onsemi | DPAK | 119 | ₹85.06 · 119 in stock | View |
| LM317MABDTRKG#C427699onsemi · TO-252-2 | onsemi | TO-252-2 | 3,900 | ₹35.77 · 3,900 in stock | View | |
