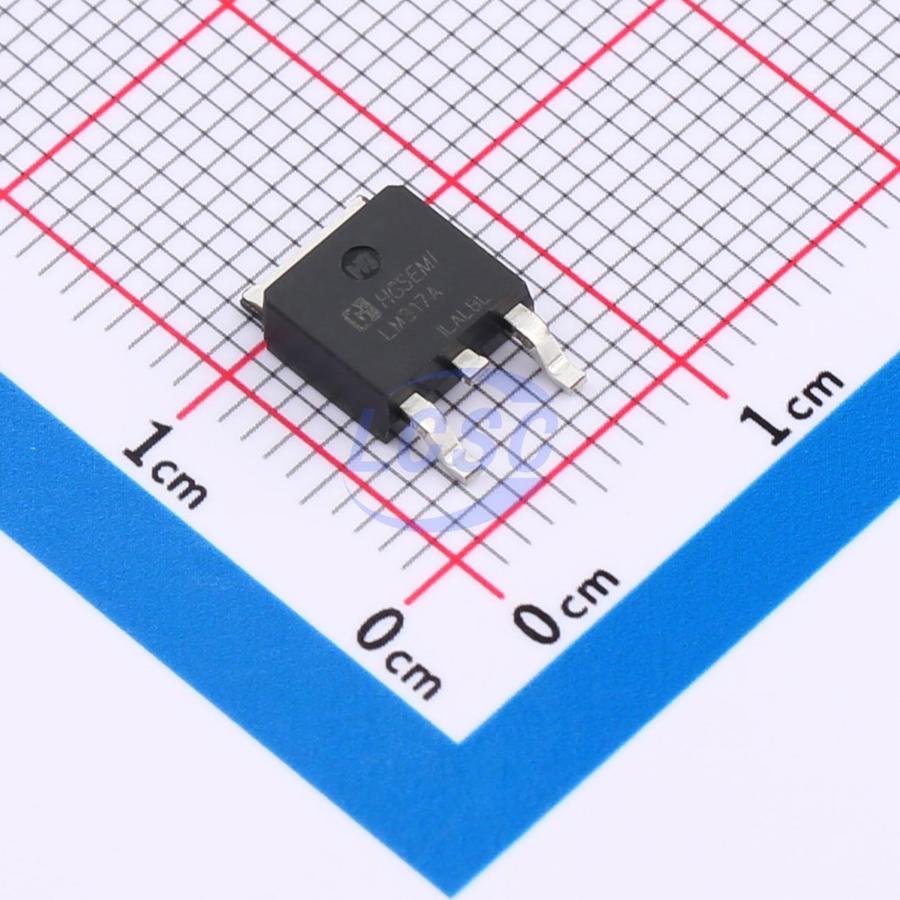

LM317AMDT/TR
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A TO-252-2
TO-252-2RoHSActive
Three-Terminal Adjustable Positive Voltage Regulator
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM317AMDT/TR
- Store part #
- C7432320
- Package / case
- TO-252-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,525 in stock
#C7432320
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.87 | ₹144.35 |
| 50+ | ₹22.62 | ₹1,131.00 |
| 150+ | ₹19.95 | ₹2,992.50 |
| 500+ | ₹16.62 | ₹8,310.00 |
| 2,500+ | ₹15.14 | ₹37,850.00 |
| 5,000+ | ₹14.24 | ₹71,200.00 |
5 × ₹28.87
₹144.35
excl. GST
₹170.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM317AMDT/TR
₹144.35 for 5 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1.5A
- Output Type
- Adjustable
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.525 g
Overview
LM317 is an adjustable three-terminal positive voltage regulator capable of supplying over 1.5A across an output voltage range of 1.2V to 37V. The regulator is easy to use, requiring only two external resistors to set the output voltage. It integrates current limiting, thermal shutdown, and safe operating area compensation, providing robust protection.
Applications
- Local regulation
- On-card regulation
- Precision current regulator
- Output voltage regulator
Key features
- Adjustable output voltage down to 1.2V
- Maximum output current 1.5A
- Output short-circuit protection
- Overcurrent and overtemperature protection
- Pass transistor safe operating area protection
- Standard 3-terminal transistor package
- High reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM317MDT/TR#C2926385HGSEMI · TO-252-2L | HGSEMI | TO-252-2L | 1,120 | ₹27.32 · 1,120 in stock | View |
 | LM317MDT/HG#C53311455HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | 1,335 | ₹17.00 · 1,335 in stock | View |
 | LM350HDT/TR-HG#C54348635HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | 2,325 | ₹82.13 · 2,325 in stock | View |
