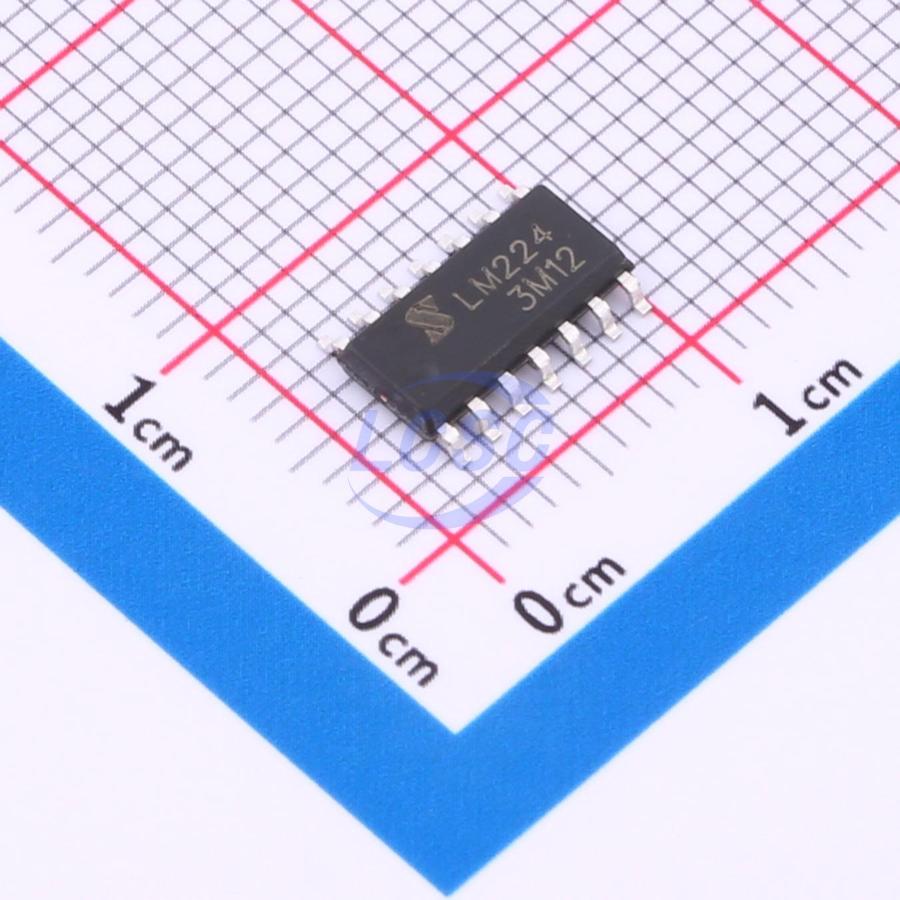

LM224
20mA 4 7mV 100dB 300nA 700uA SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-14ROHS CompliantActive
QUADRUPLE OPERATIONAL AMPLIFIERS
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LM224
- Store part #
- C5456629
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,420 in stock
#C5456629
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.07 | ₹75.35 |
| 50+ | ₹11.76 | ₹588.00 |
| 150+ | ₹10.11 | ₹1,516.50 |
| 500+ | ₹8.86 | ₹4,430.00 |
| 2,500+ | ₹8.45 | ₹21,125.00 |
| 5,000+ | ₹7.95 | ₹39,750.00 |
5 × ₹15.07
₹75.35
excl. GST
₹88.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM224
₹75.35 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 7mV
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -25℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 300nA
- Quiescent Current
- 700uA
- Features
- Built-in compensation
- Dual Supply
- 3V~30V
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.259 g
Overview
LM224 consist of four independent, high-gain, frequency compensated operational amplifiers which are designed to operate from a single power supply over a wide range of voltage. Operation from split supplies is also possible so long as the difference between the two supplies is 3V~30V. The low supply current drain is independent of the magnitude of the supply voltage. The device can easily be implemented in single supply voltage system, including transducer amplifiers, DC gain blocks, and all of conventional OP Amp circuits.
Key features
- Wide Supply Voltage Range. (Single Supply: 3~30V)
- Low Supply Current Drain Independent of Supply Voltage: 0.8 mA Typ
- Large DC voltage gain: 100dB
- Input Common-Mode Voltage Range Includes Ground.
- Low Input Bias and Offset Parameters
- Differential Input Voltage Range Equal to Maximum Rated Supply Voltage: 32V
- Open-Loop Differential Voltage Amplification: 100 V/mV Typ
- Internal Frequency Compensation for Unity Gain
