Slkor

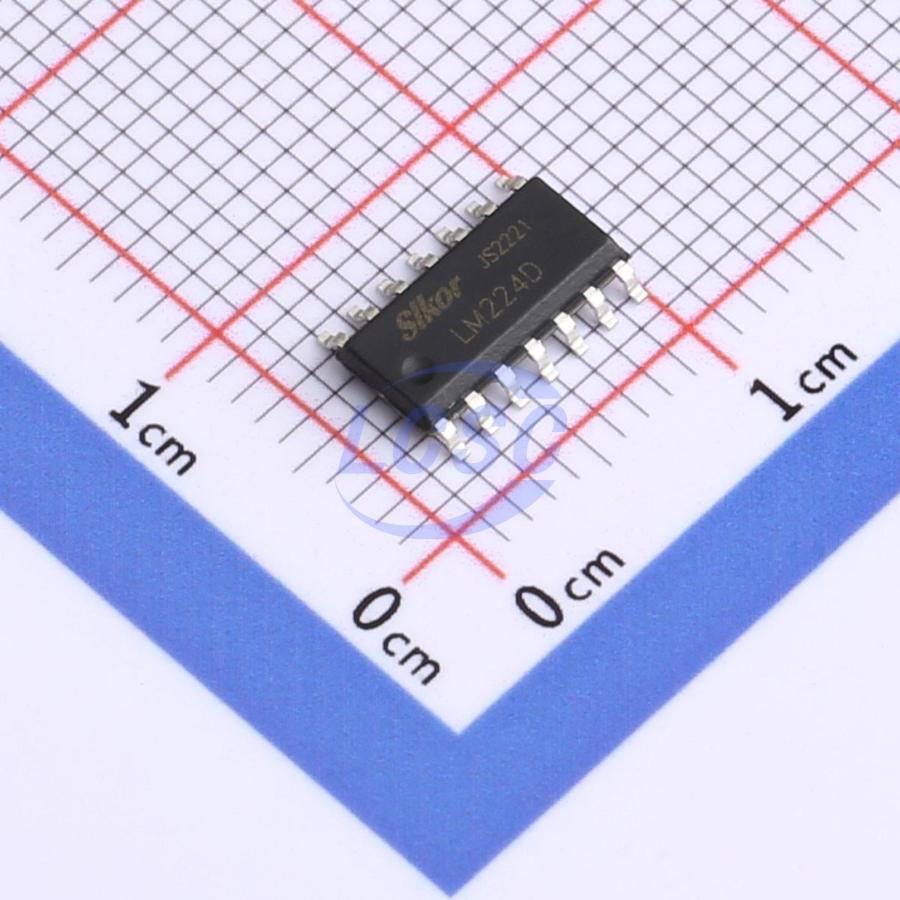

LM224D

30mA 4 3mV 80dB 150nA 700uA SOP-14 Instrumentation, Op Amps, Buffer Amps

SOP-14RoHSActive

QUADRUPLE OPERATIONAL AMPLIFIERS

Manufacturer: Slkor
Manufacturer part #: LM224D
Store part #: C5122587
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,175 in stock

#C5122587

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹25.73	₹128.65
50+	₹20.26	₹1,013.00
150+	₹17.91	₹2,686.50
500+	₹14.98	₹7,490.00
2,500+	₹13.12	₹32,800.00
5,000+	₹12.33	₹61,650.00

Quantity (min 5, multiples of 5)

5 × ₹25.73

₹128.65

excl. GST

₹151.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM224D

₹128.65 for 5 + GST

Specifications

Output Current: 30mA
Number of Channels: 4
Vos - Input Offset Voltage: 3mV
Input Offset Current(Ios): 2nA
Operating Temperature: -25℃~+85℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 150nA
Quiescent Current: 700uA
Features: Built-in compensation
Dual Supply: -32V~32V
Single Supply: 3V~30V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.75 g

Overview

These devices consist of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply over a wide range of voltages. Operation from split supplies is also possible when the difference between the two supplies is 3V to 30V (for the LM2902 and LM2902Q, 3V to 26V) and Vcc is at least 1.5V more positive than the input common-mode voltage. The low supply current drain is independent of the magnitude of the supply voltage.

Applications

transducer amplifiers
dc amplification blocks
all the conventional operational amplifier circuits that now can be more easily implemented in single-supply-voltage systems

Key features

Wide Range of Supply Voltages: Single Supply…3V to 30V (LM2902 and LM2902Q 3V to 26V), or Dual Supplies
Low Supply Current Drain Independent of Supply Voltage …0.8mA Typ
Common-Mode Input Voltage Range Includes Ground Allowing Direct Sensing Near Ground
Low Input Bias and Offset Parameters: Input Offset Voltage … 3mV Typ A Versions… 2 mV Typ Input Offset Current … 2nA Typ Input Bias Current … 20nA Typ A Versions … 15nA Typ
Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage… 32V (26V for LM2902 and LM2902Q)
Open-Loop Differential Voltage Amplification … 100V/mV Typ
Internal Frequency Compensation
