lingxingic

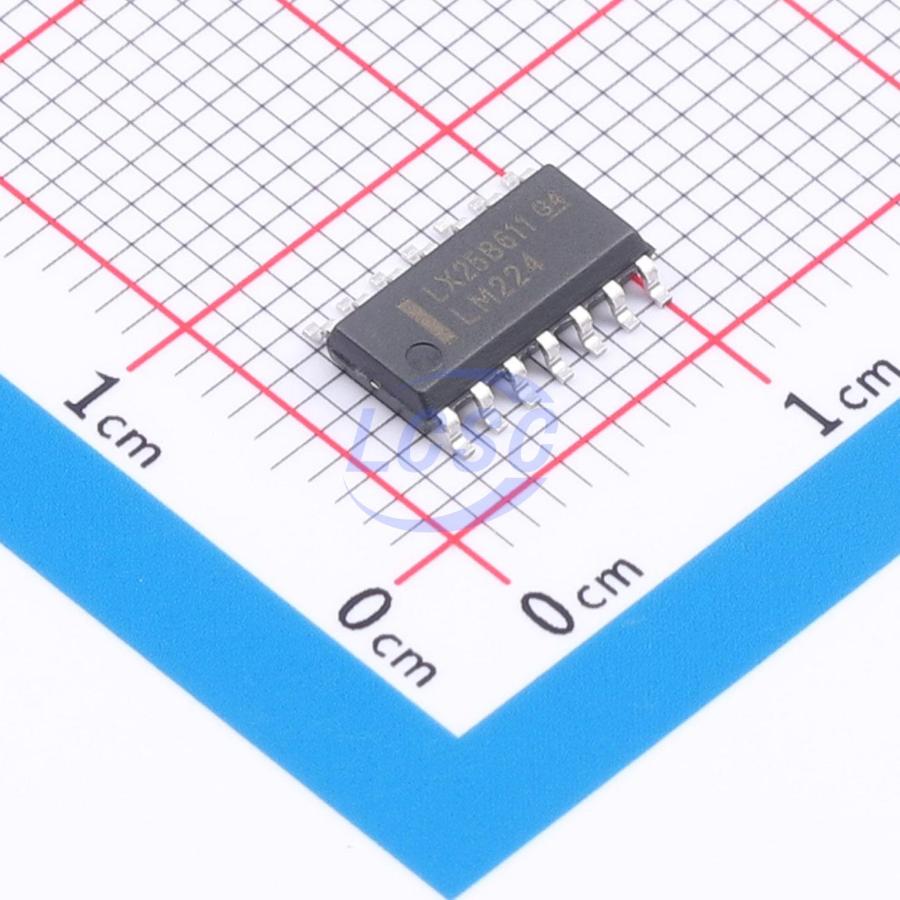

LM224DR(LX)

20nA 800uA 1.2MHz SOP-14 Audio Amplifiers

SOP-14RoHSActive

Manufacturer: lingxingic
Manufacturer part #: LM224DR(LX)
Store part #: C54819678
Package / case: SOP-14
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,995 in stock

#C54819678

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹16.95	₹84.75
50+	₹13.45	₹672.50
150+	₹11.72	₹1,758.00
500+	₹10.41	₹5,205.00
2,500+	₹9.37	₹23,425.00
4,000+	₹8.85	₹35,400.00

Quantity (min 5, multiples of 5)

5 × ₹16.95

₹84.75

excl. GST

₹100.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

LM224DR(LX)

₹84.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

number of channels: 4
Ib - Input Bias Current: 20nA
Operating Temperature: -40℃~+125℃
Input Offset Current(Ios): 2nA
Vos - Input Offset Voltage: 3mV
Output Current: 30mA
Common Mode Rejection Ratio (CMRR): 80dB
Quiescent Current: 800uA
Gain Bandwidth Product: 1.2MHz
Single Supply: 3V~36V
Dual Supply: -18V~-1.5V;1.5V~18V
Slew Rate: 500V/ms
Noise density(eN): 35nV/√Hz@1kHz

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.13 g

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	LM2902DR(LX)#C41430937lingxingic · SOP-14	lingxingic	SOP-14	735	₹13.22 · 735 in stock	View
	LM324DR(LX)#C24833652lingxingic · SOP-14	lingxingic	SOP-14	1,840	₹10.86 · 1,840 in stock	View
