TIDatasheet (PDF)

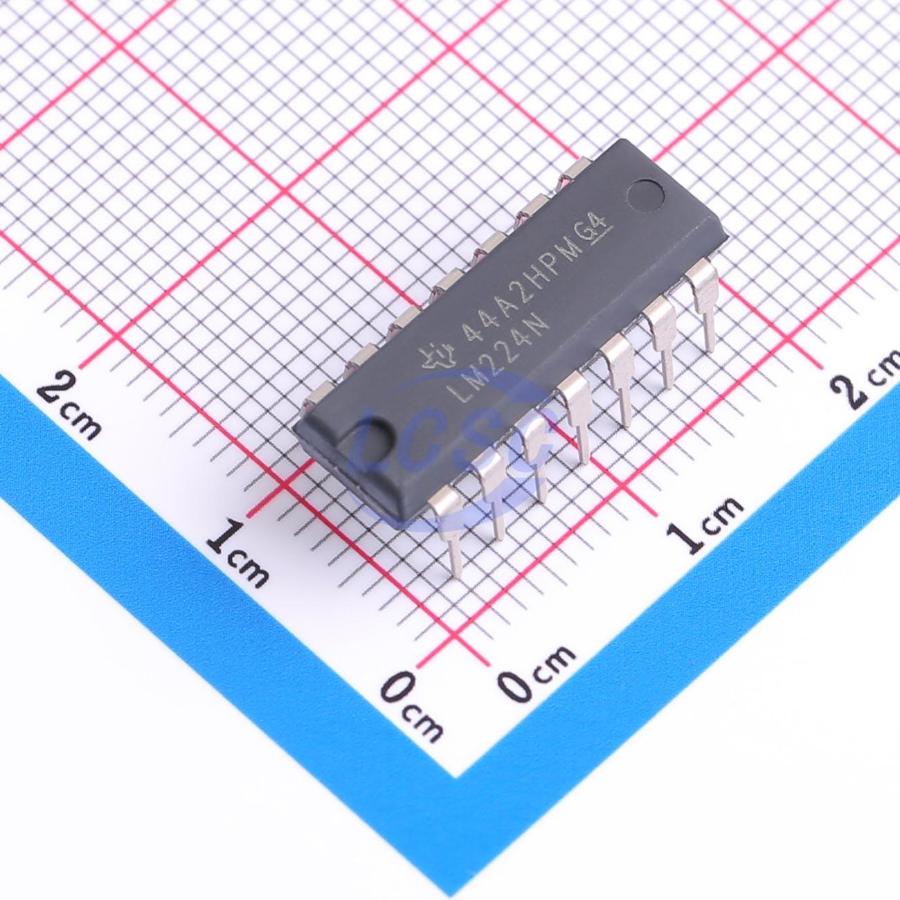

LM224N
20mA 4 3mV 500V/ms 80dB 20nA 300uA DIP-14 Instrumentation, Op Amps, Buffer Amps RoHS
DIP-14ROHS3 CompliantActive
QUADRUPLE OPERATIONAL AMPLIFIERS
- Manufacturer
- TI
- Manufacturer part #
- LM224N
- Store part #
- C5216
- Package / case
- DIP-14
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,385 in stock
#C5216
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹61.52 | ₹307.60 |
| 50+ | ₹46.61 | ₹2,330.50 |
| 150+ | ₹40.88 | ₹6,132.00 |
| 500+ | ₹33.74 | ₹16,870.00 |
| 2,500+ | ₹30.55 | ₹76,375.00 |
| 5,000+ | ₹28.64 | ₹1,43,200.00 |
5 × ₹61.52
₹307.60
excl. GST
₹362.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
LM224N
₹307.60 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 30nA
- Operating Temperature
- -25℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 20nA
- Quiescent Current
- 300uA
- Features
- EMI filtering/RF suppression
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.84 g
Overview
These devices consist of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply over a wide range of voltages. Operation from split supplies is also possible when the difference between the two supplies is 3 V to 30 V (for the LM2902 and LM2902Q, 3 V to 26 V) and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply current drain is independent of the magnitude of the supply voltage.
Applications
- transducer amplifiers
- dc amplification blocks
- all the conventional operational amplifier circuits that now can be more easily implemented in single-supply-voltage systems
Key features
- Wide Range of Supply Voltages: Single Supply... 3 V to 30 V (LM2902 and LM2902Q 3 V to 26 V), or Dual Supplies
- Low Supply Current Drain Independent of Supply Voltage... 0.8 mA Typ
- Common-Mode Input Voltage Range Includes Ground Allowing Direct Sensing Near Ground
- Low Input Bias and Offset Parameters: Input Offset Voltage... 3 mV Typ A Versions... 2 mV Typ Input Offset Current... 2 nA Typ Input Bias Current... 20 nA Typ A Versions... 15 nA Typ
- Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage... 32 V (26 V for LM2902 and LM2902Q)
- Open-Loop Differential Voltage Amplification... 100 V/mV Typ
- Internal Frequency Compensation
