JSMSEMIDatasheet (PDF)

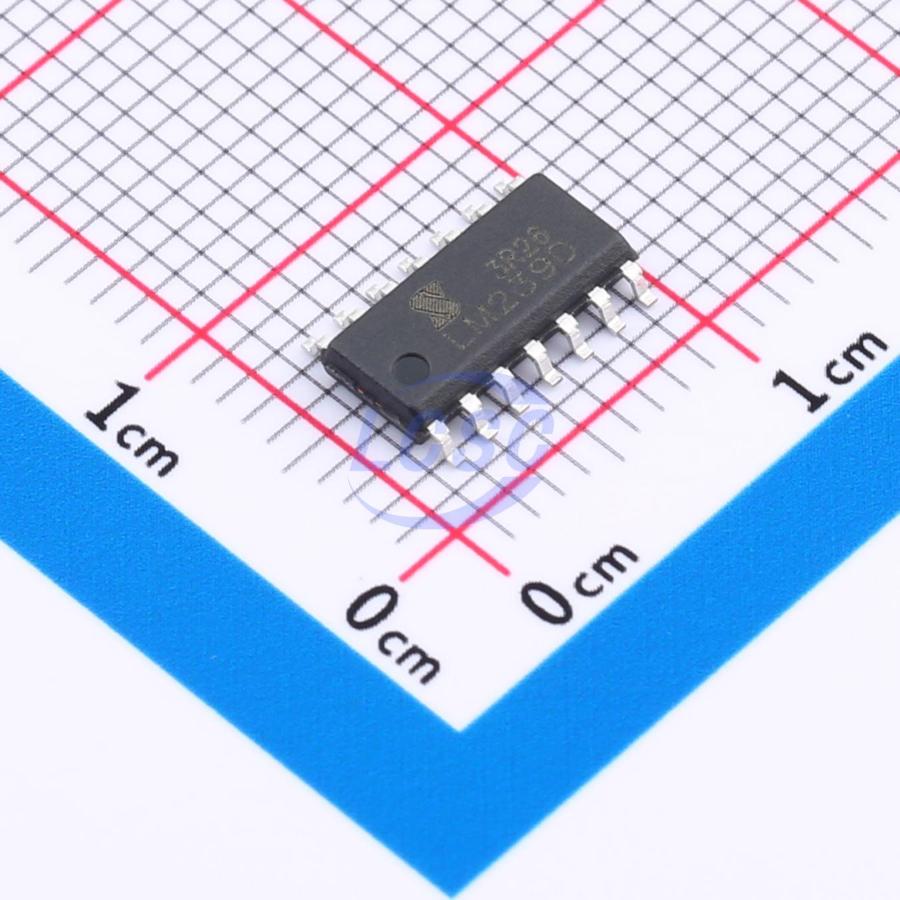

LM239DR-JSM
2mV 25nA Four channels SOP-14 Linear Comparators RoHS
SOP-14ROHS CompliantActive
Four-channel differential comparator
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LM239DR-JSM
- Store part #
- C18198373
- Package / case
- SOP-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,580 in stock
#C18198373
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.68 | ₹83.40 |
| 50+ | ₹13.04 | ₹652.00 |
| 150+ | ₹11.23 | ₹1,684.50 |
| 500+ | ₹9.88 | ₹4,940.00 |
| 2,500+ | ₹9.25 | ₹23,125.00 |
| 5,000+ | ₹8.69 | ₹43,450.00 |
5 × ₹16.68
₹83.40
excl. GST
₹98.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM239DR-JSM
₹83.40 for 5 + GST
Specifications
- Quiescent Current
- 2mA
- Output Mode
- CMOS;TTL
- Operating Temperature
- -25℃~+105℃
- Dual Supply
- ±18V
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 25nA
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 5nA
- Response Time (tr)
- 1.3ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.274 g
Overview
LM239 is a quad comparator IC primarily used in consumer and industrial electronics for level detection and low-level sensing. The LM239 comes in an SOP-14 package and operates over a temperature range of -25°C to 105°C.
Key features
- Single or dual supply operation
- Low input bias current: 25nA (typical)
- Low input offset current: ±5.0nA (typical)
- Low output saturation voltage: 130mV
- TTL and CMOS compatible
