HANSCHIP semiconductorDatasheet (PDF)

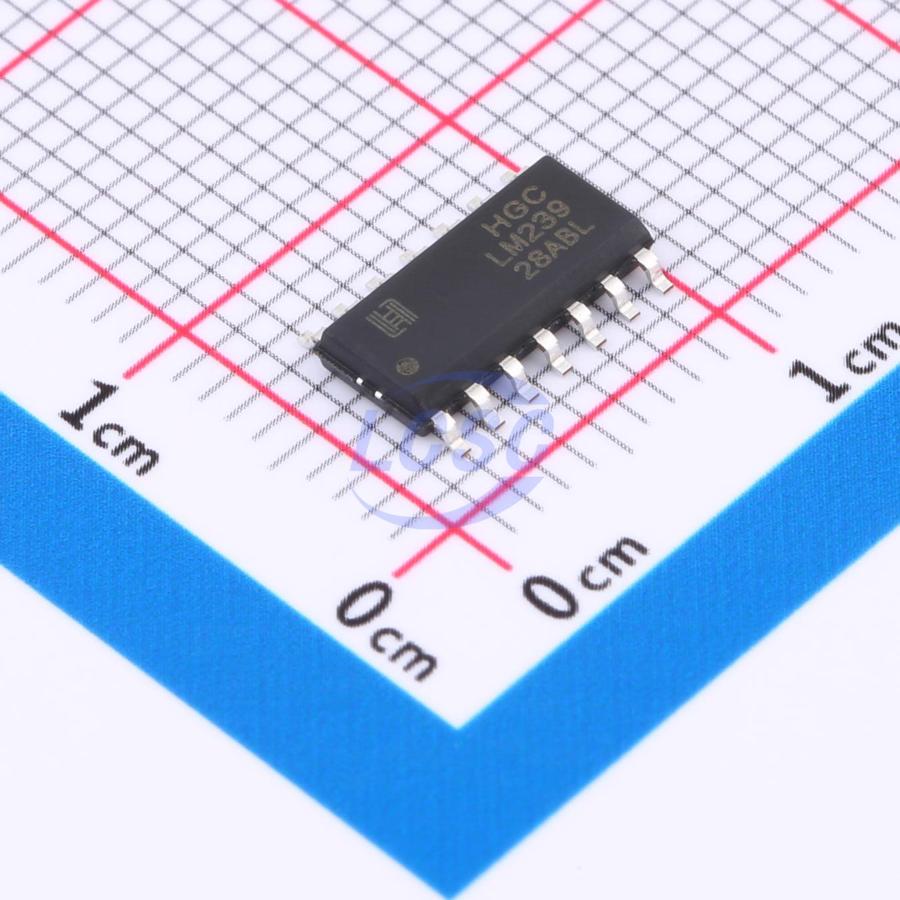

LM239DRG
3mV 25nA Four channels SOP-14 Linear Comparators RoHS
SOP-14ROHS CompliantActive
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LM239DRG
- Store part #
- C5145323
- Package / case
- SOP-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,630 in stock
#C5145323
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.24 | ₹61.20 |
| 50+ | ₹9.74 | ₹487.00 |
| 150+ | ₹8.49 | ₹1,273.50 |
| 500+ | ₹7.55 | ₹3,775.00 |
| 2,500+ | ₹6.50 | ₹16,250.00 |
| 5,000+ | ₹6.11 | ₹30,550.00 |
5 × ₹12.24
₹61.20
excl. GST
₹72.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM239DRG
₹61.20 for 5 + GST
Specifications
- Dual Supply
- 1.5V~16V
- Vos - Input Offset Voltage
- 3mV
- Quiescent Current
- 800uA
- Ib - Input Bias Current
- 25nA
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 3V~32V
- Response Time (tr)
- 1.3ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.27 g
Overview
LM239/LM339 is a quad comparator IC primarily used for voltage level detection and low-level sensing in consumer and industrial electronics. The LM339 operates over a temperature range of 0℃ to 70℃. The LM239 operates over a temperature range of -40℃ to 85℃. Available in DIP-14, SOP-14, and TSSOP-14 packages.
Key features
- Single or dual supply operation
- Low input bias current: 25nA (typical)
- Low input offset current: ±5.0nA (typical)
- Low output saturation voltage: 130mV
- TTL and CMOS logic level compatible
