HGSEMIDatasheet (PDF)

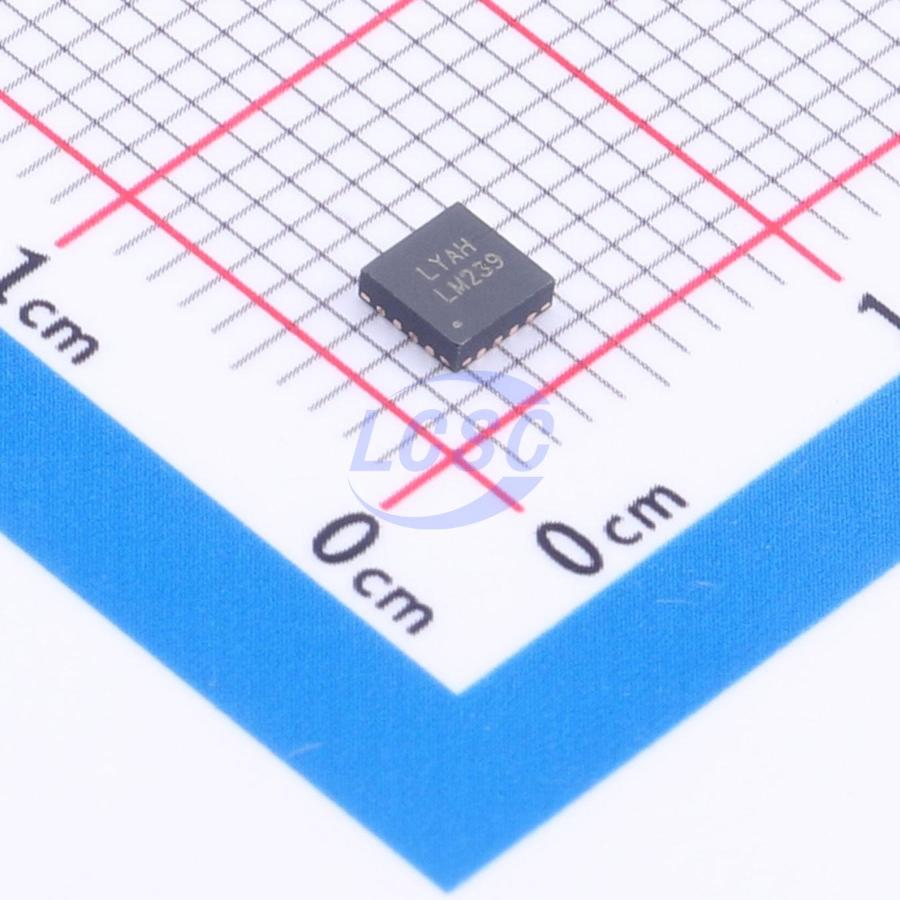

LM239LQ/TR-HG
3mV 25nA 4 QFN-16(3x3) Linear Comparators
QFN-16(3x3)RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM239LQ/TR-HG
- Store part #
- C53374692
- Package / case
- QFN-16(3x3)
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,840 in stock
#C53374692
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.10 | ₹90.50 |
| 50+ | ₹14.38 | ₹719.00 |
| 150+ | ₹12.52 | ₹1,878.00 |
| 500+ | ₹11.13 | ₹5,565.00 |
| 2,500+ | ₹10.00 | ₹25,000.00 |
| 5,000+ | ₹9.45 | ₹47,250.00 |
5 × ₹18.10
₹90.50
excl. GST
₹106.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
LM239LQ/TR-HG
₹90.50 for 5 + GST
Specifications
- Dual Supply
- -16V~-1.5V;1.5V~16V
- Vos - Input Offset Voltage
- 3mV
- Quiescent Current
- 800uA
- Ib - Input Bias Current
- 25nA
- Output Mode
- CMOS;TTL
- Number of Channels
- 4
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 3V~32V
- Response Time (tr)
- 1.3ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.179 g
Overview
LM239/LM339 is a quad comparator IC primarily used in consumer and industrial electronics for level detection and low-level sensing. Available in DIP-14, SOP-14, TSSOP-14, QSOP-16, and QFN-16 packages. The LM339 operates over a temperature range of 0°C to 70°C. The LM239 operates over a temperature range of -40°C to 85°C.
Key features
- Single or dual supply operation
- Low input bias current: 25nA (typical)
- Low input offset current: ±5.0nA (typical)
- Low output saturation voltage: 130mV
- TTL and CMOS compatible
