UMWDatasheet (PDF)

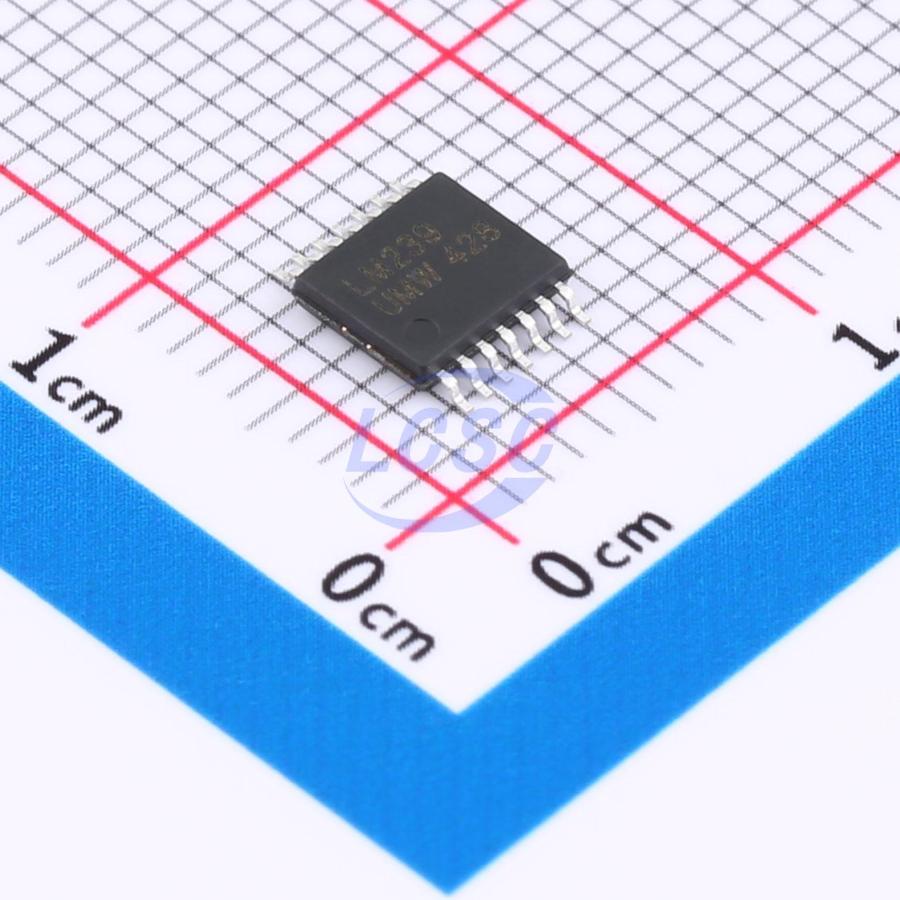

LM239PT(UMW)
2mV 25nA Four channels TSSOP-14 Linear Comparators RoHS
TSSOP-14ROHS CompliantActive
Comparator with wide power supply range and low power consumption
- Manufacturer
- UMW
- Manufacturer part #
- LM239PT(UMW)
- Store part #
- C41367203
- Package / case
- TSSOP-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,540 in stock
#C41367203
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.29 | ₹86.45 |
| 50+ | ₹13.57 | ₹678.50 |
| 150+ | ₹11.72 | ₹1,758.00 |
| 500+ | ₹10.32 | ₹5,160.00 |
| 2,500+ | ₹9.21 | ₹23,025.00 |
| 4,000+ | ₹8.65 | ₹34,600.00 |
5 × ₹17.29
₹86.45
excl. GST
₹102.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM239PT(UMW)
₹86.45 for 5 + GST
Specifications
- Dual Supply
- 1V~18V;-18V~-1V
- Vos - Input Offset Voltage
- 2mV
- Quiescent Current
- 800uA
- Ib - Input Bias Current
- 25nA
- Output Mode
- CMOS;TTL
- Number of Channels
- Four channels
- Propagation Delay Time
- 1.3us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -20℃~+85℃
- Single Supply
- 2V~36V
- Response Time (tr)
- 0.3us
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.153 g
Overview
Key features
- Wide supply voltage range
- Single supply: 2V to 36V (non-V suffix devices tested to 30V, V suffix devices tested to 32V)
- Dual supply: ±1V to ±18V (non-V suffix devices tested to ±15V, V suffix devices tested to ±16V)
- Low supply current drain, independent of supply voltage: 0.8mA (typical)
- Low input bias current: 25nA (typical)
- Low input offset current: 3nA (typical) (LM139)
- Low input offset voltage: 2mV (typical)
- Common-mode input voltage range includes ground
- Differential input voltage range equal to maximum rated supply voltage: ±36V
- Low output saturation voltage
- Output compatible with TTL, MOS, and CMOS
