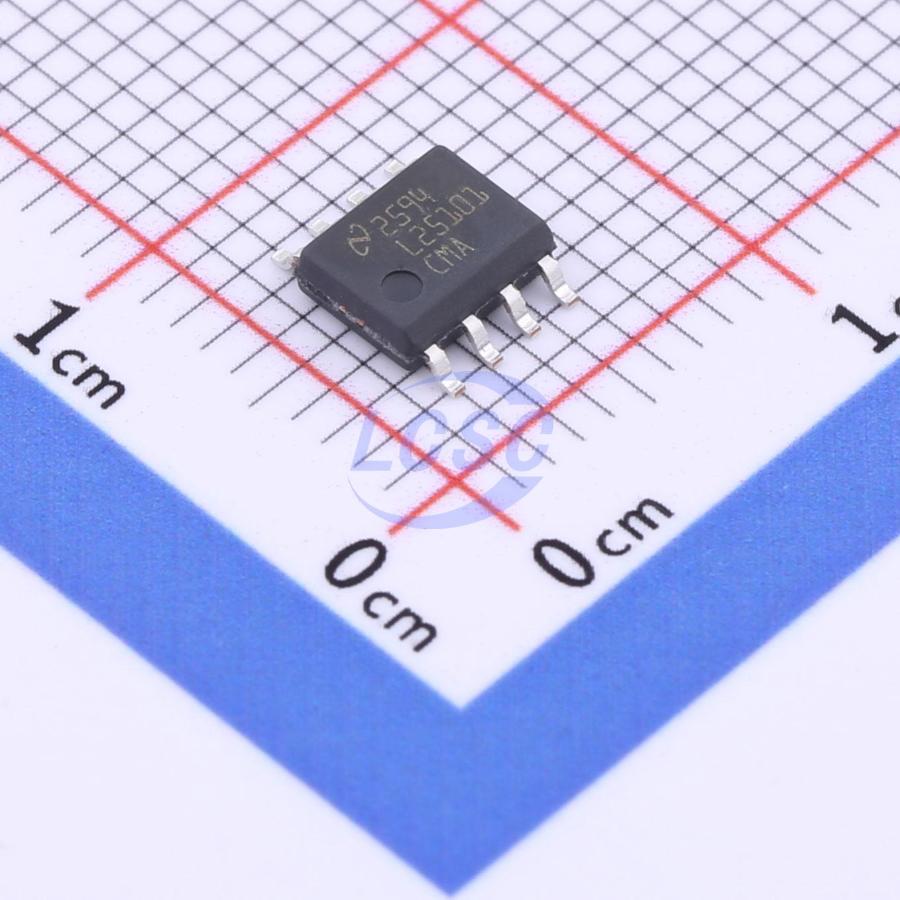

LM25101CMAX/NOPB
Half-Bridge Gate Driver IC MOSFET SOIC-8
80V half-bridge gate driver
- Manufacturer
- TI
- Manufacturer part #
- LM25101CMAX/NOPB
- Store part #
- C2869022
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,067 in stock
#C2869022
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹327.10 | ₹327.10 |
| 10+ | ₹278.66 | ₹2,786.60 |
| 30+ | ₹248.47 | ₹7,454.10 |
| 100+ | ₹195.26 | ₹19,526.00 |
| 500+ | ₹181.15 | ₹90,575.00 |
| 1,000+ | ₹175.28 | ₹1,75,280.00 |
1 × ₹327.10
₹327.10
excl. GST
₹385.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM25101CMAX/NOPB
₹327.10 for 1 + GST
Specifications
- Low Level Delay Time
- 26ns
- High Level Delay Time
- 22ns
- Quiescent Current
- 250uA
- Input Logic Level - High
- 1.3V~2.3V
- Voltage - Supply
- 9V~14V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1A
- Rise Time
- 990ns
- Fall Time
- 8ns
- Features
- Built-in bootstrap diode
- Current - Output High(IOH)
- 1A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
The LM25101 high-voltage gate driver is designed to drive high-side and low-side N-channel MOSFETs in synchronous buck or half-bridge configurations. Version A provides up to 3A gate drive, while versions B and C provide 2A and 1A gate drive, respectively. The outputs are independently controlled by TTL input thresholds. The device integrates a high-voltage diode for charging the high-side gate drive bootstrap capacitor. The robust level shifter offers both high operating speed and low power consumption, providing clean level translation from the control logic to the high-side gate driver. The device provides UVLO on both the low-side and high-side supply rails.
Applications
- Motor-controlled drives
- Half-bridge and full-bridge power converters
- Synchronous buck converters
- Double-switch forward power converters
- Active clamp forward converters
- 48V server power supplies
- Solar DC-DC and DC-AC converters
Key features
- Independent high-side and low-side driver logic inputs
- Bootstrap supply voltage up to 100V DC
- Drives both high-side and low-side N-channel MOSFETs
- Short propagation time (typical 25ns)
- Drives 1000pF load with 8ns rise and fall times
- Excellent propagation delay matching (typical 3ns)
- Supply rail UVLO support
- Low power consumption
- Pin-compatible with HIP2100 and HIP2101
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM5101AMX/NOPB#C575559TI · SOIC-8 | TI | SOIC-8 | 2,342 | ₹156.06 · 2,342 in stock | View |
 | LM25101AMX/NOPB#C575561TI · SOIC-8 | TI | SOIC-8 | 3 | ₹581.99 · 3 in stock | View |
| LM5101AMR/NOPB#C1524107TI · SO-8 | TI | SO-8 | 14 | ₹276.36 · 14 in stock | View | |
 | LM5101BMAX/NOPB#C2677266TI · SOIC-8 | TI | SOIC-8 | 24 | ₹423.12 · 24 in stock | View |
 | ISL2111ABZ#C1524111RENESAS · SOIC-8 | RENESAS | SOIC-8 | 29 | ₹1,377.32 · 29 in stock | View |
