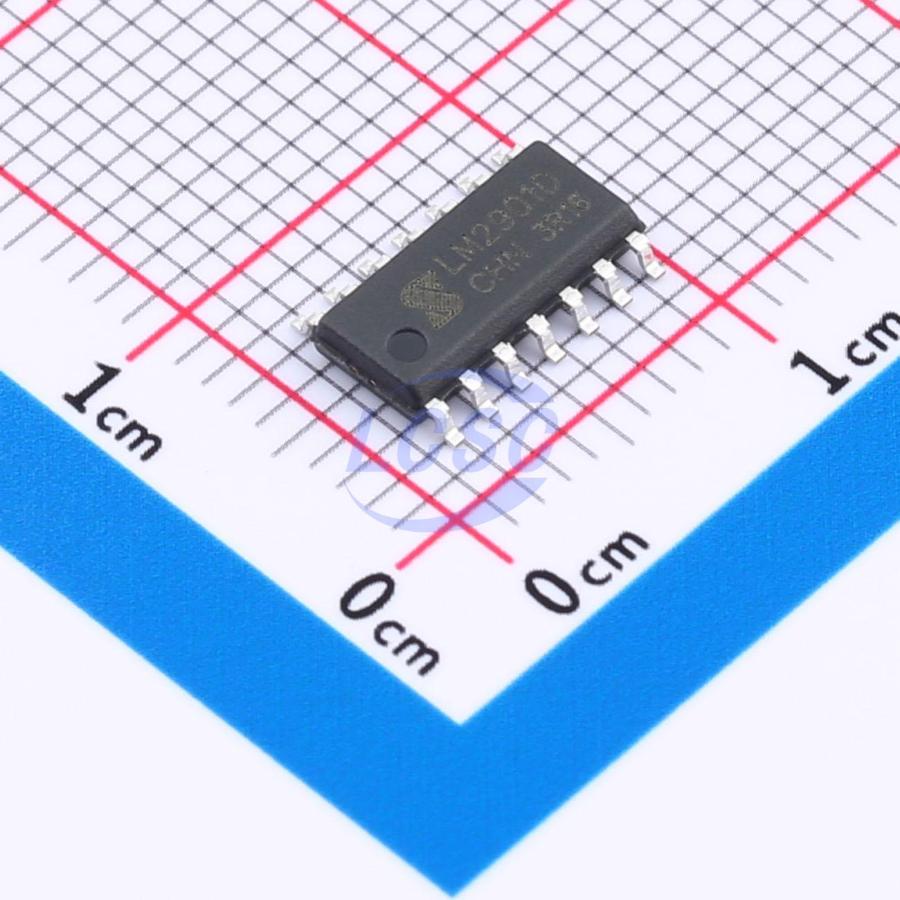

LM2901DR-JSM
2mV 25nA Four channels SOP-14 Linear Comparators RoHS
SOP-14ROHS CompliantActive
Four-channel differential comparator
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LM2901DR-JSM
- Store part #
- C17701701
- Package / case
- SOP-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,640 in stock
#C17701701
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.62 | ₹58.10 |
| 50+ | ₹10.23 | ₹511.50 |
| 150+ | ₹9.53 | ₹1,429.50 |
| 500+ | ₹9.01 | ₹4,505.00 |
| 2,500+ | ₹8.59 | ₹21,475.00 |
| 5,000+ | ₹8.37 | ₹41,850.00 |
5 × ₹11.62
₹58.10
excl. GST
₹68.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2901DR-JSM
₹58.10 for 5 + GST
Specifications
- Quiescent Current
- 800uA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -25℃~+105℃
- Dual Supply
- ±18V
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 25nA
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 5nA
- Response Time (tr)
- 1.3ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.258 g
Overview
LM2901 is a quad comparator IC primarily used in consumer and industrial electronics for level detection and low-level sensing. The LM2901 comes in an SOP-14 package and operates over a temperature range of -25°C to 105°C.
Key features
- Single or dual supply operation
- Low input bias current: 25nA (typical)
- Low input offset current: ±5.0nA (typical)
- Low output saturation voltage: 130mV
- TTL and CMOS compatible
