HANSCHIP semiconductorDatasheet (PDF)

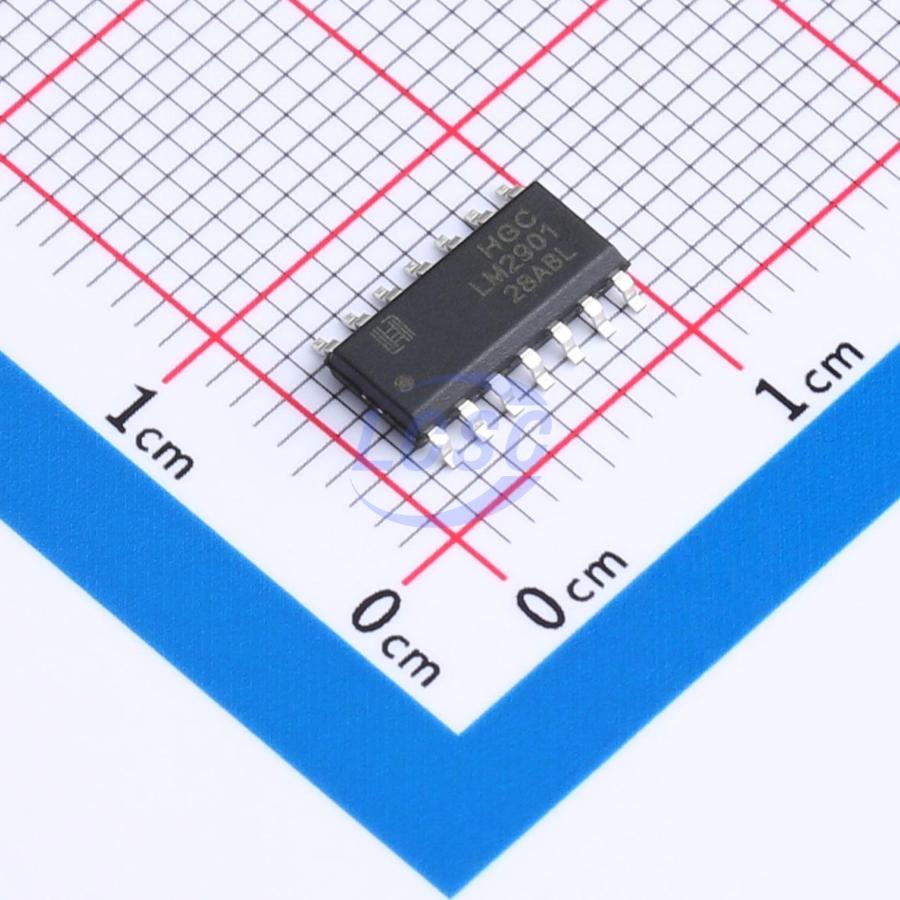

LM2901DRG
2mV 25nA Four channels SOP-14 Linear Comparators RoHS
SOP-14ROHS CompliantActive
Quad Comparator
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LM2901DRG
- Store part #
- C5145307
- Package / case
- SOP-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,350 in stock
#C5145307
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹7.82 | ₹39.10 |
| 50+ | ₹6.87 | ₹343.50 |
| 150+ | ₹6.39 | ₹958.50 |
| 500+ | ₹6.03 | ₹3,015.00 |
| 2,500+ | ₹5.45 | ₹13,625.00 |
| 5,000+ | ₹5.31 | ₹26,550.00 |
5 × ₹7.82
₹39.10
excl. GST
₹46.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2901DRG
₹39.10 for 5 + GST
Specifications
- Dual Supply
- ±18V
- Vos - Input Offset Voltage
- 2mV
- Quiescent Current
- 800uA
- Ib - Input Bias Current
- 25nA
- Output Mode
- CMOS;TTL
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Response Time (tr)
- 1.3ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.27 g
Overview
LM2901 is a quad comparator IC primarily used in consumer and industrial electronics for level detection and low-level sensing. Available in DIP-14, SOP-14, and TSSOP-14 packages.
Key features
- Single or dual supply operation
- Low input bias current: 25nA (typical)
- Low input offset current: ±5.0nA (typical)
- Low output saturation voltage: 130mV
- TTL and CMOS compatible
