HGSEMIDatasheet (PDF)

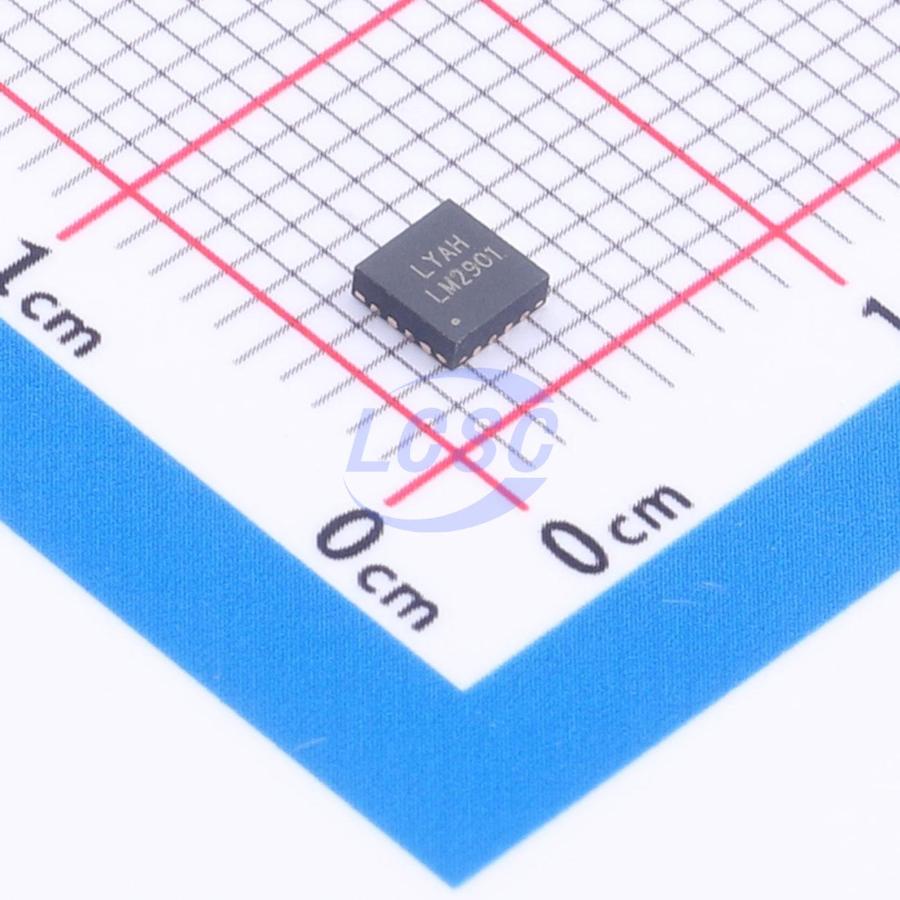

LM2901LQ/TR-HG
2mV 25nA 4 QFN-16(3x3) Linear Comparators
QFN-16(3x3)RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM2901LQ/TR-HG
- Store part #
- C53374695
- Package / case
- QFN-16(3x3)
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,165 in stock
#C53374695
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.67 | ₹73.35 |
| 50+ | ₹11.66 | ₹583.00 |
| 150+ | ₹10.15 | ₹1,522.50 |
| 500+ | ₹9.02 | ₹4,510.00 |
| 2,500+ | ₹8.11 | ₹20,275.00 |
| 5,000+ | ₹7.66 | ₹38,300.00 |
5 × ₹14.67
₹73.35
excl. GST
₹86.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
LM2901LQ/TR-HG
₹73.35 for 5 + GST
Specifications
- Dual Supply
- -16V~-1.5V;1.5V~16V
- Vos - Input Offset Voltage
- 2mV
- Quiescent Current
- 800uA
- Ib - Input Bias Current
- 25nA
- Output Mode
- CMOS;TTL
- Number of Channels
- 4
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 3V~32V
- Response Time (tr)
- 1.3ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.179 g
Overview
LM2901 is a quad comparator IC primarily used in consumer and industrial electronics for level detection and low-level sensing. Available in DIP-14, SOP-14, TSSOP-14, QSOP-16, and QFN-16 packages.
Applications
- Inverting comparator with hysteresis
- Logic driver
- Zero-crossing detector (single-supply application)
- Non-inverting comparator with hysteresis
- Square wave oscillator
- Zero-crossing detector (dual-supply application)
Key features
- Single or dual supply operation
- Low input bias current: 25nA (typical)
- Low input offset current: ±5.0nA (typical)
- Low output saturation voltage: 130mV
- TTL and CMOS compatible
