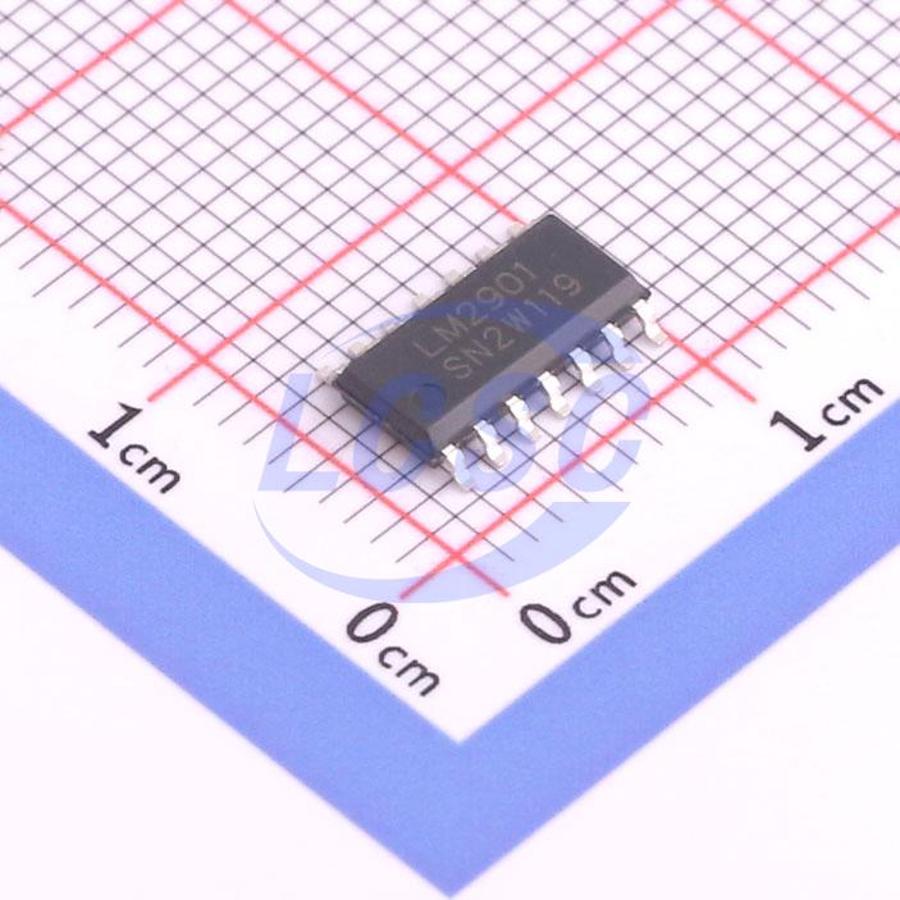

LM2901XP
800uV 10pA Four channels SOIC-14 Linear Comparators
General-Purpose High-Voltage Open-Drain Output Quad Comparators
- Manufacturer
- RUNIC
- Manufacturer part #
- LM2901XP
- Store part #
- C5372417
- Package / case
- SOIC-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,830 in stock
#C5372417
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.25 | ₹161.25 |
| 50+ | ₹21.37 | ₹1,068.50 |
5 × ₹32.25
₹161.25
excl. GST
₹190.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM2901XP
₹161.25 for 5 + GST
Specifications
- Dual Supply
- 1.65V~16V;-16V~-1.65V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 800uV
- Quiescent Current
- 180uA
- Ib - Input Bias Current
- 10pA
- Output Mode
- CMOS;TTL
- Number of Channels
- Four channels
- Propagation Delay Time
- 400ns
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 3.3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
The LM2901 is the quad comparators version, and the outputs can be connected to other open-collector outputs to achieve wired-AND relationships. It can operate from 3.3V to 32V, and have low power consuming 45μA (TYP) per channel. The LM2901 consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Quiescent current is independent of the supply voltage. The device is the most cost-effective solutions for applications where low offset voltage, high supply voltage capability, low supply current, and space saving are the primary specifications in circuit design for portable consumer products. The LM2901 is available in Green SOIC-14, TSSOP-14 packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- Hysteresis Comparators
- Factory Automation & Control
- Industrial Equipment
- Test and Measurement
- Cordless Power Tool
- Vacuum Robot
- Wireless Infrastructure
Key features
- Supply Range: +3.3V to +32V
- Low Supply Current 45μA (TYP) per channel at Vs = 5V
- Common-Mode Input Voltage Range Includes Ground
- Low Output Saturation Voltage
- Open-Drain Output for Maximum Flexibility
- SPECIFIED UP TO +125°C
- PACKAGES: SOIC-14(SOP-14)、TSSOP-14
