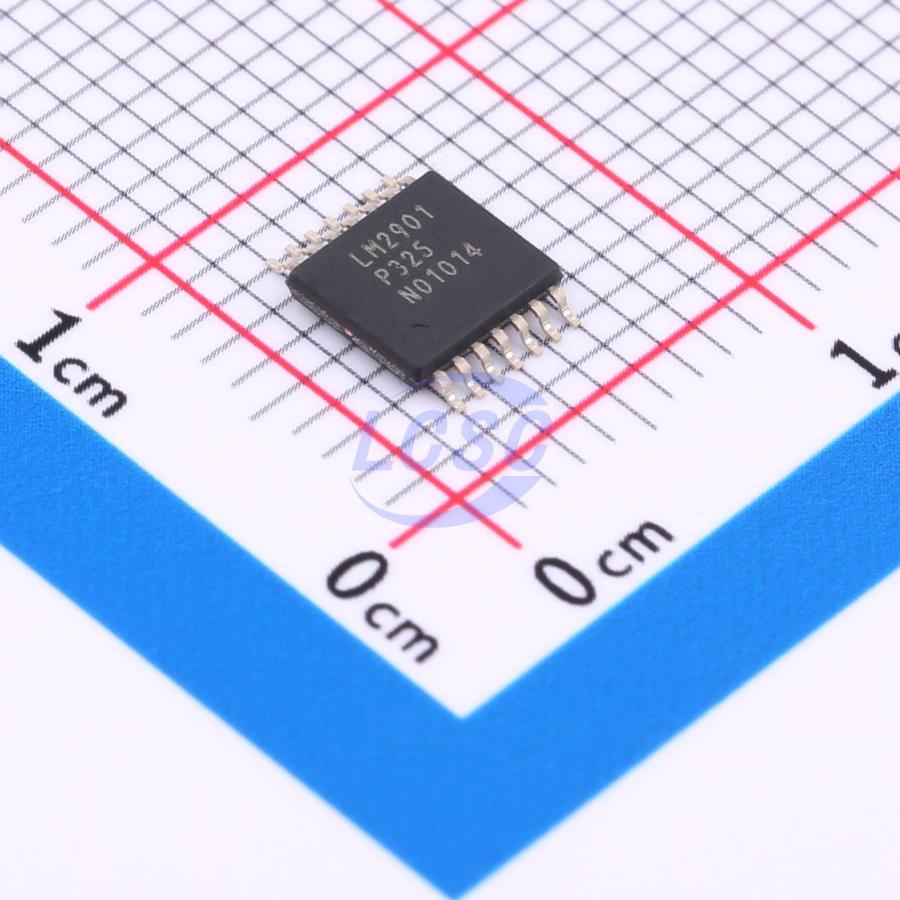

LM2901XQ-Q1
10mV 10pA Four channels TSSOP-14 Linear Comparators
General-Purpose High-Voltage Open-Drain Output Quad Comparators
- Manufacturer
- RUNIC
- Manufacturer part #
- LM2901XQ-Q1
- Store part #
- C5362571
- Package / case
- TSSOP-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,605 in stock
#C5362571
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.74 | ₹163.70 |
| 50+ | ₹21.68 | ₹1,084.00 |
5 × ₹32.74
₹163.70
excl. GST
₹193.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM2901XQ-Q1
₹163.70 for 5 + GST
Specifications
- Dual Supply
- 1.65V~16V;-16V~-1.65V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 10mV
- Quiescent Current
- 45uA
- Ib - Input Bias Current
- 10pA
- Number of Channels
- Four channels
- Propagation Delay Time
- 400ns
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 3.3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.47 g
Overview
The LM2901-Q1 is the quad comparators version, and the outputs can be connected to other open-collector outputs to achieve wired-AND relationships. It can operate from 3.3V to 32V, and have low power consuming 45μA (TYP) per channel. The LM2901-Q1 consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Quiescent current is independent of the supply voltage. The device is the most cost-effective solutions for applications where low offset voltage, high supply voltage capability, low supply current, and space saving are the primary specifications in circuit design for portable consumer products. The LM2901-Q1 is available in Green TSSOP-14 and SOIC-14(SOP14) packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- Hysteresis Comparators
- Factory Automation & Control
- Industrial Equipment
- Test and Measurement
- Cordless Power Tool
- Vacuum Robot
- Wireless Infrastructure
Key features
- Qualified for Automotive Applications
- AEC-Q100 Qualified with the Grade 1
- Supply Range: +3.3V to +32V
- Low Supply Current 45μA (TYP) per channel at Vs = 5V
- Common-Mode Input Voltage Range Includes Ground
- Low Output Saturation Voltage
- Open-Drain Output for Maximum Flexibility
- SPECIFIED UP TO ±125°C
- Micro SIZE PACKAGES: TSSOP-14, SOIC-14(SOP14)
