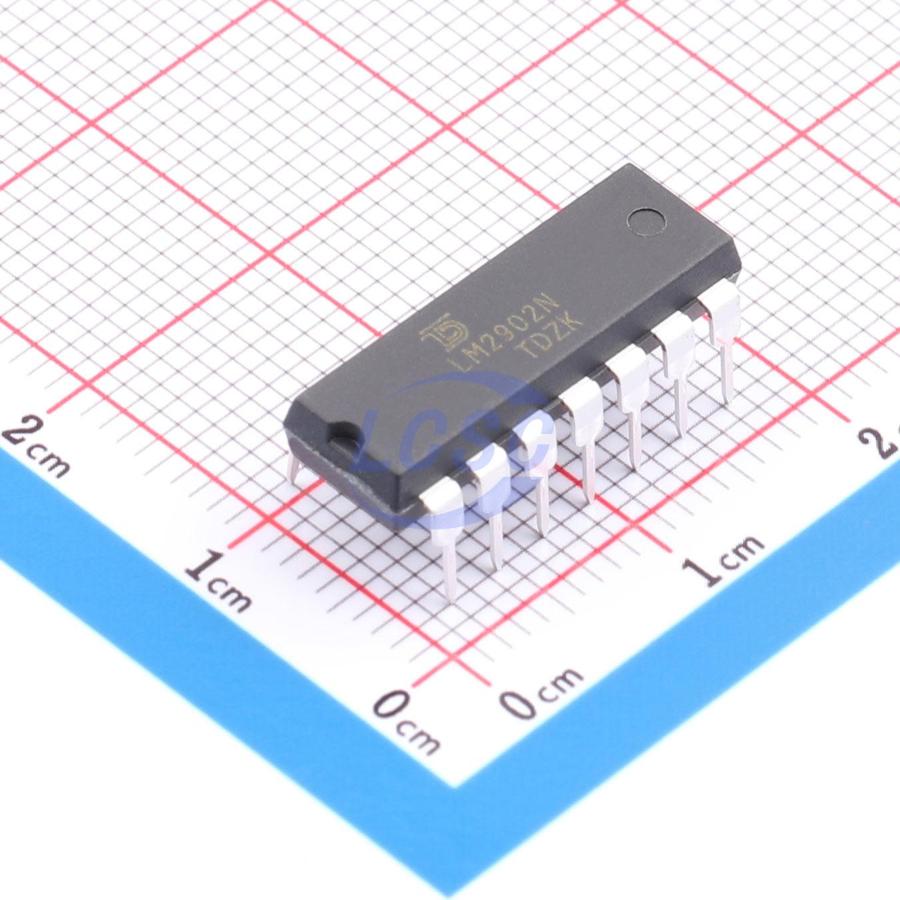

LM2902N-TUDI Tudi

LM2902N-TUDI

1MHz 250nA DIP-14 Audio Amplifiers

DIP-14RoHSActive

Manufacturer: Tudi
Manufacturer part #: LM2902N-TUDI
Store part #: C55214110
Package / case: DIP-14
Category: Audio Amplifiers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,000 in stock

#C55214110

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹26.02	₹130.10
50+	₹20.56	₹1,028.00
150+	₹18.22	₹2,733.00
500+	₹15.29	₹7,645.00
2,000+	₹14.00	₹28,000.00
5,000+	₹13.22	₹66,100.00

Quantity (min 5, multiples of 5)

5 × ₹26.02

₹130.10

excl. GST

₹153.52 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 25 per tube

LM2902N-TUDI

₹130.10 for 5 + GST

Specifications

Common Mode Rejection Ratio (CMRR): 70dB
Gain Bandwidth Product: 1MHz
Ib - Input Bias Current: 250nA
number of channels: 4
Operating Temperature: -40℃~+85℃
Input Offset Voltage Drift(Vos TC): 7uV/℃
Input Offset Current(Ios): 5nA
Single Supply: 3V~26V
Dual Supply: 1.5V~13V;-13V~-1.5V
Slew Rate: 500V/ms
Vos - Input Offset Voltage: 7mV
Noise density(eN): 35nV/√Hz@1kHz
Output Current: 40mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.837 g

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	LM324KAN-TUDI#C55214101Tudi · DIP-14	Tudi	DIP-14	200	₹20.90 · 200 in stock	View
	LM2902KN-TUDI#C55214109Tudi · DIP-14	Tudi	DIP-14	200	₹20.90 · 200 in stock	View
	LM224KN-TUDI#C55214107Tudi · DIP-14	Tudi	DIP-14	50	₹20.90 · 50 in stock	View
	LM324KN-TUDI#C55214102Tudi · DIP-14	Tudi	DIP-14	190	₹27.98 · 190 in stock	View
	LM224KAN-TUDI#C55214106Tudi · DIP-14	Tudi	DIP-14	50	₹27.98 · 50 in stock	View
