TDSEMICDatasheet (PDF)

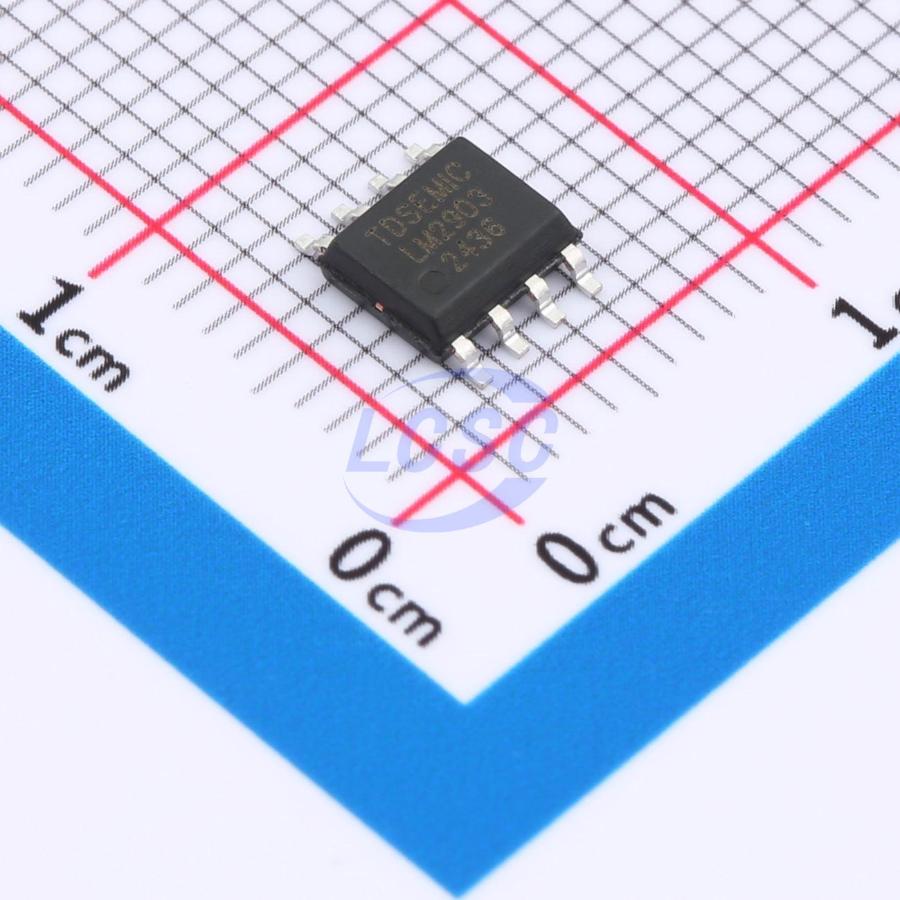

LM2903-TD
1mV 100nA 2 SOP-8 Linear Comparators RoHS
SOP-8ROHS CompliantActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- LM2903-TD
- Store part #
- C42421967
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,020 in stock
#C42421967
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.54 | ₹75.40 |
| 100+ | ₹5.98 | ₹598.00 |
| 300+ | ₹5.20 | ₹1,560.00 |
| 2,500+ | ₹4.62 | ₹11,550.00 |
| 5,000+ | ₹4.14 | ₹20,700.00 |
| 10,000+ | ₹3.90 | ₹39,000.00 |
10 × ₹7.54
₹75.40
excl. GST
₹88.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2903-TD
₹75.40 for 10 + GST
Specifications
- Features
- Fail-safe function
- Dual Supply
- ±16V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 1mV
- Quiescent Current
- 600uA
- Ib - Input Bias Current
- 100nA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 2V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.134 g
Overview
LM2903 is a dual voltage comparator with open-drain output, operating from either single or dual supply. It features excellent temperature stability and output short-circuit protection. It can be directly powered by a standard 5V supply in digital systems without requiring an additional power source.
Applications
- Voltage discriminator circuit
- Voltage conversion circuit
- Other application areas
Key features
- Single supply voltage range: 2V ~ 32V
- Low output saturation voltage: typical 0.1V @ IoL = 4mA
- Low power consumption: typical 0.6mA @ VCC = 5V
- Low input offset voltage: typical ±1mV
- Dual supply voltage range: ±16V
- Differential input voltage range: ±VCC
- Open-drain output
- Package types: DIP-8, SOP-8, MSOP-8
