HANSCHIP semiconductorDatasheet (PDF)

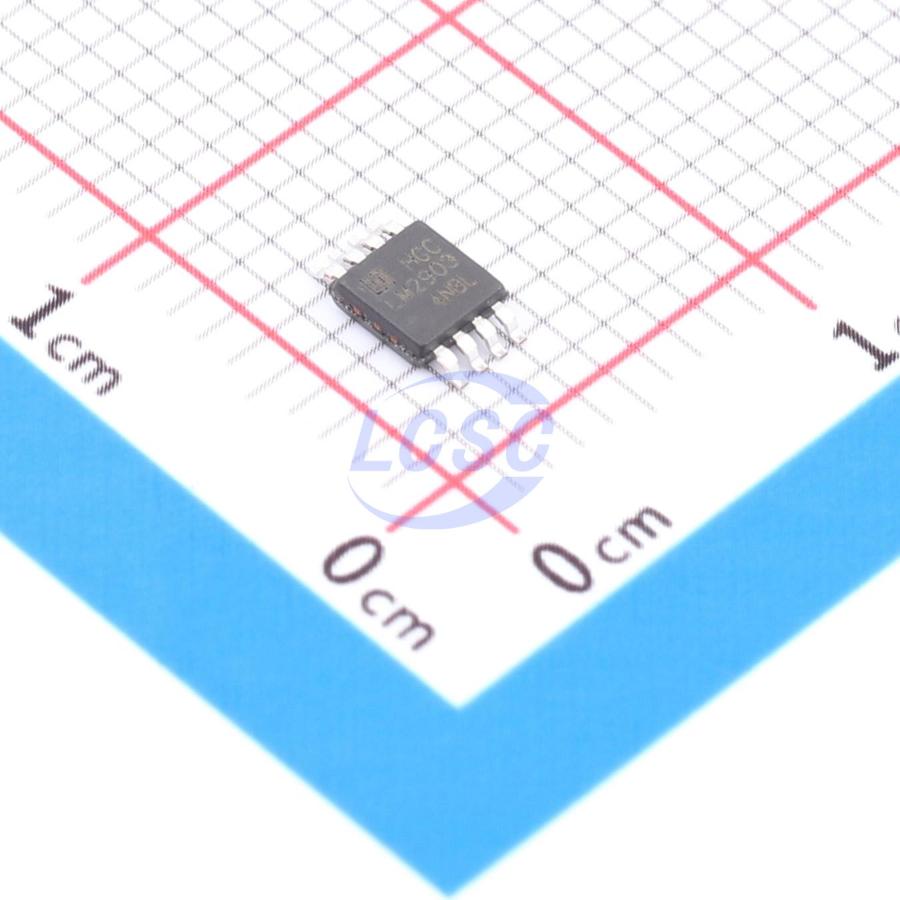

LM2903DGKRG
1mV 100nA 2 MSOP-8 Linear Comparators RoHS
MSOP-8ROHS CompliantActive
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LM2903DGKRG
- Store part #
- C42396708
- Package / case
- MSOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,820 in stock
#C42396708
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.64 | ₹86.40 |
| 100+ | ₹6.80 | ₹680.00 |
| 300+ | ₹5.87 | ₹1,761.00 |
| 3,000+ | ₹5.19 | ₹15,570.00 |
| 6,000+ | ₹4.63 | ₹27,780.00 |
| 9,000+ | ₹4.35 | ₹39,150.00 |
10 × ₹8.64
₹86.40
excl. GST
₹101.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM2903DGKRG
₹86.40 for 10 + GST
Specifications
- Features
- Fail-safe function
- Dual Supply
- ±16V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 100nA
- Quiescent Current
- 600uA
- Output Mode
- CMOS;TTL
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 2V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.08 g
Overview
LM2903 is a dual voltage comparator with open-drain output, operable from single or dual supply. It features excellent temperature stability and output short-circuit protection. Compatible with standard 5V digital system supplies — no additional power supply required.
Applications
- Voltage discriminator circuit
- Voltage conversion circuit
- Other application areas
Key features
- Single supply voltage range: 2V~32V
- Low output saturation voltage: typical 0.1V @ Iα₁ = 4mA
- Low power consumption: typical 0.6mA @ 2V~VCC = 5V
- Low input offset voltage: typical ±1mV
- Dual supply voltage range: ±16V
- Differential input voltage range: ±VCC
- Open-drain output
- Package: DIP-8, SOP-8, MSOP-8
