onsemiDatasheet (PDF)

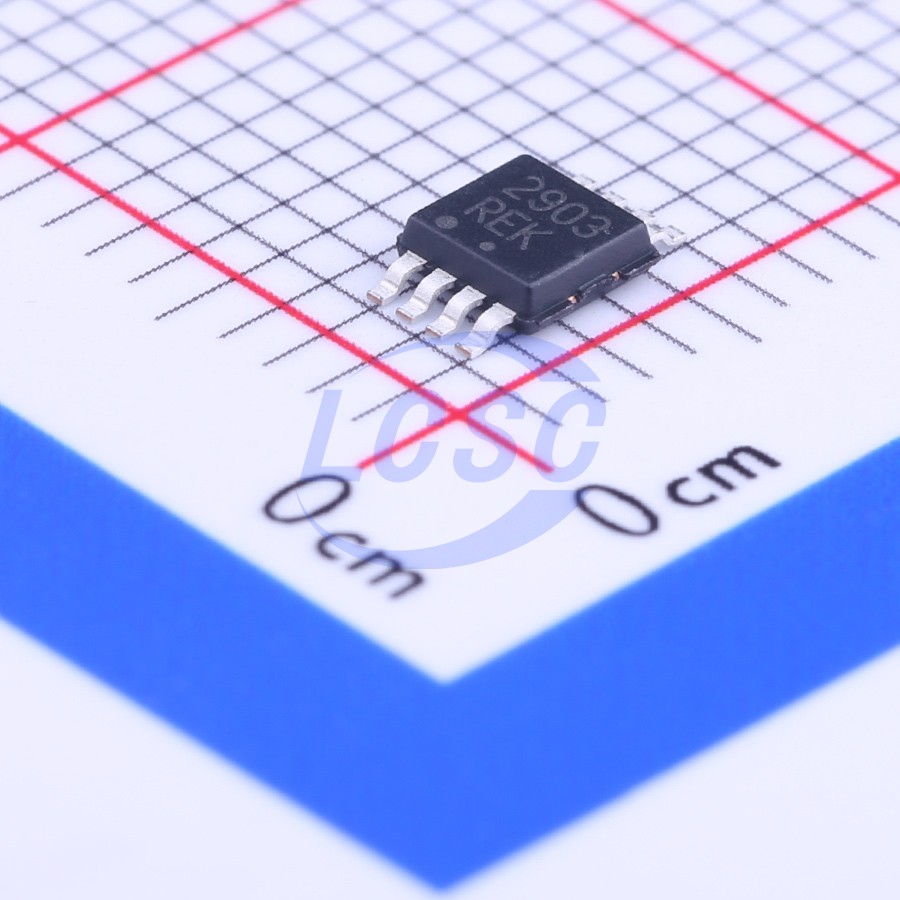

LM2903DMR2G
2 400uA 2mV MSOP-8 Comparators RoHS
MSOP-8ROHS3 CompliantActive
Low Offset Voltage Dual Comparators
- Manufacturer
- onsemi
- Manufacturer part #
- LM2903DMR2G
- Store part #
- C138472
- Package / case
- MSOP-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,810 in stock
#C138472
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.54 | ₹147.70 |
| 50+ | ₹22.90 | ₹1,145.00 |
| 150+ | ₹20.06 | ₹3,009.00 |
| 500+ | ₹16.50 | ₹8,250.00 |
| 2,500+ | ₹11.96 | ₹29,900.00 |
| 4,000+ | ₹11.02 | ₹44,080.00 |
5 × ₹29.54
₹147.70
excl. GST
₹174.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM2903DMR2G
₹147.70 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -40℃~+125℃
- Features
- ESD protection
- Dual Supply
- 1V~18V;-18V~-1V
- Ib - Input Bias Current
- 20nA
- Propagation Delay(tpd)
- 300ns
- Quiescent Current(Iq)
- 400uA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Response Time (tr)
- 1.5us
- Single Supply
- 2V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.107 g
Overview
The LM393 series are dual independent precision voltage comparators capable of single or split supply operation. These devices are designed to permit a common mode range−to−ground level with single supply operation. Input offset voltage specifications as low as 2.0 mV make this device an excellent selection for many applications in consumer, automotive, and industrial electronics.
Key features
- Wide Single−Supply Range: 2.0 Vdc to 36 Vdc
- Split−Supply Range: ±1.0 Vdc to ±18 Vdc
- Very Low Current Drain Independent of Supply Voltage: 0.4 mA
- Low Input Bias Current: 25 nA
- Low Input Offset Current: 5.0 nA
- Low Input Offset Voltage: 5.0 mV (max) LM293/393
- Input Common Mode Range to Ground Level
- Differential Input Voltage Range Equal to Power Supply Voltage
- Output Voltage Compatible with DTL, ECL, TTL, MOS, and CMOS Logic Levels
- ESD Clamps on the Inputs Increase the Ruggedness of the Device without Affecting Performance
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
