HGSEMIDatasheet (PDF)

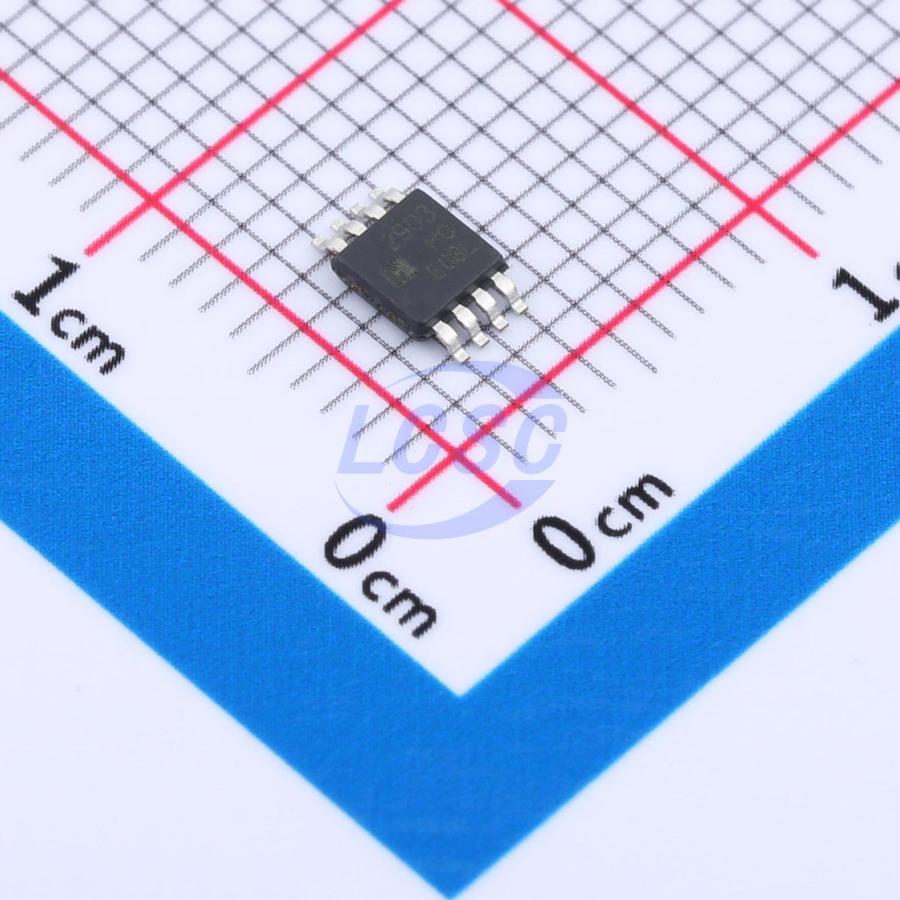

LM2903MM/TR
1mV 100nA 2 MSOP-8 Linear Comparators
MSOP-8RoHSActive
Dual voltage comparator with open-drain output
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM2903MM/TR
- Store part #
- C5116313
- Package / case
- MSOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,360 in stock
#C5116313
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.32 | ₹103.20 |
| 100+ | ₹8.30 | ₹830.00 |
| 300+ | ₹7.28 | ₹2,184.00 |
| 3,000+ | ₹6.43 | ₹19,290.00 |
| 6,000+ | ₹5.82 | ₹34,920.00 |
| 9,000+ | ₹5.52 | ₹49,680.00 |
10 × ₹10.32
₹103.20
excl. GST
₹121.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM2903MM/TR
₹103.20 for 10 + GST
Specifications
- Dual Supply
- ±16V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 100nA
- Quiescent Current
- 600uA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 2V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.17 g
Overview
LM2903 is a dual voltage comparator with open-drain outputs, operable from single or dual supplies. It features excellent temperature stability and output short-circuit protection. It can be powered directly from a standard 5V supply in digital systems without requiring an additional power source.
Applications
- Voltage discriminator circuits
- Voltage conversion circuits
- Other application areas
Key features
- Single supply voltage range: 2V~32V
- Low output saturation voltage: typical 0.1V @ IOL = 4mA
- Low power consumption: typical 0.6mA @ VCC = 5V
- Low input offset voltage: typical ±1mV
- Dual supply voltage range: ±16V
- Differential input voltage range: ±VCC
- Open-drain output
- Package options: DIP-8, SOP-8, MSOP-8, DFN-8
