HANSCHIP semiconductorDatasheet (PDF)

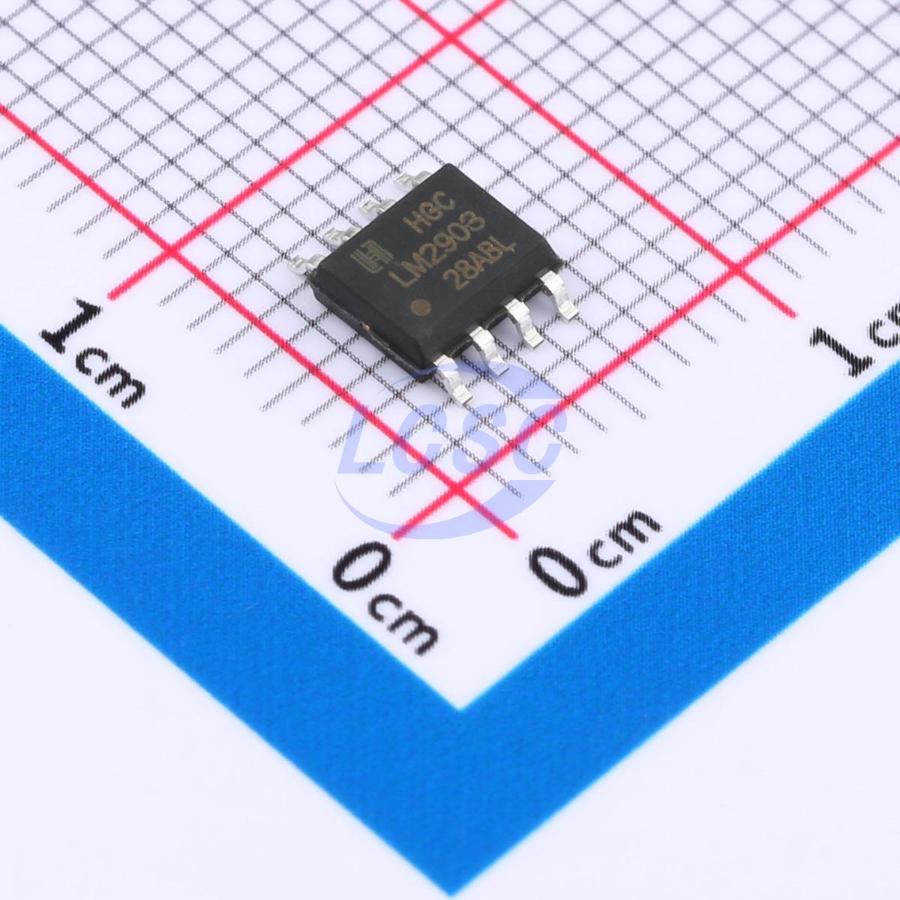

LM2903DRG
1mV 100nA 2 SOP-8 Linear Comparators RoHS
SOP-8ROHS CompliantActive
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LM2903DRG
- Store part #
- C5145305
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,600 in stock
#C5145305
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.89 | ₹78.90 |
| 100+ | ₹6.24 | ₹624.00 |
| 300+ | ₹5.42 | ₹1,626.00 |
| 2,500+ | ₹4.60 | ₹11,500.00 |
| 5,000+ | ₹4.11 | ₹20,550.00 |
| 10,000+ | ₹3.86 | ₹38,600.00 |
10 × ₹7.89
₹78.90
excl. GST
₹93.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2903DRG
₹78.90 for 10 + GST
Specifications
- Features
- Fail-safe function
- Dual Supply
- 16V
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 100nA
- Quiescent Current
- 600uA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 2V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.29 g
Overview
LM2903 is a dual voltage comparator with open-drain output, supporting single or dual supply operation. The device offers excellent temperature stability and integrates output short-circuit protection. It can be directly powered by the standard 5V supply in digital systems without requiring an additional power source.
Applications
- Voltage discriminator circuits
- Voltage conversion circuits
- Other application areas
Key features
- Single supply voltage range: 2V～32V
- Low output saturation voltage: typical 0.1V @ IOL=4mA
- Low power consumption: typical 0.6mA @ VCC=5V
- Low input offset voltage: typical ±1mV
- Dual supply voltage range: ±16V
- Differential input voltage range: ±VCC
- Open-drain output
- Package: DIP-8, SOP-8, MSOP-8
