GRDatasheet (PDF)

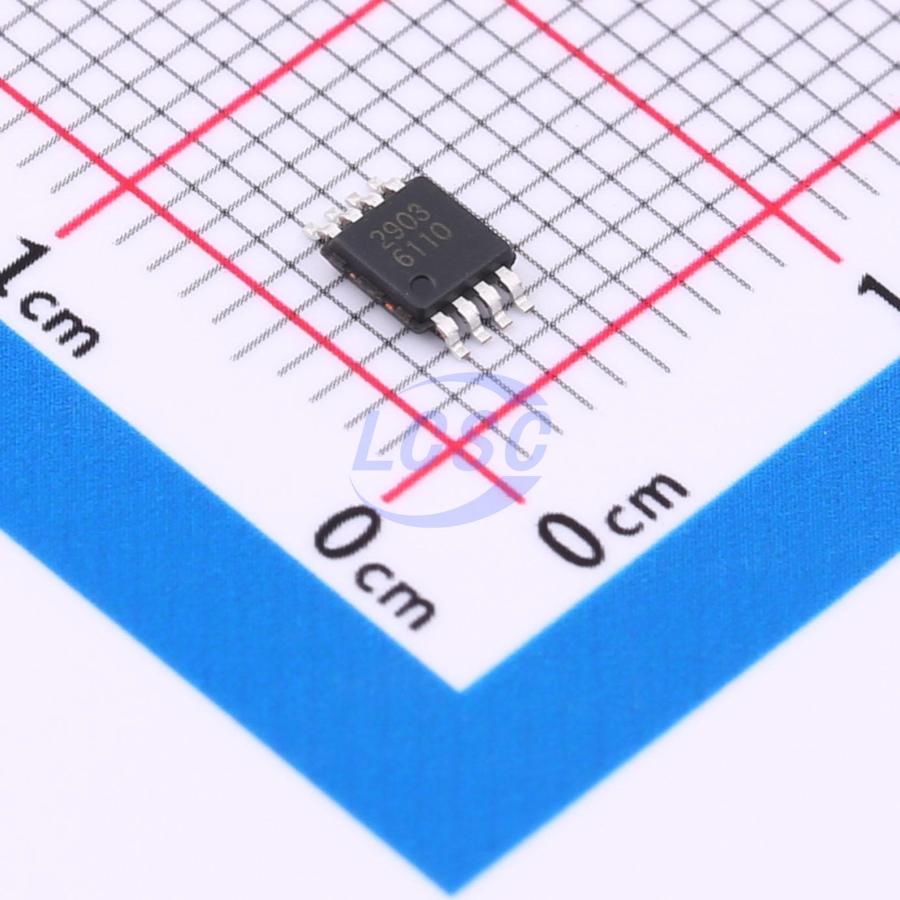

LM2903MS08ARDQ
1mV 100nA 2 MSOP-8 Linear Comparators
MSOP-8RoHSActive
Dual Differential Comparators
- Manufacturer
- GR
- Manufacturer part #
- LM2903MS08ARDQ
- Store part #
- C46527063
- Package / case
- MSOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,910 in stock
#C46527063
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.94 | ₹89.40 |
| 100+ | ₹7.06 | ₹706.00 |
| 300+ | ₹6.14 | ₹1,842.00 |
| 1,000+ | ₹5.44 | ₹5,440.00 |
| 4,000+ | ₹4.87 | ₹19,480.00 |
| 8,000+ | ₹4.59 | ₹36,720.00 |
10 × ₹8.94
₹89.40
excl. GST
₹105.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM2903MS08ARDQ
₹89.40 for 10 + GST
Specifications
- Dual Supply
- -16V~16V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 100nA
- Quiescent Current
- 900uA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 2V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.151 g
Overview
LM2903 contains two independent voltage comparators designed to operate from a single supply over a wide voltage range. Dual supply operation is also possible. Current consumption is independent of the supply voltage. The outputs can be connected to other open-collector outputs to realize wired-AND logic. LM2903 can operate from the standard 5V supply used in digital systems, eliminating the need for an additional power supply.
Key features
- Wide single-supply voltage range: 2V to 32V
- Low output saturation voltage: typical 0.1V @ IOL = 4mA
- Low power consumption: typical 0.9mA @ VCC = 5V
- Low input offset voltage: typical ±1mV
- Dual-supply voltage range: ±16V
- Differential input voltage range: ±VCC
- Open-collector output
- DIP8/SOP8 package
